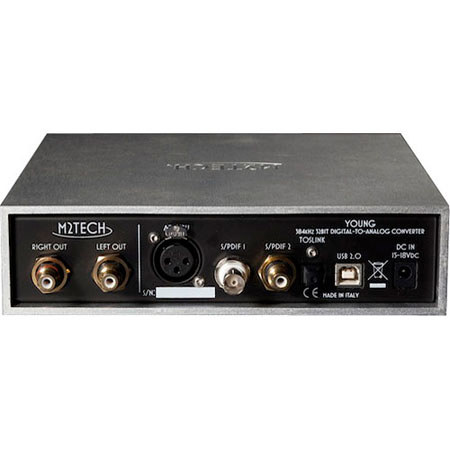

M2Tech Young 384 kHz/32 Bit High Resolution D/A Converter, 10-20kHz Frequency Response

See all M2Tech items
SKU: M2EYOUNG MFR: E-YOUNG
M2Tech E-YOUNG: Picture 1 thumbnail M2Tech E-YOUNG: Picture 2 thumbnail
Free Shipping

See all shipping options

Special Order Item - This is a special order item that is Non Cancelable and Non Returnable. We Charge you when you place your order. Approximate arrival at Adorama 1-3 Days from date of order. learn more

Our Price

$1,399.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About M2Tech E-YOUNG

The M2Tech Young 384 kHz/32 Bit High Resolution D/A Converter is a high performance, very high value-for D/A converter capable of handling up to 384kHz sampling rate and 32 bits resolution (USB input). It features a high speed asynchronous USB input based on the hiFace technology, further developed to allow for higher sampling rates.

A comprehensive input set (S/PDIF on RCA and BNC, AES/EBU on XLR and optical on Toslink) provide great connection versatility. A high performance oversampling filter, custom-made on a programmable logic device (FPGA) implements minimum-phase filters optimized for sound quality which allow for a very low noise floor. A 32-bit D/A integrated circuit is used in a non-conventional mode to allow for 768kHz internal operation.

The synergy between the DAC IC and the custom oversampler allows for exceptionally low noise floor and THD. The output buffer uses a special operational amplifier with very low noise and THD thanks to its class-A biased output stage. The small size and stylish look of the Young allow for an uninvasive placement in every living space.

M2Tech E-YOUNG Specifications

Sampling Frequencies
44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz
Resolution
16 up to 24 bit (S/PDIF, AES/EBU, optical), 16 to 32 bit (USB)
Frequency response
10-20kHz +0.1/-0.5dB (fs = 44.1kHz)
10-90kHz +0.1/-0.1dB (fs=384kHz)
SNR
121dB (A weighted, 192kHz, 24 bits, 20kHz bandwidth)
THD+N
0.0003% (192kHz, 24 bits)
Inputs
2 x S/PDIF (RCA and 75 Ohms BNC)
1x AES/EBU (XLR)
1x optical (Toslink)
1x USB (USB female Type B)
Output
single ended on RCA female
Output voltage
2,65Vrms (7.5Vpp @ 0dBFS)
Supply voltage
15V-18VDC
Supply current
240mA@15V
Dimensions (W x H x D)
200 x 50 x 200mm / 7.87 x 1.96 x 7.87"
Weight
1Kg / 2.20 lbs
