Marshall Electronics

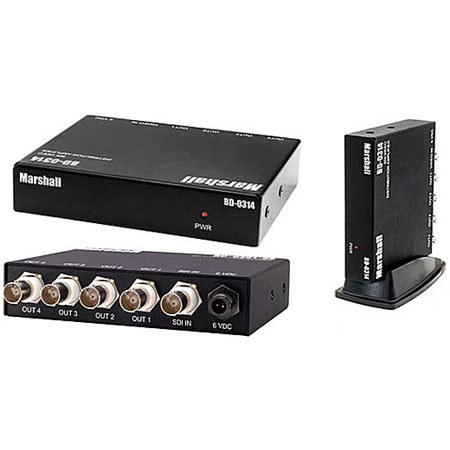

Marshall Electronics Serial Digital Distribution Amplifier.

SKU: MARBD0314 MFR: BD0314
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable. We Charge you when you place your order. Approximate arrival at Adorama 1 - 2 Weeks from date of order.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$299.00 List Price

Our Price

Free Shipping
Add to Wishlist

About this item

• Marshall's BD-0314 Serial Digital Distribution Amplifier is a cost effective solution for a wide range of applications. This model can be used for any application requiring distribution of SDI signals. All Processing and Distribution modules include power supply and owners manual. An optional base holder (V-CB1) is available for use in desktop applications.

What's Included With This Item

  • Power Supply
  • Owners Manual

Key Features

  • Use for distribution of SDI signals 143Mbs to 540Mbs
  • Self terminating 75ohm BNC SDI input
  • 4 reclocked and equalized BNC SDI Outputs
  • Power indicator on front panel
  • All connections in rear of module
  • Install in rack or use on the desktop
  • Can also be used as a signal repeater
  • Includes power supply

Technical Specs

Signal Input BNC connection of composite video - PAL or SMPTE
Signal Output 4 BNC
Frequency Response 5 to 7 Mhz
K factor <1%
Signal to Noise >60 db
Dynamic gain/phase <1% / <1°
Cable Length 600' max using Belden 8281 or equivalent
Power required 6V D.C. supplied from external power supply (Included)
Dimensions 4.75"W x 3.75"D x 1.0"H
Weight 0.55 Lbs
