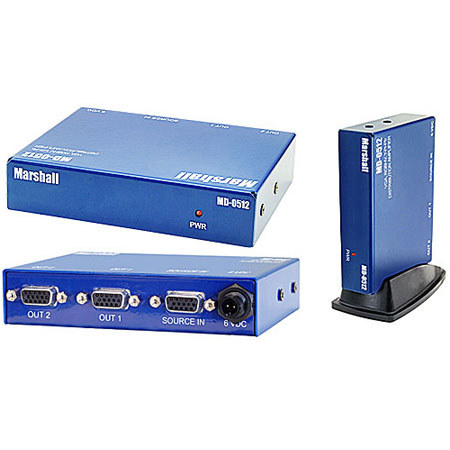

Marshall Electronics Multi-format 1x2 VGA Distribution Amplifier.
What's Included With This Item:
- Power Supply
- Users Guide
- Rack Mount Brackets
- Desktop Footpads
• The MD-0512 is a multiformat 1 x 2 distribution amplifier, with signal bandwidth up to 350 MHz. This module can be used with VGA, SVGA, XGA, UXGA signals. An optional HD15 to 5 BNC cable (RGB-5HD15-X) can be used for RGBHV, Y-Pr-Pb, YUV, RGB, and composite signals.
Supports screen formats up to 1920 x 1080. An optional base holder (V-CB1) and BNC Breakout Cables (RGB-5HD15-X) are available for use in desktop applications. The unit includes power supply (Model V-PS6-1.2A), Users Guide, Rack Mount Brackets and Desktop footpads.
|Signal Input||HD-15 (VGA, SVGA, XGA, UXGA, RGBHV, YUV, Composite)|
|Signal Output||2 HD-15|
|Frequency Response||10 to 350 MHz|
|Signal to Noise||>70 db|
|Dynamic gain/phase||<1% / <1°|
|Cable Length||Cable Length, Y/C Delay: 250' (<3%/2°)|
|Power required||6 V D.C. supplied from external supply|
|Dimensions||4.75"W x 4.125"D x 1.0"H|
