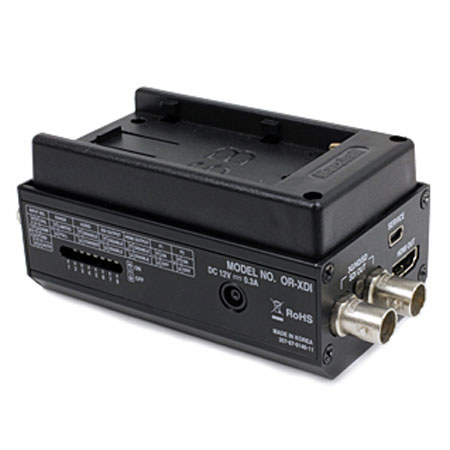

Marshall Electronics Battery-Powered 3G-SDI to HDMI Cross Converter with JVC Battery Mount

See all Marshall Electronics items
SKU: MARORXDIJM MFR: OR-XDI-JM
Free Shipping

See all shipping options

In Stock Online - Usually ships within 2-4 Days learn more

Made in USA

Our Price

$803.85
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Marshall Electronics

The Marshall Electronics Battery-Powered 3G-SDI to HDMI Cross Converter (JVC) is used to convert input signals between an HDMI and a 3G-SDI source with audio for distribution over 2 output ports. Accepting input from a 3G-SDI source, it can be used to provide signals to an HDMI source while simultaneously supplying the same input through the 3G-SDI output port. Featuring automatic input video format detection, the converter allows automatic input port switching of the signal to their respective output ports.

With a built-in SD format interlacer, the Portable Battery-Powered 3G-SDI to HDMI Cross Converter supports 480p to 480i conversion required for DSLR while recording. Including a JM (JVC) battery plate, the cross converter can be used with a 7.2V or a 14.4V battery for operation. In addition, it also includes an EIA 12V jack that is used to power the unit via a power adaptor.

The Portable Battery-Powered 3G-SDI to HDMI Cross Converter comes with an 8-position piano switch for input port selection and power save and features LED indicators which indicate speed and health of the connection. A USB service port is also included for future upgrade of the converter. The converter is housed in a rugged metal alloy case and includes 1/4-20 dual size mounting holes.

Marshall Electronics Features

  • Used to convert input signals between an HDMI and a 3G-SDI source with audio for distribution over 2 output ports
  • Accepts input from 3G-SDI / HDMI source
  • Simultaneous Output on both output ports
  • Automatic input video format detection
  • Automatic input port switching
  • Built-in SD format interlacer
  • Supports 480p to 480i conversion required for DSLR while recording
  • Built-in color bar test pattern generator
  • Includes a JM battery plate
  • Can be used with a 7.2V battery for operation
  • EIA 12V jack - used to power the unit via a power adaptor
  • 8-position piano switch - for input port selection and power save
  • 4-pin XLR 12VDC Input available as an option
  • LED indicators - indicate speed and health of the connection
  • USB service port is included for future upgrade for the converter
  • Housed in a rugged metal alloy case
  • Includes 1/4-20 dual size mounting holes
  • Ideal for any director, camera operator, or production video village

Marshall Electronics Specifications

Input Formats Supported
480i60, 575i50, 480p60, 576p50, 720p60, 50, 30, 25, 24, 1080i60, 50, 1080p60, 50, 30, 25, 24
Output Formats Supported
480p60, 576p50, 720p60, 50, 30, 25, 24, 1080i60, 50, 1080p60, 50, 30, 25, 24
Audio Formats Supported
48KHz PCM Audio up to 8 channels from HDMI or embedded SDI
Power consumption
3W (typ)
Power
5.5VDC-16VDC
Case
Alloy
Voltage
7.2
Dimensions (W x D x H)
3.91 x 2.28 x 1.38" (9.93 x 5.79 x 3.5 cm)
Weight
0.475 lb (215 g) (without battery)
