Meopta 3-12x56mm Meostar R1 Series Riflescope, Matte Black Finish with McWhorter MV Reticle, 30mm Tube

Meopta
SKU: ME557160 MFR: 557160

About Meopta 3-12x56 Rifle Scope

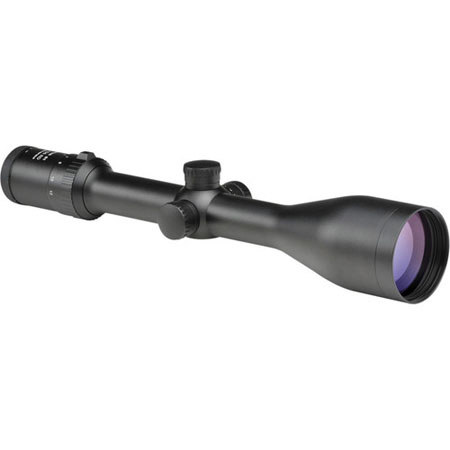

The Meopta MeoStar R1 3-12x56 First Plane McWhorter MV Reticle Riflescope features a MW MV reticle, combining a fully multicoated 30mm optical path with a nitrogen-filled aluminum housing to create a close to mid-range zoom optic that is built for dependable low light and weatherproof performance. This scope's one-piece housing is machined from aerospace aluminum and anodized for increased corrosion resistance. Each lens is multicoated with Meopta's proprietary MB5501 anti-reflective coating to maximize light transmission and enhance image contrast throughout the zoom range.

This MeoStar series scope is equipped with a McWhorter MV (MW MV) reticle etched into the first focal plane. The reticle pattern has a fine crosshair with four medium-weight posts as well as ranging subtensions and bullet drop compensation lines optimized for a .308 round with a .508 ballistic coefficient at 3000 ft/sec. A first plane position makes MW MV reliable at any position along the zoom range.

Complementing the durable housing and high-transmission optics, the MeoStar 3-12x56 scope features MeoTrack II posi-click windage and elevation turrets that provide tactile and audible feedback that confirms the 1/4 MOA impact point corrections without requiring the observer to take their eye off the field of view. These turrets also employ an improved erector that uses positive resistance to ensure precise adjustments and maintain zero even when subjected to recoil from heavy caliber rifles.

Further equipping this MeoStar riflescope for years of quality service, the exposed surface of objective and ocular lenses are multicoated with a MeoShield abrasion resistant coating that protects against light scratches and helps moisture roll off the lens surface. The final elements in the MeoStar optical path belong to the MeoQuick fast-focus eyepiece, which enables rapid focus adjustment in addition to rendering edge-to-edge sharpness and a comfortable 3.3" eye relief.

Meopta 3-12x56 Rifle Scope Features

  • Optical Performance: Fully multicoated optics, MeoBright 5501 anti-reflective coatings
  • Optical Performance: First plane MW MV reticle with holdover lines set for .308 caliber ballistics
  • 1/4 MOA impact point correction
  • 43 MOA impact point correction range
  • MeoTrack II windage/elevation turrets with tactile feedback
  • MeoQuick fast focus eyepiece with ±3 diopter correction
  • Construction: Nitrogen-filled fogproof/waterproof housing
  • Construction: Aerospace aluminum chassis with ELOX anodized hard coat
  • Construction: MeoShield abrasion resistant multicoating on exposed lens surfaces
  • Construction: MeoTrack II erector provides positive resistance for maintaining zero
  • Export of this product outside of the United States of America is not allowed and is controlled by the US Department of State

Meopta 3-12x56 Rifle Scope Specifications

Magnification
3.0-12.0x
Reticle
First Plane, McWhorter MV
Angle of View
6.3-2.0deg.
Field of View
33 - 11' (10 - 3.3 m) at 100 yd
Parallax Correction
No
Diopter Correction
+/- 3
Daylight Transmission
93%
Impact Point Correction
1/4 MOA
Maximum Windage/Elevation Adjustment
43 MOA
Objective Lens Diameter
56mm / 2.20"
Main-Tube Diameter
30mm / 1.18"
Eye Relief
3.5-3" / 88.9-76.2mm
Exit Pupil Diameter
15.2-4.7mm / 0.59-0.18"
Length
14.3" / 363.2mm
Dimensions
5.94x1.93x2.95" / 150.8x49.02x74.93mm
Weight
21.9 oz / 620.8 g
