Manhattan LCD HD5-S 5.6in Field Monitor, Sony Plate
Manhattan LCD

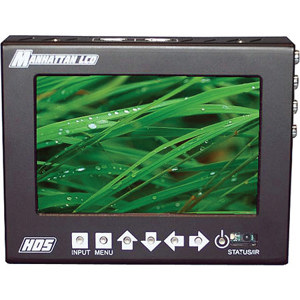

Manhattan LCD HD5-S 5.6" Field Monitor with Sony Battery Plate, 1280x800 Native Resolution, 500:1 Contrast Ratio, 300 cd/m2 Brightness

SKU: MHHD5S MFR: HD5-S
What's Included
What's Included With This Item:
  • Manhattan LCD HD5-S 5.6 inch Field Monitor with Sony Battery Plate
  • 110V/240V AC Power Adapter
  • IR Remote Control
  • User Manual CD
  • Manhattan LCD 1 Year Warranty
Write a Review
Ways to Save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$609.00
Free Shipping (USA)
Qty:

Add to Wishlist
OverviewFeaturesTech Specs
Its never too late...Click by 8! Same day shipping.

About the Manhattan LCD HD5-S

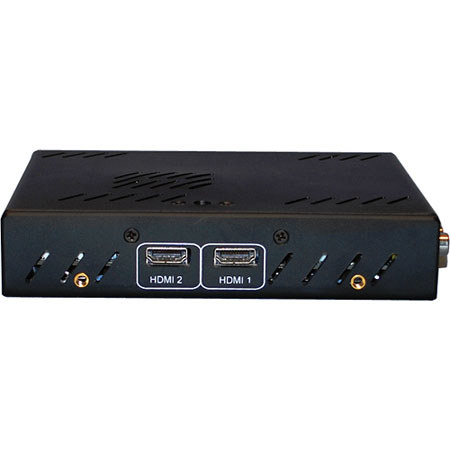

The HD5-S 5.6" Field Monitor from Manhattan LCD is an LCD display with high enough resolution to display 720p natively - and it's light enough to mount directly to your camcorder or DSLR. The 1 lb (0.5 kg) monitor has a native resolution of 1280 x 800 and displays video formats from SD to HD, 480i to 1080p - including PAL and NTSC as well as most imaginable HD and computer formats via component, VGA and dual HDMI inputs. (The display also has a composite video input for 480i.)

The HD5 includes a special aspect ratio for the Canon 50D, 60D, 5D, T2I and T3I cameras. These cameras are becoming very popular however are difficult to use with standard field monitors. The camera's preview and record mode require a custom aspect ratio to display the picture without distortion. The HD5's "DSLR Rec" is an automatic aspect ratio correcting Canon DSLR record and preview modes providing a proper picture.

The 5.6" HD5 field monitor includes a special aspect ratio for the Canon 50D, 60D, 5D, T2I and T3I cameras. These popular cameras are difficult to use with standard field monitors, as the cameras' preview and record modes require a custom aspect ratio to display the picture without distortion. The monitor's "DSLR Rec" is an automatic aspect ratio that corrects Canon DSLR record and preview modes, providing a proper picture.

The monitor's False Color feature transforms video brightness to a colored scale that helps the operator in setting a camera's exposure. As the camera's exposure is adjusted, the picture changes colors based on brightness levels. Once this setting is locked in, you will know you are getting suitable exposure without expensive equipment.

Peaking (focus assist) shows you the position of the camera's focal plane. As you rack the focus back and forth you can see objects come in and out of focus by way of a bright white outline. Other convenient features include upgradeable firmware, NTSC/PAL auto-detect and two 1/4"-20 mounting threads - one on top, one on bottom, for increased versatility.

Other convenient features include upgradeable firmware, NTSC/PAL switchability (with auto-detect) and two 1/4"-20 mounting threads. An optional sun hood is also available. This version of the monitor includes a plate for Sony L/M series batteries.

Manhattan LCD HD5-S Includes

  • Manhattan LCD HD5-S 5.6 inch Field Monitor with Sony Battery Plate
  • 110V/240V AC Power Adapter
  • IR Remote Control
  • User Manual CD
  • Manhattan LCD 1 Year Warranty

Manhattan LCD HD5-S Features

  • The monitor's LCD controller has a firmware-upgradable processor chipset from industry leader Pixelworks. The HD5 is software-upgradable so you can take advantage of new features being added as the software evolves
  • The monitor is completely digital, from the TFT screen to the driver board. High-speed triple ADC supports NTSC/PAL/SECAM, including all substandard. There's an adaptive five-line comb filter and it processes at 1 billion colors
  • For viewing on a moving camera at ever-changing and awkward angles, the screen's super-wide 170deg. (left/right) x 170deg. (up/down) viewing angles leave very little room for improvement
  • Advanced picture and image controls (refer to Specifications)
  • 1:1 pixel mapping for more precise focus, plus 16:9, 4:3, Fill to Aspect and Fill All
  • Over/under-scan, aspect guides, screen markers
  • Supports 480i/480p/576i/576p/720p/1080i/1080p at 24/25/30/50/60 Hz
  • HDMI colorspace supports YCbCr 4:4:4, YCbCr 4:2:2 and RGB 4:4:4 at 8/10/12-bit

Manhattan LCD HD5-S Specifications

LCD Size 5.6 in
Resolution 1280 x 800 (WXGA)
Contrast Ratio 500:1
Brightness 300 cd/m2
Response Time 25 ms (Full On/Off)
Viewing Angle 170deg. (Left/Right) x 170deg. (Up/Down)
Inputs: HDMI x1 Supports 1080p, 1080i, 720p, 576p, 576i, 480p, 480i; HDCP
Inputs: VGA x1 Supports 640 x 480, 800 x 600, 1024 x 768, 1280 x 720, 1280 x 768, 1280 x 1024, 1366 x 768, 1920 x 1080
Inputs: Component x1 1080p, 1080i, 720p, 576p, 576i, 480p, 480i
Inputs: Composite x1 Supports 576i, 480i
Picture Controls Brightness, Contrast, Saturation, Tint, Sharpness, Gamma, RGB Color Temperature, H/V Position, Over/Under Scan, Auto, Freeze Frame, PIP, PBP, On Screen Display, OSD Timer, Sleep Timer, False Color, Peaking, Blue Gun, Monochrome, Screen and Aspect Markers, HDMI Color Space (Auto, 709, 607, RGB)
Presets 12 User-Defined (3 per input)
Special Features Displays Red Camera, Canon 7D, Canon 5D, Canon 60D, Canon T2I, Canon T3I, Panasonic GH2, Canon DSLR Record & Playback Automatic Aspect Ratio
Aspect Ratios Fill All, 1:1 Pixel Mapping, Fill Aspect, 4:3, 16:10, 15:9, 16:9, 1.85:1, 2.35:1
Remote Control IR, remote included
Power Requirements 12V DC, 1300mA
Power Consumption <20W
Mounting 2 x 1/4" 20 threads at bottom and top (for upside-down mounting)
Buttons Brushed stainless steel
Power Connector 12V DC 5.5 x 2.1mm Barrel Connector
Dimensions (H x W x D) 4.8 x 6.4 x 1.3" (12.2 x 16.2 x 3.4 cm)
Weight 1 lb (0.45 kg)
