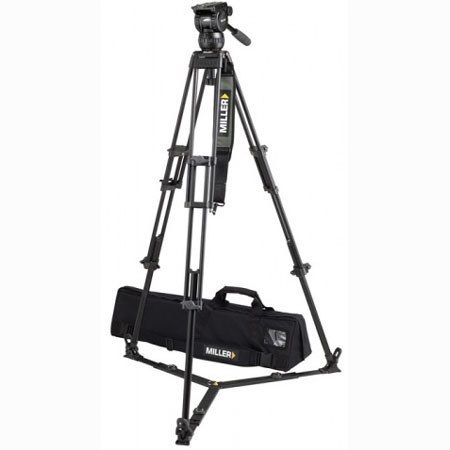

Miller 1827 Compass 15 System w/Fluid Head, Toggle 2-Stage Aluminum Tripod
See all Miller items

Miller 1827 Compass 15 Tripod System, Includes Compass 15 Fluid Head, Toggle DS 2-Stage Aluminum Tripod, Ground Spreader and Case

SKU: MI1827
(1)

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2016-09-14T11:22:44

Rated 5 out of 5

No comparison

I've used a lot of tripods and this is by far the best setup I've used for light to medium sized cameras. The Fluid head is silky smooth with plenty of drag flexibility for both pan and tilt. I wish the camera plates weren't ($) each. But that may be my only complaint. The sticks are rock solid with almost no flex. They also go very tall and very close to the ground. Great setup. I own 2 now.

Keith T.

Miller Compass 15 Specifications

  • Material

    Aluminum

  • Construction

    2-Stage

  • Maximum Height:

    1730 mm (68.1 in)

  • Minimum Height:

    560 mm (22 in)

  • Mounting Standard:

    75mm ball levelling

  • Payload Capacity:

    10.00 kg (22 lbs)

  • Payload Range:

    2-10 kg /4.4-22 lbs

  • Transport Length:

    860 mm (33.9 in)

  • Weight:

    7.80 kg (17.2 lbs)

About Miller Compass 15

The Miller 1827 Compass 15 2-Stage Alloy system combines the Compass 15 fluid head and cost-effective yet extremely stable 420G Toggle tripod with ground spreader to provide professional performance for the latest generation of lightweight HDV/DVCAM/XDCAM/P2HD and DSLR cameras.

The Compass 15 is a versatile compact 75mm fluid head suitable for cameras and configurations payloads up to 22lbs (10kg). The advanced precision fluid drag and counterbalance systems operated by slim in line radial ring controls result in quicker and easier set up.

With an extended 5+0 position fluid drag system employing smooth start and soft stop technology and 4 counterbalance settings plus 60mm camera plate balance travel, the Compass 15 offers a fast reliable set up you can trust and is versatile enough to use over a wide array of camera configurations. It is built to deliver consistent performance and drag resistance with no variation over a wide range of temperatures and environments.

The Compass 15 is matched with the 2 stage Toggle (alloy) tripod and on ground spreader to yield a height range 22-68" (560-1730mm), offer positive toggle leg locks and the stability of a ground spreader.

Miller Compass 15 Features

  • Compact, lightweight and versatile.
  • 5 selectable positions of fluid pan and tilt drag + 0.
  • 4 selectable positions of counterbalance.
  • Perfect for payloads to 3.3-22lbs (1.5-10kg).
  • Integrated 75mm bowl.
  • 2-stage fast toggle adjustment legs.
  • Durable black anodized alloy tubing.
  • Comes with on ground spreader and rubber feet.
  • Comes with 2-stage tripod bag.
  • 3 year warranty.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Five selectable positions of high performance drag plus a zero position
  • Selectable counterbalance system for payloads between 2-10kg / 4.4-22 lbs
  • Quick release, 60mm sliding camera plate
  • 2-Stage Alloy tripod with safe Toggle locks
  • Stable and durable Ground Spreader
  • 75mm ball levelling

What's in the box:

  • Miller Compass 15 Fluid Head (1034)
  • DS 2 Stage Alloy Tripod Legs (420)
  • On-Ground Spreader (411)
  • Pan Handle with Handle Carrier (679)
  • Tripod Shoulder Strap (554)
  • Soft Case (876)
  • Miller 3 Year Limited Warranty
