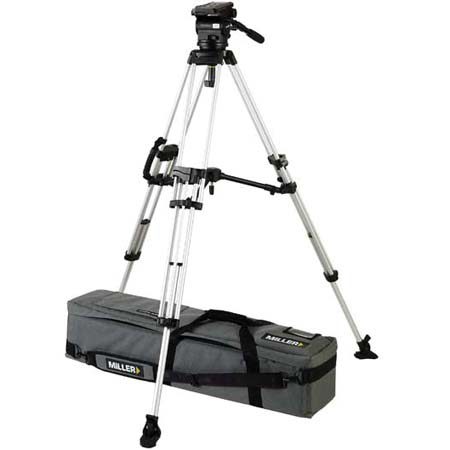

Miller Arrow 40 Fluid Head with Sprinter II 2 Stage Alloy Tripod and Sprinter/HD Mid Spreader, Supports Up to 35 lbs

SKU: MISA401580MS MFR: 1686

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

List Price: $7,439.00

Availability: Special Order .

Free Shipping

See all shipping options

Miller 40 1580 MS: Picture 1 regular $5,994.26

About Miller 40 1580 MS

The Arrow 40 fluid head performance and features has evolved from the demanding world of news gathering. Strength, durability and smooth fluid action have been combined in a simple-to-operate fluid head offering 7 positions of pan and tilt drag in addition to its many other features.

The Arrow 40 offers the widest range and heaviest drag in its class. From fast-action sports shooting to long, slow pans the Arrow 40 exceeds expectations of precision, quality and features for the ENG operator. A Precision performer for news gathering

The new Sprinter II ENG tripod range features Miller Sprint-Locks-Dual, side-action leg locks that let you independently adjust both stages of a 2-stage tripod using one hand. Each tripod leg has two sprint-locks, co-located on the upper leg clamp. The result is a high speed adjustment, no more bending down to adjust the lower tripod stage.

Miller 40 1580 MS Features

  • Fluid Head 40 Features:
  • Payload ranges from 7-16kg
  • 7 (plus zero) positions of fluid pan and tilt drag
  • 4 position of counterbalance
  • 70mm Quick release sliding platform
  • 100 mm ball leveling
  • Rear mounted controls
  • White illumination of bubble level and indicators for pan and tilt
  • Sprinter II 2 Stage Alloy Tripod Features
  • Easily accessible, high speed dual action locks
  • Lightweight and rigid tripod construction
  • Tripods model suits fine height adjustable mid level spreader
  • Inline carry handle
  • Compatible with #475 Forever-flat rubber foot design
  • Rapid action transport clips

Miller 40 1580 MS Specifications

Fluid Head Payload Range
7-16 kg (15-35 lb)
Fluid Head Camera Plate
Fluid Head Pan Drag
7 selectable fluid drag positions + 0
Fluid Head Pan Rotation
Fluid Head Pan Lock
Calliper disc brake system
Fluid Head Tilt Drag
7 selectable fluid drag positions + 0
Fluid Head Tilt Angle
+/- 90°
Fluid Head Tilt Lock
Calliper disc brake system
Fluid Head Counterbalance
4 selectable positions
Fluid Head Camera Platform
Quick release camera plate with 1/4" & 3/8" screws
Fluid Head Sliding Range
70 mm (+/- 35 mm)
Fluid Head Height Above Bowl
162 mm
Fluid Head Mounting Base
100 mm ball leveling
Fluid Head Illuminated Controls
Bubble level & pan/tilt indicators
Fluid Head Temperature Range
-40°C to +65°C
Fluid Head Pan Handle
Tripod Tube configuration
2 Stage
Tripod Tube Material
Tripod Maximum Load
45kg (100 lb)
Tripod Maximum Height
1530 mm (60.4 in)
Tripod Minimum Height
440 mm (17.3 in)
Tripod Transport length
700 mm (27.6 in)
System Transport length
862 mm (33.9 in)
System Height range
602-1692 mm (23.7-66.6 in)
Fluid Head: 3.2 kg (7.1 lb)
Tripod: 3.5kg (7.7 lb)
System: 10.65 kg (23.4 lb)
Miller 3 year warranty
