Mole-Richardson

Mole-Richardson 575 Watt HMI DayLite Par

SKU: MR6621 MFR: 6621
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$2,652.48
Free Expedited Shipping
Qty:
Add to Wishlist

Protect your investment

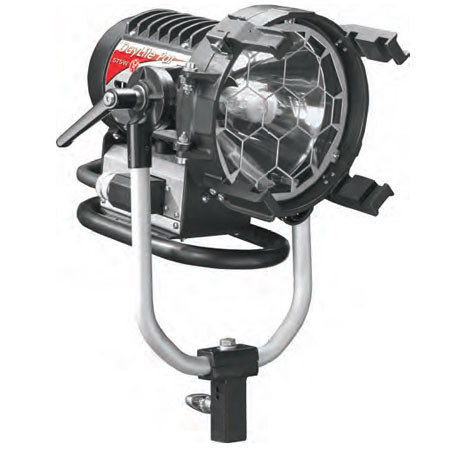

About the Mole-Richardson 575 Watt HMI DayLite Par

The Mole-Richardson 575W HMI DayLite Par is designed for Motion Picture, Television, Event and ENG/EFP Professionals worldwide. The solid cast aluminum construction features dramatically improved strength and cooling, while the Brytal Aluminum parabolic reflector provides over 95% reflectivity. The electronics in the fixture are contained in a low-profile trough totally isolated from the main housing and feature a swing-out trap door for easy access to the igniter and safety switch. The fixture has visual and tactile focal indicators to determine lamp position and, when used with the interchangeable lenses, the field of light can be fine-tuned for optimum beam control.

Mole-Richardson 575 Watt HMI DayLite Par Features

  • Structural Integrity: Fabricated from solid cast aluminum, it benefits from improved ventilation and features a Brytal Aluminum parabolic reflector which boasts 95% reflectivity. The fixture has been fitted with a swing out door for quick access to safety and igniter switches
  • Lamping is achieved via a hinged, locking front door which is fitted with a stainless safety screen that sits over the reflector. Tactile and visual focal indicators denote lamp position which can be tweaked when using the supplied lenses to optimize beam pattern
  • When fitted with a 575 watt HMI bulb and no lens, this fixture will throw a beam of light of 4670 foot-candles 2.1' in diameter from a distance of 20'. Mounting one of the four optional lenses will alter the beam spread and diminish the light output

Mole-Richardson 575 Watt HMI DayLite Par Specifications

Rating 100 volts, A.C., 9 amps max
Socket G22, Heavy duty electrical grade porcelain body with friction type bi-post brass inserts
Switch ON and OFF push-button switches mounted on rear of fixture. May be re-ignited when hot
Safety Switch Interlock micro-switch at door shuts off power to globe sockets when door is opened. Globe cannot be turned on until door is closed
Cable Attached 7-conductor, with male interlocking "Veam" type connector
Head Construction Rugged construction of cast and sheet aluminum
Yoke Aluminum tubing and cast aluminum trunnions with 5/8" diameter baby receiver
Reflector Highly polished Alzak Aluminum Parabolic Reflector
Beam Control Four accessory lenses (listed below), used individually, change the beam pattern from Narrow to Extra Wide Flood
The beam pattern created by the lenses may be rotated within the diffuser clips for vertical or horizontal beam orientation. Further spot to flood adjustments can be made using the focus knob on the rear of the fixture
Finish Clear Anodized Aluminum/Black Powder Coated Enamel
Dimensions (WxHxL) Without Yoke: 10.75x10.75x14.5" / 27.30x27.30x36.83cm
With Yoke: 10.75x19.5x14.5" / 27.30x49.53x36.83cm
Weight Head: 13lbs / 5.89kg (With Cable)
