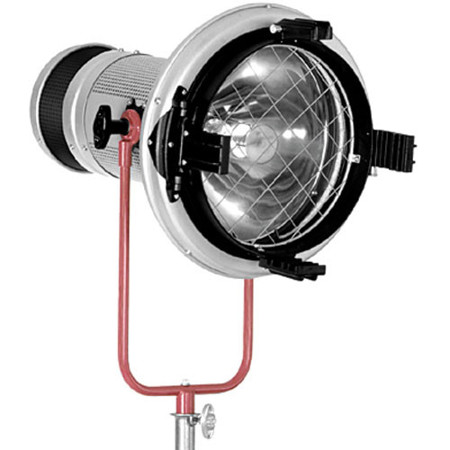

The Mole-Richardson 6000 Watt HMI PAR is designed for Motion Picture, Television and Event Professionals worldwide. The combination cast and sheet aluminum construction features dramatically improved strength and cooling while the Brytal Aluminum parabolic reflector provides over 95% reflectivity.
The electronics in the fixture are contained in a low profile trough totally isolated from the main housing and feature a swing-out trap door for easy access to the igniter and safety switch. The fixture has visual and tactile focal indicators to determine lamp position and, when used with the interchangeable lenses, the field of light can be fine-tuned for optimum beam control.
Other features include: a trough skid for operating and safe transportation; an adjustable yoke pivot point; a locking, hinged front door for easy lamping; and a "pig-tail" style electrical input. Standard on all fixtures are a stainless steel safety screen, spring loaded fourth accessory clip and variable accessory clip positions located at either 90deg. or 45deg. Compatible with all existing 15 1/2" accessories.
120VAC 50-60Hz with optional electronic ballast
|Socket (Lampholder)||Type 63295, heavy duty porcelain with brass bi-post inserts|
|Lens (Condenser)||Four lenses optional|
|Dimensions||31x9.25x19" / 787.4x234.95x482.6mm|
|Weight||39lbs / 17.69kg (without detachable cable)|
