Mole-Richardson 6000 Watt HMI PAR Electronic Ballast Kit, 120VAC

See all Mole-Richardson items
Free Shipping

See all shipping options

In Stock Online - Usually ships within 1-2 Days learn more

Made in USA

Our Price

$20,768.88
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Mole-Richardson

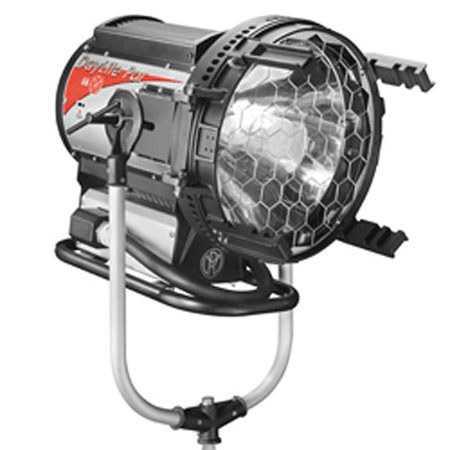

The Mole-Richardson 6000 Watt HMI PAR Electronic Ballast Kit features the redesigned 6K PAR which is capable of using either 4K or 6K lamps (purchased separately). The aluminum housing with 95% reflectance parabolic reflector, has on off pushbuttons while the hinged lamp access door incorporates an auto shutoff circuit which engages when the door is opened. The head accepts 15.5" accessories including 4 optional lenses to narrow or "flood-out" the light beam.

The included 66569 Electronic Ballast is rated for 4,000W/6,000 watts and is constructed of anodized sheet aluminum. A fold-away handle is incorporated into the design. Its detachable cord features a VEAM connector.

Mole-Richardson Features

  • Head: Brytal Aluminum parabolic reflector provides over 95% reflectivity
  • Head: ON and OFF push-button switches mounted on rear of fixture. May be re-ignited when hot
  • Head: Double pole circuit breaker
  • Head: Interlock micro-switch at door shuts off power to globe sockets when door is opened. Globe cannot be turned on until door is closed
  • Head: Steel tube yoke with aluminum trunion castings and 1-1/8" steel yoke pin
  • Head: Four accessory lenses, used individually, change the beam pattern from Narrow to Extra Wide to Flood. The beam pattern created by the lenses may be rotated within the diffuser clips for vertical or horizontal beam orientation
  • Ballast: Anodized aluminum construction, folding handle
  • Ballast: Detachable power cord with VEAM connector

Mole-Richardson Specifications

Head: Rating
6000 Watts
120VAC 50-60Hz with electronic ballast
65A max
Head: Socket (Lampholder)
Type G38, heavy duty porcelain with brass bi-post inserts
Head: Lens (Condenser)
Four lenses optional
Head: Mounting
Junior 1-1/8" (28 mm)
Head: Front Accessory Size
15.5" / 393.7mm
HMI Ballast: Lamp Power
4000/6000 watts
HMI Ballast: Input Voltage
195-260V, 50/60 Hz, 65A max
Dimensions
HMI Ballast: 22x20.5x27" / 558.8x520.7x685.8mm
Head: 29x19.5x21" / 736.6x495.3x533.4mm
Weight
HMI Ballast: 95lbs / 43.091kg
Head: 63lbs / 28.58kg (without detachable cable)
