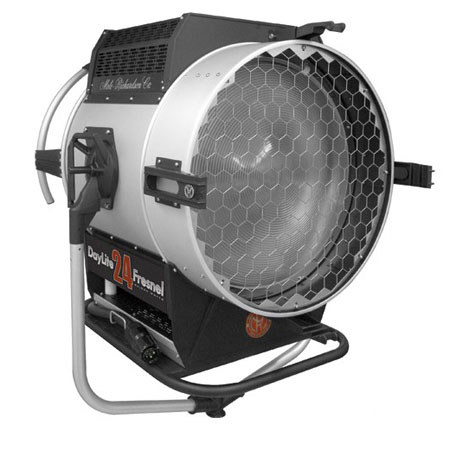

The Mole-Richardson 24000 Watt is the largest single HMI Fresnel available in the world. Through the extensive testing process, tremendous care was placed on striking a balance between performance, or light output and light quality and the physical challenges of dissipating the tremendous heat generated by a lamp of this size. Knowing that simplicity is often the key to reliability and longevity, the new 24K does not make use of fans or other exotic ways to cool the lamp.
Instead, large black anodized sockets, measuring a dramatic 5-1/2" in diameter, combined with specifically engineered top and bottom ventilation provides more than adequate cooling. In addition to the advances in cooling, a new highly polished 11" reflector, producing over 95% reflectivity, was designed to work with the larger arc gap of the 24K Lamp. It has new reflector, along with the 24-3/4" Borosilicate Fresnel lens combine to produce unparalleled output and a perfectly smooth field from spot to flood.
|Rating||272 volts, A.C., 88 amps max- 24000 watts max|
|Sockets||Spring loaded positive clamping (pair)|
|Cable||Attached 7-conductor cable with interlocking "Veam" type connector|
|Switch||ON and OFF momentary push-button mounted on trough|
|Safety Switch||Interlock micro-switch at door shuts off power to globe sockets when door is opened. Globe cannot be turned on until door is closed|
|Construction||Sheet aluminum housing and cast aluminum trough end caps|
|Yoke||Tubular and cast aluminum with 1-1/8" diameter steel yoke pin|
|Reflector||11" diameter Brytal Finished, spherical|
|Focusing||Hand crank at rear|
|Finish||Clear anodized and high heat black powder coated enamel|
|Dimensions (HxWxD)||36.5x34.2x33.2" / 92.71x86.86x84.32cm|
|Weight||Head: 160lbs / 72.57kg (With Cable)|
