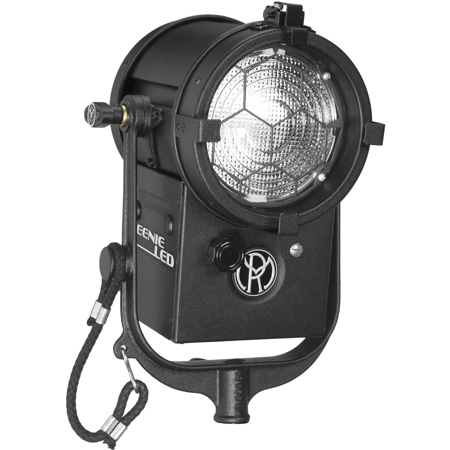

Mole-Richardson TweenieLED 100W 4.5" Fresnel with DMX for Grid Mounting, Tungsten
What's Included With This Item:
- Mole-Richardson TweenieLED 100W 4.5" Fresnel with DMX
- Attached Power Cable (36")
- Mole-Richardson Warranty
Mole-Richardson TweenieLED is a tungsten-balanced 100W 4.5" Fresnel with DMX for Grid Mounting. Fresnels have been a staple in Hollywood since 1936 and little has changed except the use of better materials with more precise construction techniques.
While nobody had a problem with the Fresnel's quality of light, heat and electrical draw was another story. It's why you see so many movie people walking around the set with heat-resistant gloves. And of course frying the talent could bring the production to a screeching halt. Then there are scrims - the only way to knock down the output without changing the color temperature.
Enter the MoleLED Fresnel line. Apart from the black powder-coated finish, the TweenieLED head looks and performs the same as a legacy light allowing you to swap a standard light for a TweenieLED or mix them. In fact there's a retro-fit kit available to convert your old style light to an LED.
On-board local 100 - 10% dimming means you'll probably be restricting your scrimming to half-scrims, saving you a lot of ladder climbing. Besides comfort, you'll be saving on air-conditioning and head running costs in the studio. The Tweenie LED's maximum draw is 0.5 - 1.0A as compared to the legacy lamp's 1.7A - up to an 80% reduction in energy consumption. This means that you can run double the amount of LEDs as legacy lights without raising the temperature. Let's also consider the cost and downtime of re-lamping. LEDs last about 50,000 hours and are virtually maintenance-free.
If you're not sold already, the control features will close the deal. Not only does the TweenieLED have on-board local dimming but it's also DMX 512 compatible, so you can remote control 1 or 100 TweenieLEDs from a central console by simply daisy-chaining them together.
The 90-250VAC TweenieLED has a 4.5" lens, passive cooling and aluminum alloy and steel construction. It has 22 degree to 56 degree spot to flood variation and a 5/8" receiver for standard Baby pins. The #18 AWG power cable is a short 36" long to avoid unnecessary cable tangle when mounting the light in an overhead grid. It ends in a NEMA 5-15 Edison (US) plug.
|Rating||90-250AC, 50-60Hz, 100W|
|Power Consumption||0.5-1A max.|
|Light Source||100W Quantum Dot LED|
|Cable||Attached 36"(91.4 cm) type SO., 3 conductor, #18 AWG with NEMA 5-15 Edison (US) plug|
|Switch||Thru-cord toggle in cable, DMX or local toggle in trough|
|Fuse||1.0A Slow-blow, fuse holder in trough|
|Dimming||Flicker free, direct DC dimming
On-board dimmer 100 - 10%
DMX dimmer 100 - 0%
|Control||DMX512-A In and Out, manual DMX address selector|
|Lens||4.5" (114 mm) Borosilicate glass Fresnel|
|Beam Angle||22 - 56deg. Variable spot to flood|
|Focusing||Rotating knob on front and back|
|Construction||Aluminum alloy and steel with interlocking channels|
|Yoke||Cast aluminum alloy with standard 5/8" (16 mm) receiver|
|Compliance||RoHS. CE, UL, CSA pending|
|Photometrics||Light intensity Flood Tungsten
240 fc / 2,583 lux at 5.0' (1.5 m)
60 fc / 646 lux at 10' 3.0 m)
30 fc / 323 lux at 15' (4.6 m)
Light intensity spot tungsten
499 fc / 4,306 lux at 5.0' (1.5 m)
120 fc / 1,292 lux at 10' (3.0 m)
50 fc / 538 lux at 15' (4.6 m)
|Dimensions||8.0 x 9.0 x 16" / 20.32 x 22.86 x 40.64 cm|
|Weight||Head only: 6.0 lbs / 2.72 kg|
