Made in USA
Minox 3-9x40mm ZA 3 Series Riflescope, Matte Black Finish with German #4 Reticle.

SKU: MX66004 MFR: 66004

This item is no longer available.

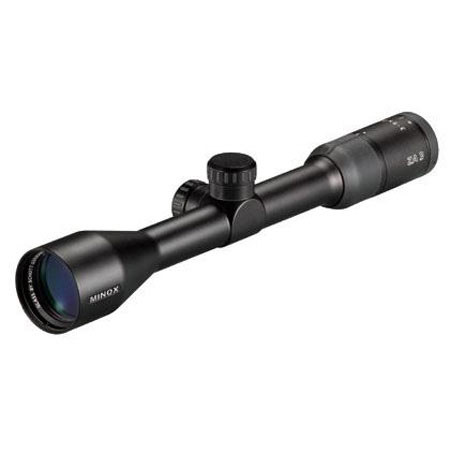

Minox : Picture 1 regular

About Minox

The Minox ZA 3 3-9x40 Riflescope is designed to meet the practical demands of any hunt, from the low magnification needs of woodland hunters to the higher power requirements of the open plains and high mountains. This ZA3 Riflescope by Minox features a 3x to 9x variable zoom and a 40 mm objective.

Minox ZA-3 3-9x 40mm Riflescope feature lens from legendary German glass specialist SCHOTT. This lens system has the Minox M coating that delivers target-popping contrast and "can't hide" brightness dawn or dusk, rain or shine, ensuring accurate shot placement no matter how challenging the conditions.

This Riflescope is crafted from lightweight, incredibly tough aircraft-grade anodized aluminum and features standard one inch mono-tube construction for easy, low-profile mounting. ZA 3 Riflescopes are waterproof and system purged with inert argon gas to prevent fogging on inner glass surfaces and provide corrosion protection for critical precision mechanisms. The Minox ZA 3 3-9x40 Rifle Scope is built to operate perfectly in the harshest environments and after enduring the roughest handling, uncontrollable, unexpected things that can happen in the field.

Minox Features

  • Lens by legendary German glass specialist SCHOTT AG
  • Minox M coating - up to 21 different layers applied to the glass surface to greatly improve light transmission, brightness, contrast, detail and color rendering
  • Windage and elevation knobs, finger adjustable, with positive & precise reticle movements of 1/4 MOA, zero resettable
  • Long four inch plus eye relief
  • Rubber cushioned fast-focus eyepiece
  • Smooth operating soft-touch rubber variable power ring

Minox Specifications

Clear aperture
1.57" / 39.88mm
Parallax adjustment - Range (Side focus)
100 yds
Fully Multicoated
Eye relief
> 4.0" / 101.6mm
Exit pupil high power
0.17" / 4.32mm
Exit pupil low power
0.53" / 13.46mm
Eyepiece - diopter
-2 min
Eyepiece + diopter
1.5 min
Magnification high power
9mm / 0.35"
Magnification low power
3mm / 0.19"
Field of View Low Power / ft@100 yds
Field of View High Power / ft@100 yds
Click values
1/4 min
Windage travel - total
60 min
Min travel one direction
25 min (from optinial center)
Elevation travel - total
60 min
Main tube Outside diameter
1" / 25.4mm
Overall length
12.3" / 312.42mm
Front mounting distance
2.13" / 54.10mm
Rear mounting distance
2.17" / 55.12mm
German #4
12.3 oz / 0.35kg
Mfr #
