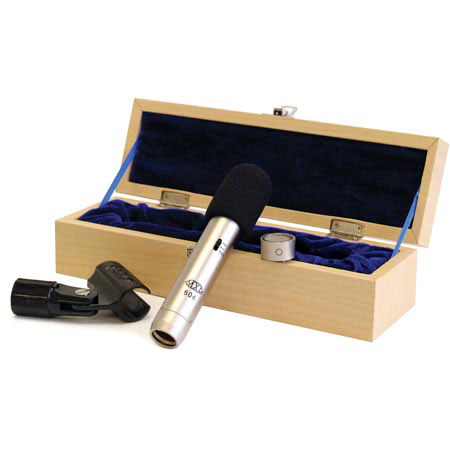

MXL 604 Small Diaphragm Instrument Condenser Microphone with Extra Omni Directional Capsule

MXL
SKU: MXL604 MFR: 604
MXL : Picture 1 thumbnail MXL : Picture 2 thumbnail

List Price: $179.95

Free Shipping

See all shipping options

In Stock Online - Usually ships within 1-2 Days learn more

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 1 Year Replacement Plan + $7.95
  • New Leaf 3 Year Extended Warranty + $9.95
  • New Leaf 3 Year Drops & Spills Extra Protection + $22.95
45% Off

Our Price

$99.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

Ways To Save

Product Highlights

  • Bass roll-off switch set to 150Hz at 6 dB/octave
  • Attenuation -10 dB pad switch
  • Made For Multi-Use
  • Condenser
MXL : Picture 1 regular $99.00

About MXL

The 604 instrument microphone delivers the dynamic range musicians and artists crave for acoustic guitars, drums, high-hat cymbals, pianos, percussion, stringed instruments and more. Using transformerless FET circuitry and a gold diaphragm capsule design, the 604 also features -10 dB switchable attenuation pad, low-frequency roll off and an interchangeable omnidirectional capsule for versatility in any recording application.

MXL Features

  • Interchangeable capsules with omni and cardioid polar patterns
  • Bass roll-off switch set to 150Hz at 6 dB/octave
  • Attenuation -10 dB pad switch

MXL Specifications

Type
Pressure gradient condenser mic
Diaphragm
6 micron gold-sputtered
Capsule Size
22mm/.87 in.
Frequency Response
30Hz - 20kHz
Polar pattern
Cardioid/Omnidirectional
Sensitivity
15 mV/Pa
Output Impedance
150 ohms
Pre-Attenuation Switch
0 dB, -10 dB
High Pass Filter
6 dB/octave @ 150 Hz
Equivalent Noise
17 dB (A-weighted IEC 268-4)
S/N Ratio
77 dB (Ref. 1 Pa A-weighted)
Max SPL for .5% THD
137 dB
Power Requirements
48V phantom power (+/- 4V)
Metal Finish
Silver
Size
22mm x 133mm/5.24 in. x 87 in.
Weight
0.3 lbs/136.08g
Warranty
MXL 3 years warranty
Mfr #
604
SKU
MXL604
