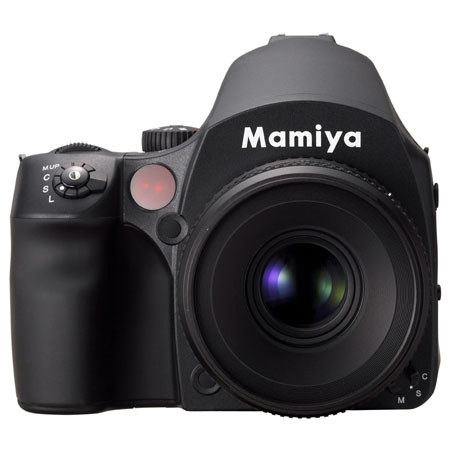

About the Mamiya 645DF

The Mamiya 645DF camera features autofocus speeds up to 30% faster than previous models, plus a new companion series of leaf shutter lenses, the Mamiya 645DF offers substantial performance upgrades for owners of virtually any brand of digital back, including Leaf, Mamiya, Phase One and Sinar.

Combining 35mm handling ease and speed but with an available image capture area almost three times larger, the Mamiya 645DF is a full-featured camera, utilizing digital controls and LCD displays and featuring 19 custom settings for fully personalized digital photography.

The new 645DF system delivers exciting advances in core-camera technology, including an innovative new selectable dual shutter system. The photographer can now select the best shutter for the conditions - either the integral focal plane shutter, which can be used with any of the 15 existing Mamiya 645AF system lenses, or one of three new lenses containing an integral leaf shutter for flash sync speeds of up to 1/1600 second.

Mamiya 645DF Specifications

Camera type 6x4.5cm format, electronically controlled focal plane shutter, TIL multi-mode, AE, AF Single Lens Reflex for digital use
Image size 56x41.5mm (actual image)
Lens Mount Mamiya 645 AF Mount, compatible with M645 Mount (manual focus confirmation, focus aid, stopped-down exposure metering)
Viewfinder Fixed prism viewfinder magnification x0.71; built-in diopter adjustment (-2.5 to +0.5, optional diopter correction lenses provide adjustment ranges of -5 to -2 diopter and 0 to +3 diopter); built-in eye-piece shutter
Focusing Screen Interchangeable, Matte (standard), Checker and Microprism Type C for Non-AF M645 lenses
Field of View 94% of actual image
Viewfinder Information Focus mark, defocus mark, warning mark, aperture value, shutter speed, metering mode (A, S, A/S), exposure compensation value (difference between set value and metered value) and flash ready / OK lamp with TTL Metzconnection.
Auto Focus Method TTL phase difference detection method; sensor: CCD line sensor (I+I type); operating range: EV0 to EV18 (ISO 100)
Focus Area Displays the focus area in the viewfinder screen
AF Assist Beam Activates automatically under low light, low contrast
AF Lock By pressing the shutter release button halfway down in the AF-S mode, or by pressing the AFL button
Exposure Modes Aperture-priority AE, shutter-priority AE, programmed AE (PH, PL setting possible) and manual
AE Metering Mode TTL metering, center-weighted average (AV), spot (S) and variable ratio (A-S auto)
Increments of Shutter Both the shutter speed and the aperture level can be set to 1/3 or speed and aperture 1/2 using the electronic dial lockfunction
Metering Range EV 2 to EV 19 (with ISO100 and AF80mm f/2.8 D lens)
Exposure Compensation Expandable to ±5 EV
AE Lock 6x7cm
Shutter Touchscreen
Shutter Speed AE 30 to 1/4000 sec. (1/8 step), manual 30 to 1/4000 sec. (1/2 or 1/3 steps), 1 min-60 sec. (1 step), X, bulb (Bulb, electronically controlled), Time, shutter curtain protection mechanism
Auto Bracket Shot Shot Enable with auto bracket button (3 frame shots, 5 frame or 7 frame shot with auto bracketing). Specify 1/3, 1/2, 2/3 or 1EV steps.
Flash Synchronization X contact point, 1/125 second (focal plane), 1/800 or 1/1600 second (leaf shutter)
Flash Control TTL direct flash control, supports Metz SCA3002 system (SCA3952 Adapter)
Cable Release Socket On shutter button
Remote Control Terminal On side of body; electromagnetic cable release RE401 and RS402 can be purchased separately
Depth-of-Field Confirmation Preview Button on body
Custom Settings 19 items
Power Requirements Requirements 6 AA-size batteries (alkaline-magnesium, lithium, nickel-hydride or nickel-cadmium rechargeable batteries).
External Power Socket An external battery case can be connected.
Size (W x H x D) 6" x 5" x 6"/153 x 128 x 152 mm
Weight 2.3 pounds / 1,030 g (body only)
Warranty Mamiya 1 year warranty
