CM-2S Stereo Condenser Microphone - Mic clip - 19" (0.5m) stereo cable (XLRF to 3.5mm stereo mini plug) - 10' (3m) stereo cable (XLRF to two 3.5mm mono mini plugs) - Two 3.5mm (female) to 1/4" (male) phone plug adapters - Foam windscreen - Soft, protective leatherette pouch - AA battery - User guide - Warranty card
|

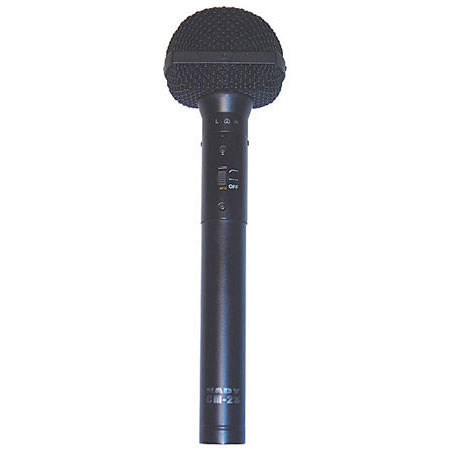

The Nady CM-2S Stereo Condenser Microphone is a superior, versatile microphone that provides the realistic spatial impact of a live sound field for many applications including stereo recording, ENG theater use, and FM stereo radio.
The CM-2S uses a pair of closely-matched, wide range, condenser uni-directional (cardioid) elements, angled at 110° in an X/Y stereo configuration. It features superb channel separation; smooth, linear 30Hz-20kHz frequency response with a switchable low-frequency roll-off; On/Off switch, high SPL capability; extended dynamic range with ultra-low self noise; crisp, clear transparent audio; and internal battery operation. All this contained in a compact, lightweight design for easy camera mounting.
The CM-2S has two unbalanced, in-phase, low impedance stereo outputs. The Left(+) signal is sent to Pin 2 and the Right(+) signal is sent to Pin 3. Both Left and Right use a common Ground(-) connection on Pin 1. Use the 19" stereo cable to connect to 3.5mm stereo inputs or the 10'cable to connect to two channels of your mixing console or recording equipment.
Placing the mic closer to the sound source will create a more pronounced stereo image while moving the mic further away will lessen the stereo image and result in more room noise. Placing a mic too close to a multi-voice source may result is some voices being more dominant than others. Experiment with placement for the best possible results. Use the low-cut filter switch to reduce stage floor noise and undesired low frequencies.
Note DO NOT USE PHANTOM POWER WITH THE CM-2S or you could damage the microphone. Low bias voltages (such as those used for mini-disc, DAT, or analog recorders) will not harm the microphone.
|
 |
Features 2 closely matched cardioid condenser elements; suberb channel separation; smooth, linear 30Hz-20KHz frequency response with a switchable low-frequency roll-off; high SPL capability; extended dynamic range with ultra-low self noise; crisp, clear transparent audio; and internal battery operation |
|
Compact, lightweight design for easy camera mounting |
|
Includes: mic clip, connector cables and adapters, windscreen, AA battery, and soft protective pouch. Camera shoe-mount optional |
| POLAR PATTERN | Cardioid (Unidirectional) stereo |
| ELEMENT: | Fixed-charge back plate permanently polarized condenser |
| FREQUENCY RANGE | 30 to 20,000Hz |
| SENSITIVITY | -45dB (5.6 mV) re 1V at 1 Pa |
| LOW-FREQUENCY ROLL-OFF: | 150Hz, 6dB/octave |
| IMPEDANCE | < 250 Ohms unbalanced |
| MAXIMUM S.P.L. (THD 1% 1KHz) | 128dB |
| S/N RATIO RE 1PA | 70dB |
| BATTERY TYPE: | AA alkaline battery |
| BATTERY LIFE: | More than 1000 hrs |
| CHANNEL BALANCE: | < 2.5dB |
| SWITCH: | Off, flat response, low-roll-off |
| DYNAMIC RANGE (TYPICAL): | 101dB, 1kHz at Max SPL |
| DIMENSIONS | Diameter: 0.83" (21.0mm), Length: 7.76" (197.0mm)
Width: 2.44" (62.0mm), |
| WEIGHT | NET WEIGHT: 5.8 oz (165 g) |
| | |
|
