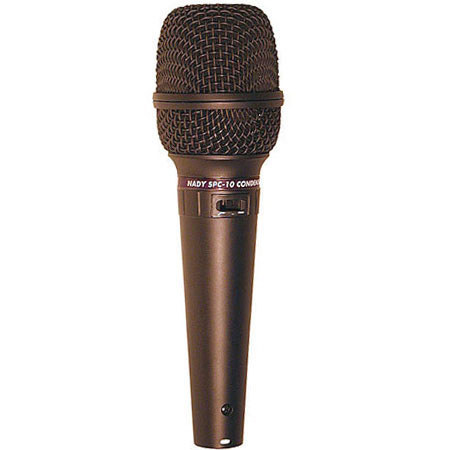

Nady SPC-10, 1" Diaphragm, Handheld Condenser Vocal Microphone with Selectable Low Cut Filter, XLR Connector.
Mfr. Part: SPC10 SKU: NASPC10
enlarge image
|
|
 |
|
|
|
Item Includes
SPC-10 microphone - User Guide - Warranty card - Mic clip - Foam padded plastic carrying case
|
Description
The SPC-10 is the first general purpose handheld vocal microphone of its kind tofeature a studio quality large diaphragm condenser element. The SPC-10 is perfect for all live entertainment, recording, and broadcast applications requiring uncompromised studio quality sound.
The SPC-10 can be used with any standard mixer, powered mixer/amplifier, or mic preamp. Using either an XLR to XLR or XLR to 1/4 phone plug low impedance cable, connect the female XLR end to the SPC-10 and the other end (male XLR or 1/4 phone plug, as appropriate) to your equipment. Depending on the application, the SPC-10 can either be handheld or mounted on a microphone stand with a standard mic clip.
Although all microphones are prone to feedback to some extent, those with a unidirectional polar pattern (such as the SPC-10) are specially designed to accept only signals from the audio source directly in front of the mic cartridge.
Thus, the cardioid pattern of the SPC-10 ensures that it will deliver only the desired audio in front of the mic, rejecting the unwanted audio from the rear, even in noisy ambient conditions with high sound pressure levels from the PA and monitor speakers.
|
Features
 |
Large (1") diameter, ultra-thin membrane, gold evaporated pressure gradient condenser capsule and transformer-less FET circuitry for superior audio with unsurpassed warmth and transparency |
|
Linear frequency response across the entire audio spectrum (30 20,00Hz, with added presence in the mids and highs) for crisp, clear sound |
|
Superior sensitivity, wide dynamic range, high SPL capacity and ultra-low distortion |
|
External low-cut switch for rolling off low frequencies (80 Hz, 12 dB/octave) |
|
Tight cardioid pattern for optimum feedback rejection |
|
Multi-axis internal capsule shockmount for extremely low handling noise |
|
Lightweight, rugged and durable |
|
140dB maximum SPL, 122dB dynamic range, 8mV/Pa sensitivity, 200 Ohms rated impedance with 1000 Ohms minimum load impedance, and 1.5V maximum output voltage |
|
Gold plated XLR connector |
|
Requires +48V phantom power, 2.7mA |
|
2.1" Diam. x 7.1" (53 Diam. x 180 mm), 11.5 oz (322 g) |
Specifications
| TYPE | Condenser
DIRECTIVITY PATTERN: Cardioid pattern for optimum feedback rejection |
| IMPEDANCE | 200 Ohms |
| RECOMMENDED LOAD IMPEDANCE | 1000 Ohms |
| EQUIVALENT NOISE LEVEL TO IEC 268-4 | EQUIVALENT NOISE LEVEL: 18dB (A Weighted IEC/DIN651)
SIGNAL TO NOISE RATIO: 76dB |
| POWER REQUIREMENT | +48V phantom power, 2.7mA |
| CONNECTOR | 3-pin XLR (gold plated) |
| MIC CABLE | 3-pin XLR standard cable (not supplied) |
| DIMENSIONS | 2.1" Diam. x 7.1" (53 Diam. x 180 mm) |
| WEIGHT | 11.5 oz (322 g)
MATERIAL : Die-cast zinc BALLSCREEN: Steel mesh |
| DYNAMIC RANGE (TYPICAL): | 122dB |
| Frequency response | 30 to 20,000Hz |
| Sensitivity (@1 KHz, 74dB SPL) | 8mV/Pa |
| Max. SPL @ 1% THD | 140dB |
| | |
|
|
|
|
|
|
|
|
|
|
