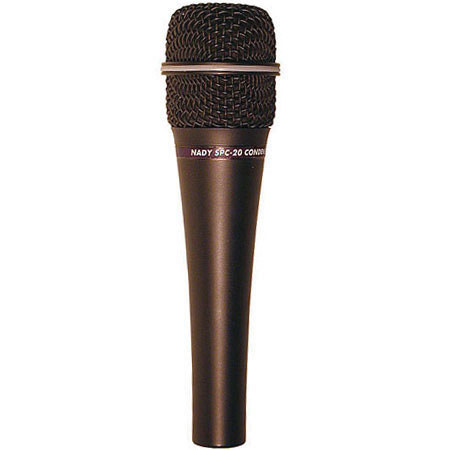

Nady SPC-20 Vocal Condenser Handheld Microphone with XLR Connector.
Mfr. Part: SPC20 SKU: NASPC20
enlarge image
|
|
 |
We ran out of this Item Temporarily.
Please note: You can order this now and have us ship it as soon as it arrives.
We will not charge your card for any backordered items, until it is ready to actually ship. |
|
|
Item Includes
SPC-20 microphone - User Guide - Warranty card - Mic clip - Foam padded plastic carrying case
|
Description
The SPC-20 is designed for the most critical live sound and recording applications and is ideal for handheld vocal and mid-high frequency instrument miking.
The SPC-20 can be used with any standard mixer, powered mixer/amplifier, or mic preamp. Using either an XLR to XLR or XLR to 1/4 phone plug low impedance cable, connect the female XLR end to the SPC-20 and the other end (male XLR or 1/4 phone plug, as appropriate) to your equipment.
Depending on the application, the SPC-20 can either be handheld or mounted on a microphone stand with a standard mic clip.
Although all microphones are prone to feedback to some extent, those with a unidirectional polar pattern (such as the SPC-20) are specially designed to accept only signals from the audio source directly in front of the mic cartridge.
Thus, the cardioid pattern of the SPC-20 ensures that it will deliver only the desired audio in front of the mic, rejecting the unwanted audio from the rear, even in noisy ambient conditions with high sound pressure levels from the PA and monitor speakers.
This means that feedback will be greatly minimized with the SPC-20 in all live performance miking applications.
|
Features
 |
Unique 2-layer ballscreen pop filter for elimination of breath noises |
|
Pressure gradient back electret condenser and transformerless FET circuitry for ultra transparency and enhanced transient response |
|
Wide frequency response (50 16,000Hz) with specially tailored mid-high presence for vocal punch and exceptional crisp, clear sound |
|
Supercardioid polar pattern for maximum feedback rejection |
|
Ultra-high (140dB) SPL capacity and wide 115dB dynamic range for maximum freedom from distortion even in the most demanding applications |
|
4.5mV/Pa sensitivity, and 200 Ohm rated impedance with 1000 Ohm minimum load impendance |
|
Superior internal shockmounting to eliminate handling noise |
|
Lightweight, rugged and durable |
|
Required 48VDC phantom power |
Specifications
| ELEMENT: | Black Electret Condenser
Material: Die-cast zinc
BALLSCREEN: Steel mesh |
| POLAR PATTERN | DIRECTIVITY PATTERN: Supercardioid polar pattern for optimum feedback rejection |
| SENSITIVITY | -47dB V/Pa (4.5mV/Pa) (@1kHz, 74dB S.P.L.) |
| IMPEDANCE | Output: 200 Ohms |
| RECOMMENDED LOAD IMPEDANCE | 1000 minimum load |
| MAXIMUM S.P.L. (THD 1% 1KHz) | 140dB |
| POWER REQUIREMENT | +48VDC phantom power 2.7mA |
| CONNECTOR | 3-pin XLR (gold plated) |
| MIC CABLE | 3-pin XLR standard cable (not supplied) |
| DIMENSIONS | 1.9" Diam. x 6.9" (48 Diam. x 175 mm) |
| Phasing: | Positive voltage on pin 2 relative to pin 3 |
| DYNAMIC RANGE (TYPICAL): | 115dB |
| Weight | 9.3 oz (260 g) |
| | |
|
|
|
|
|
|
