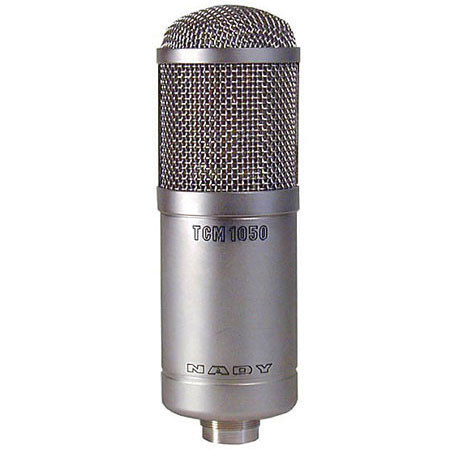

Nady TCM1050 Studio Vacuum-Tube Condenser Microphone
See all Nady items

Nady TCM-1050 Studio Vacuum-Tube Condenser Microphone with 30' 7-pin XLR Cable & TMPS-2 Power Supply / Power Selector

SKU: NATCM1050

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Shopper : is this the newer version with tube socket or older version with soldered tube?JEFFERY B : The one shipped to me had the tube socketMICHAEL J : Hi, this is Michael Joly writing. I modify these mics at my shop. It is not possible to tell without opening the mic up, if the particular mics being sold by Adorama have the soldered-in tube, or socketed tube. Someone at Adorama will have to open a mic and check if the tube is soldered, or socketed. But all of the recent TCM-1050 mics I've seen in my shop have been socketed.

Reviews about this item

Review Summary

Nady TCM-1050 Specifications

  • TYPE

    True condenser pressure gradient microphone with 1 inch (25mm) diameter dual diaphragm and vacuum tube pre-amplifier

  • POLAR PATTERN

    Omnidirectional, cardioid, figure 8, and six intermediate stages (silent switching)

  • SENSITIVITY

    Open circuit sensitivity @1KHz: -36dBV +/-2dBV (0dBV=1V/Pa) for all patterns

  • FREQUENCY RANGE

    20 to 20000Hz

  • IMPEDANCE

    < 200 Ohms

  • RECOMMENDED LOAD IMPEDANCE

    1000 Ohms

  • MAXIMUM S.P.L. (THD 1% 1KHz)

    134 dB

  • EQUIVALENT NOISE LEVEL TO IEC 268-4

    Equivalent noise level (A weighted) 18 dB-A

  • S/N RATIO RE 1PA

    74dB

  • POWER REQUIREMENT

    Dedicated TMPS-2 powering unit (115/230VAC selectable)

  • CONNECTOR

    7-pin XLR (gold plated)

  • MIC CABLE

    7-pin XLR cable (XC-7P), 30 ft (10 m)

  • Vacuum Tube

    6072 (selected from 12AT7)

  • WEIGHT

    Net Weight 29 oz (800 g)
    TMPS-2 Dimensions and Weight: 2" X 5.5" X 7" (51mm X140mm X 178 mm), 3.25 lbs (1.46 Kg)

  • DIMENSIONS

    Diameter: 2.36 in (60 mm)
    length: 7.1 in (180 mm)

  • UPC Code

    634343001723

About Nady TCM-1050

The TCM 1100 is among the best values available today in studio tube condenser microphones. With the classic vintage look and same extraordinary sound and performance of the legendary vacuum tube microphones, this models is available at a fraction of their original cost. For the first time, the superior technology of these classic microphones is affordable even to the most modest project studios.

The TCM 1050 has the superior rugged construction and unparalleled warmth, presence, and clarity of the original classics. The TCM 1050 studio vacuum tube condenser microphone delivers superb sound and unsurpassed value.

This superior microphone is perfect for recording studio vocals, acoustic instruments, orchestras and choral groups,ambient instrument audio, and many live sound applications. Powerful and versatile, the TCM 1050 meets the stringent requirements of even the most demanding digital recording and live broadcasting applications.

Nady TCM-1050 Features

  • Ideal for the most demanding applications, including all forms of vocal and instrument pickup
  • Gold-sputtered, ultra-thin (1 diameter) mylar dual diaphragm
  • Tube preamplifier circuitry with 6072 vacuum tube (a classic 12AT7 specially selected for low distortion, superior signal-to-noise ratio and minimum sensitivity to mechanical vibrations)
  • Special output transformer designed for ultra transparency
  • Almost all brass parts for years of studio workhorse reliability
  • Power provided by a dedicated AC power supply with balanced XLR output for connection to any mixing console (no phantom power required)
  • Nine different polar patterns remotely selectable on power supply for ultimate versatility in use and ease of operation: omnidirectional, cardioid, figure 8, and six intermediate stages
  • Supplied complete with TMPS-2 power supply/pattern selector unit (with switchable 115/230V operation), 30'/ 7-pin XLR cable, elastic spider shockmount, and foam windscreen

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Ideal for the most demanding applications
  • Gold-sputtered, ultra-thin (1 diameter) mylar dual diaphragm
  • Tube preamplifier circuitry with 6072 vacuum tube
  • Special output transformer designed for ultra transparency
  • Almost all brass parts for years of studio workhorse reliability
  • Dedicated AC power supply with balanced XLR output

What's in the box:

  • MPS-2 remote power supply/9-pattern polar pattern select unit with switchable 115/230VAC operation
  • Power cord
  • SSM-1050 elastic suspension shock mount
  • XC-7P 30 ft (10 m) connecting cable with 7-pin XLR
  • FW-1050 foam windscreen
  • User guide
  • Warranty card
