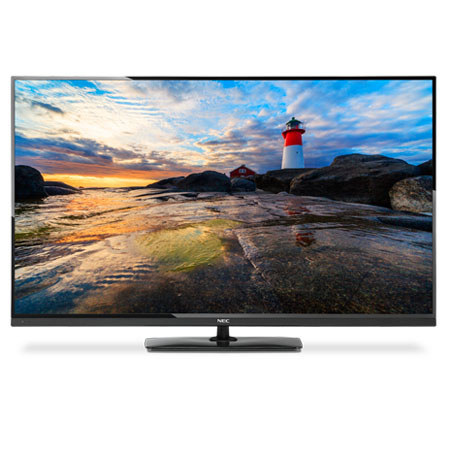

NEC 46" LED Edge-Lit Commercial-Grade Display Monitor with Integrated Tuner, 1920x1080 Resolution, 8ms Response Time, 60Hz Refresh Rate, HDMI Input

See all NEC items
SKU: NCE464 MFR: E464

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About NEC E464

The NEC 46" LED Edge-Lit Commercial-Grade Display Monitor with Integrated Tuner is ideal for education, corporate and other digital signage applications. Compared to previous generation displays, this model's edge-lit LED backlighting allows for reduced power consumption, a thinner depth, a smaller bezel and lighter weight. Full HD resolution delivers stunning image quality for a variety of content and the E464's integrated tuner and speakers allow users to enjoy high-definition broadcast capabilities.

This display can be monitored remotely through the RS-232C networking feature, which also provides the ability to synchronize multiple displays, remotely power on/off and lock out external buttons to prevent unwanted changes in the display's setting.

NEC E464 Features

  • LED backlighting technology reduces power consumption and allows for a slimmer cabinet depth
  • Thinner bezel improves display's aesthetics
  • RS-232C allows users to lock out external buttons, synchronize multiple displays and remotely power on/off displays
  • USB media player allows users to view .jpg images
  • Full 1080p high-definition resolution provides stunning detail
  • Built-in NTSC/ATSC analog/digital tuner allows for high-definition broadcast capabilities
  • Built-in, low-profile 10W speakers enhance the experience with superior sound

NEC E464 Specifications

Panel Technology
Viewable Image Size
46" / 116.84cm
Native Resolution
1920 x 1080
Backlight Type
LED Edge-lit
Brightness (typical)
Brightness (maximum)
Contrast Ratio (typical)
Viewing Angle
178deg. Vert., 178deg. Hor. (89U/89D/89L/89R) at CR>10
Response Time(Gray to Gray)
Refresh Rate
Aspect Ratio
Active Screen Area
40.4x22.9" / 1026.1x580.7mm
Displayable Colors
More than 16.7 million
Synchronization Range: Horizontal
31-83 kHz (Analog/Digital)
Synchronization Range: Vertical
56-75 Hz
Input Signal: Video
Analog RGB 0.7 Vp-p/75 Ohms
Input Signal: Sync
Separate sync: TTL Level (Positive/Negative)
Composite sync: TTL Level (Positive/Negative)
Composite sync on green: (0.3Vp-p negative 0.7Vp-p positive)
PC Signal Compatibility
Macintosh Compatibility
Input Terminals: Digital
HDMI (3)
Input Terminals: Analog
VGA 15-pin D-sub, RCA (Y, Cb/Pb, Cr/Pr) Component
Input Terminals: Audio
HDMI Audio, Stereo Mini-Jack
Input Terminals: External Control
Output Terminals: Audio
Power Consumption (typical): On
ECO Mode Standby
Bezel Width (Left/Right, Top/Bottom)
0.39"/0.39", 0.39"/1.3"; 9.9mm/9.9mm, 9.9mm/32.4mm
VESA Hole Configuration
400 x 400mm (4-hole)
Operating Temperature
32-104deg.F / 0-40deg.C
Operating Humidity
Operating Altitude
6562ft / 2000m
Storage Temperature
32-104deg.F / 0-40deg.C
Storage Humidity
Storage Altitude
40000ft / 12192m
Dimensions (WxHxD)
With Stand: 41.2x26.5x8.4" / 104.64x67.31x21.33cm
Without Stand: 41.2x24.5x2.5" / 104.64x62.23x6.35cm
With Stand: 38.4lbs / 17.41kg
Without Stand: 30lbs / 13.60kg
