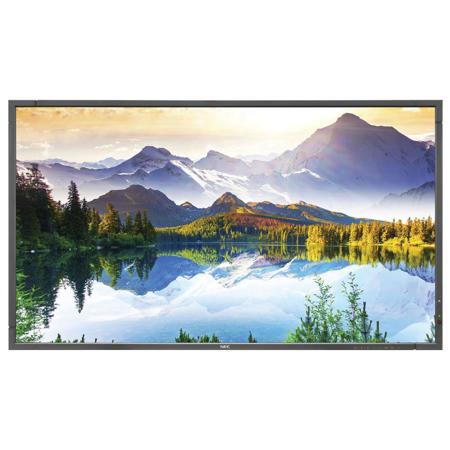

NEC E905 90" Full HD Commercial-Grade LED Display Monitor
See all NEC items

NEC E905 90" Full HD Commercial-Grade LED Display Monitor, 1920x1080

SKU: NCE905
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

NEC E905 Specifications

  • Panel Technology

    UV2A

  • Viewable Image Size

    90"

  • Native Resolution

    1920 x 1080

  • Pixel Pitch

    1.04mm

  • Backlight Type

    LED Edge-lit

  • Brightness

    280cd/m2 (typical)
    350cd/m2 (maximum)

  • Contrast Ratio

    5000:1 (typical)

  • Viewing Angle

    Vertical: 176 deg.
    Horizontal: 176 deg.
    (88U/88D/88L/88R) at CR>10

  • Response Time (Gray to Gray)

    4ms

  • Refresh Rate

    60Hz

  • Aspect Ratio

    16:9

  • Active Screen Area

    78.5 x 44.1" / 199.39 x 112.01cm

  • Orientation

    Landscape

  • Colors

    More than 16.7 million

  • Horizontal Synchronization Range

    15.625 / 15.734 / 26.973 / 28.125 / 31.5-91.1kHz (Analog/Digital)

  • Vertical Synchronization Range

    24/25/30/50 - 85.0Hz

  • Video Input Signal

    Analog RGB 0.7Vp-p/75Ohms Digital TMDS / DisplayPort

  • Sync Input Signal

    Separate sync: TTL Level (Positive/Negative)
    Composite sync: TTL Level (Positive/Negative)
    Composite sync on green: (0.3Vp-p negative 0.7Vp-p positive)

  • PC Signal Compatibility

    Yes

  • Macintosh Compatibility

    Yes

  • Connectivity: Input Terminals

    Digital: DisplayPort, 2x HDMI, DVI
    Analog: VGA 15-pin D-sub
    Audio: 2x Audio Mini-Jack
    External Control: Ethernet (RJ45), RS-232C

  • Connectivity: Output Terminals

    Audio: 2x Audio Mini-Jack, External Speaker Jack

  • Bezel Width

    Left x Right: 1.2 x 1.2" / 3.05 x 3.05cm
    Top x Bottom: 29.7 x 29.7" / 75.44 x 75.44cm

  • VESA Hole Configuration Specifications

    400 x 400mm

  • Power Consumption: On

    270W (typical)

  • Power Consumption: ECO Mode Standby

    <2.5W (typical)

  • Operating Temperature

    32 to 104 deg. F / 0 to 40 deg. C

  • Storage Temperature

    -4 to 140 deg. F / -20 to 60 deg.C

  • Operating Humidity

    20 to 80%

  • Storage Humidity

    10 to 90%

  • Operating Altitude

    9843' / 3000.15m

  • Storage Altitude

    40000' / 12192m

  • Additional Functions

    Integrated Temperature Sensors
    thermodynamic cooling fans
    Ethernet control and communication
    RS-232Control and communication
    AMX Beacon Compatible, Crestron Connected Compatible
    Full 24/7 Scheduler
    OPS expansion slot
    Custom Input Detect Options
    Auto Power On Integrated 10W Speakers Full Steel Chassis Plug and Play DDC2B Full Scheduler Function

  • Dimensions (W x H x D)

    With stand: 81.0 x 48.2 x 23.9" / 205.74 x 122.43 x 60.71cm
    Without stand: 81.0 x 46.7 x 4.9" / 205.74 x 118.62 x 12.45cm

  • Weight

    With stand: 188.7lbs / 85.59kg
    Without stand: 178.6lbs / 81.01kg

About NEC E905

NEC's 90" Large Screen E905 delivers a cost-effective solution while maintaining the extensive feature set and high visual quality that's expected with a commercial grade display. With its extremely large size, full external control and expanded connectivity, this display is the ideal solution for all boardroom, conference room and meeting room type of applications.

NEC E905 Features

  • Full bi-directional external control via both RS232 and LAN
  • Expanded terminal interface including 2 HDMI, DisplayPort, DVI and VGA connections
  • OPS slot available for simple integration of multiple accessories such as a digital tuner, HDBaseT, or OPS-DRD

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Full bi-directional external control via both RS232 and LAN

What's in the box:

  • NEC E905 90" Full HD Commercial-Grade LED Display Monitor
  • Power Cord
  • 1.8m DVI-D Cable
  • Wireless Remote Control
  • Batteries
  • CD-ROM (User Manual)
  • Option Board Slot Cover
  • Screws
  • Thumbscrews
  • NEC 3 Year Parts and Labor Limited Warranty (Including Backlight)
