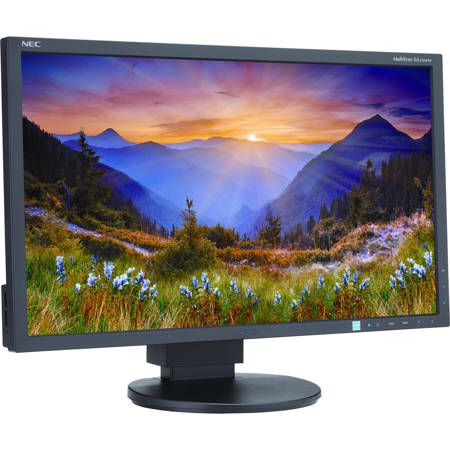

NEC EA234WMI 23" Widescreen LED-Backlit Desktop Monitor with IPS Panel, 1920 x 1080, 250cd/m2, 1000:1 Contrast Ratio, HDMI/DisplayPort/DVI-D/VGA

See all NEC items
SKU: NCEA234WMIBK MFR: EA234WMI-BK
NEC EA234WMI: Picture 1 thumbnail NEC EA234WMI: Picture 2 thumbnail NEC EA234WMI: Picture 3 thumbnail NEC EA234WMI: Picture 4 thumbnail NEC EA234WMI: Picture 5 thumbnail NEC EA234WMI: Picture 6 thumbnail NEC EA234WMI: Picture 7 thumbnail NEC EA234WMI: Picture 8 thumbnail

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 1 Year Replacement Plan + $19.95
  • New Leaf 3 Year Extended Warranty + $34.95
  • New Leaf 3 Year Drops & Spills Extra Protection + $49.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $74.95

Our Price

$239.99
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About NEC EA234WMI

The NEC EA234WMI 23" Widescreen LED-Backlit Desktop Monitor with IPS Panel is ideal for corporate environments. It is designed to enhance work performance, the widescreen monitor features IPS panel technology with wide viewing angles, 4-way ergonomic adjustability and 25000: 1 dynamic contrast ratio. It delivers a completely redesigned chassis with a host of enhanced features, advanced technologies, future-proof connectivity and environmentally friendly benefits. The monitor boasts excellent color accuracy and minimal viewing angle shift.

The LED backlighting of the monitor allows for a slimmer profile, lighter weight and increased power savings compared to previous generation models. The LED backlight technology not only reduces power by up to 52% compared to their predecessors, but also leads to a 30% thinner and 25% lighter chassis. The ControlSync technology allows users to control up to six EA234WMI displays in a multi-monitor configuration.

The Smart Sensing technology automatically detects your work conditions and adjusts display brightness with ambient light and human sensors, while a comprehensive input panel, including HDMI, DisplayPort, DVI-D, VGA and 4-port USB hub, connects users to up-to-date peripherals and future-proofs your investment. Other green features include Eco Mode, a carbon footprint meter and an ambient light sensor that automatically adjusts the brightness to the optimal setting depending on ambient lighting, screen content or both, conserving power up to 87% compared to typical energy consumption. In addition, the human sensor detects user activity in front of the monitor and reduces display power up to 95% with inactivity.

NEC EA234WMI Features

  • Four-Way Ergonomic Stand: Boasts pivot, tilt, swivel and height adjustment up to 5.1" (130mm) to maximize your viewing comfort
  • Touch-Sensitive On-Screen Display Controls: The controls are integrated into the bezel, making display adjustments easier than ever
  • Integrated 4-Port USB 2.0 Hub: Connects to your peripherals easily
  • Comprehensive Input Panel: The panel includes DisplayPort, HDMI, DVI-D and 15-pin VGA connectors, which connect you to up-to-date peripherals and future-proofs your investment
  • Space-Saving Multimedia Speakers: Enhance your computing experience; speakers are hidden to maintain the monitor's aesthetic appeal (headphone jack also included)
  • Customize Setting: Allows you and IT administrators to set and restore preferred settings with just one touch, contributing to a free-seating business environment
  • Smart Sensing Technology: Includes ambient light and human sensors, which considerably reduce power consumption by automatically detecting your work conditions and adjusting display brightness or entering Power Saving Mode
  • NaViSet Software: Offers an intuitive graphical interface, allowing for easy adjustment of display settings via mouse and keyboard. NaViSet administrator provides all the advanced controls to remotely located IT professionals
  • EPEAT Gold Compliance: Ensures that the displays reduce hazardous waste and electricity usage, resulting in lower energy costs and increased protection for the environment
  • ControlSync: Allows you to control up to six units in a multi-monitor configuration. Upon establishing one unit as the master, it enables you to control many performance attributes of a multi-monitor setup in unison through the master monitor
  • Ambix: Allows up to two inputs (VGA and DVI-I) to be connected to a single monitor and for each of the three signals to be displayed with the press of a button
  • Rapid Response: Delivers virtually uninterrupted, undistorted viewing of high-speed, full-motion video
  • XtraView+: Delivers wide viewing angles of up to 178deg. horizontally and vertically (up to 89deg. up, down, left and right) with less color shift and without any glare, reflection or distortion
  • No Touch Auto Adjust: Allows the monitor to be automatically adjusted to optimal image settings when initially turned on
  • LED Backlight: Provides for industry-leading low power consumption and less hazardous materials
  • Carbon Footprint Meter: Informs and motivates responsible use of the display by calculating and tracking the conservation of green gas emissions in real-time

NEC EA234WMI Specifications

Panel Technology
IPS
Viewable Image Size
23"
Aspect Ratio
16:9
Native Resolution
1920 x 1080
Pixel Pitch
0.27mm
Pixels Per Inch
96 at native resolution
Backlight Type
W-LED
Brightness (typical)
250cd/m2
Contrast Ratio (typical)
1000:1
Viewing Angle (typical)
178deg. Vert., 178deg. Hor. (89U/89D/89L/89R) at CR>10
Response Time (typical)
6ms
Displayable Colors
More than 16.7 million
Synchronization Range: Horizontal
31.5-83 kHz (Analog/Digital)
Synchronization Range: Vertical
56-75 Hz
Input Signal: Video
Analog RGB 0.7 Vp-p/75 Ohms
Input Signal: Sync
Separate Sync: TTL Level (Positive/Negative)
Composite Sync: TTL Level (Positive/Negative)
Composite Sync on Green: (0.3Vp-p negative 0.7Vp-p positive)
Input Connectors
DisplayPort, DVI-D, HDMI, VGA 15-pin D-sub
Power Consumption (typical) On
27 W
Power Savings Mode
0.41W
VESA Hole Configuration
100 x 100mm
Operating Temperature
41-95deg.F / 5-35deg.C
Operating Humidity
20-80%
Operating Altitude
6562 ft. / 2000m
Storage Temperature
14-140deg.F / -10-60deg.C
Storage Humidity
10-85%
Storage Altitude
40,000 ft. / 12,192m
ENERGY STAR
6.0
TCO
5.2
EPEAT
Gold
RoHS
Yes
Dimensions (WxHxD)
With Stand: 21.4x15.0-20.1x8.6" / 54.35x38.1-51.05x21.84cm
Without Stand: 21.4x12.7x2.4" / 54.35x32.25x6.09cm
Weight
With Stand: 14.1lbs / 6.39kg
Without Stand: 8.8lbs / 3.99kg
Mfr #
EA234WMI-BK
SKU
NCEA234WMIBK
