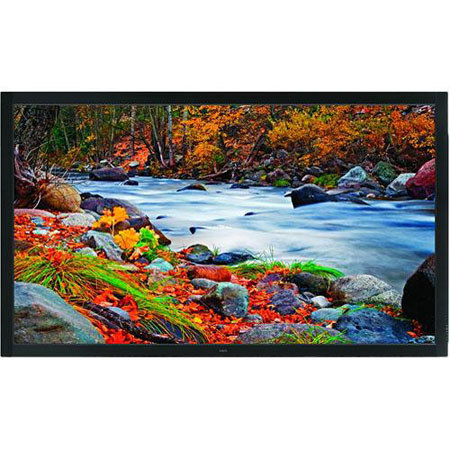

NEC LCD8205 82" Professional-Grade Large-Screen LCD Display, 1920x1080 Resolution, 16:9 Aspect Ratio, 60 Hz Refresh Rate

Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Free Shipping
Add to Wishlist

About the NEC LCD8205

Enhance your image in a big way with the 82" NEC LCD8205, a professional-grade display that delivers big-screen performance and capabilities for your corporate and digital signage applications. Its sheer size (landscape orientation provides an active screen area of almost 6 ft in width and more than 3 ft in height) captures the attention of audiences both near and far. And with full high-definition resolution, lightning-quick response times, the widest possible viewing angles and high brightness/contrast, your images and messaging keep all eyes on the screen. This level of performance makes this display ideal for corporate lobbies and boardrooms, digital signage applications and tradeshows/events, leaving positive, lasting impressions.

NEC LCD8205 Includes

  • NEC LCD8205 82" Professional-Grade Large-Screen Display
  • Power Cord
  • VGA Cable (Mini 15-Pin D-Sub)
  • Wireless Remote Control
  • Batteries
  • CD-ROM (User Manual)
  • Clamp
  • Eyebolts
  • Hanger Bolts
  • Washers
  • Screws
  • NEC 3 Year Parts and Labor Limited Warranty

NEC LCD8205 Features

  • Industrial-strength, premium-grade panel with additional thermal protection, internal temperature sensors with self-diagnostics and fan-based technology
  • TileMatrix allows you to create video walls up to 4 x 4
  • Comprehensive input panel connects you to the latest peripherals, including HDMI, DVI-I, Composite RCA (2), S-Video, Component BNC, Audio (4)
  • Full 1080p high-definition resolution provides stunning detail
  • Protective-glass and touch-panel-ready design provides opportunities for module protection and interactivity
  • Multiple picture modes adjust the picture appearance for an optimal viewing experience

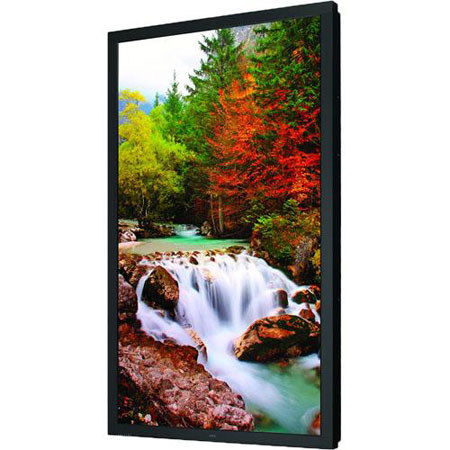

  • Landscape and portrait capability allows for distortion-free display of content in various orientations

NEC LCD8205 Specifications

Panel Technology SPVA (P-DID)
Viewable Image Size 82"
Native Resolution 1920 x 1080
Pixel Pitch 0.94mm
Backlight Type CCFL
Pixels Per Inch 26@ native resolution
Brightness (typical) 600cd/m2
Contrast Ratio (typical) 2000:1
Viewing Angle 178deg. Vert., 178deg. Hor. (89U/89D/89L/89R) @ CR>10
Response Time(Gray to Gray) 8ms
Refresh Rate 60Hz
Aspect Ratio 16:9
Active Screen Area 71.1 x 40 in. / 1805.8 x 1015.7mm
Orientation Landscape/Portrait
Displayable Colors More than 16.7 million
Synchronization Range Horizontal (Analog/Digital): 20-82 kHz
Vertical: 50-85 Hz
Input Signal Video: Analog RGB 0.7 Vp-p/75 Ohms
Sync: Separate sync: TTL Level (Positive/Negative)
Composite sync: TTL Level (Positive/Negative)
Composite sync on green: (0.3Vp-p negative 0.7Vp-p positive)
PC Signal Compatibility Yes
Macintosh Compatibility Yes
Input Terminals Digital: HDMI, DVI-I
Analog: RCA Composite (2), RCA (Y, Cb/Pb, Cr/Pr) Component, S-Video
Audio: RCA Audio (2), Stereo Mini-Jack, HDMI Audio
External Control: RS-232C, IR Remote, DDC/CI
Output Terminals Audio: External Speaker Jack (2), Optical Digital Audio Out
Power Consumption (typical) On: 740W
ECO Mode Standby: <15W
VESA Hole Configuration 1200 x 800mm (8-hole)
Operating Temperature 41-104deg.F / 5-40deg.C
Operating Humidity 20-80%
Operating Altitude 9843 ft. / 3000m
Storage Temperature -4-140deg.F / -20-60deg.C
Storage Humidity 10-90%
Storage Altitude 40,000 ft. / 12,192m
Bezel Width (Left/Right, Top/Bottom) 2.3 in./2.3 in., 2.3 in./2.3 in.; 58mm/58mm, 58mm/58mm
Dimensions (W x H x D) Without Stand: 75.8" x 44.8" x 5.9" / 1925.32 x 1137.92 x 149.86 mm
Weight Without Stand: 291 lbs / 131.10 kgs
