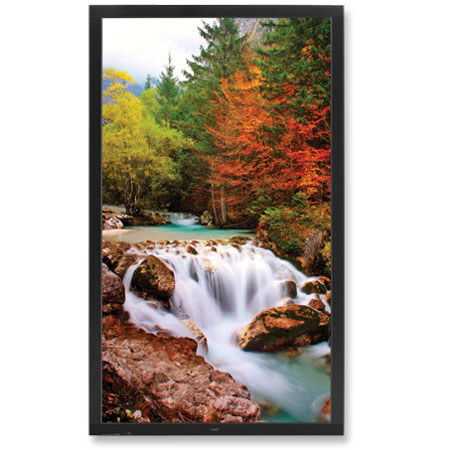

NEC LCD8205-P 82" Professional-Grade Large-Screen LCD Display, 1920x1080 Resolution, 8ms Response Time, Protective Panel

Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

Add to Wishlist

About the NEC LCD8205-P

The NEC LCD8205-P 82" Professional-Grade Large-Screen LCD Display delivers big-screen performance and capabilities for your corporate and digital signage applications. Its sheer size (landscape orientation provides an active screen area of almost six feet in width and more than three feet in height) captures the attention of audiences both near and far.

With full high-definition resolution, lightning-quick response times, the widest possible viewing angles and high brightness/contrast, your images and messaging keep all eyes on the screen. This level of performance makes this display ideal for corporate lobbies and boardrooms, digital signage applications and tradeshows/events, leaving positive, lasting impressions.

NEC LCD8205-P Includes

  • NEC LCD8205-P 82" Professional-Grade Large-Screen LCD Display
  • User's Manual
  • Power Cord
  • Video Signal Cable
  • Remote Control
  • AAA Battery x 2
  • Clamp
  • Screw x 2
  • CD-ROM
  • Eyebolt x 2
  • Washer x 2
  • Hanger Bolt x 8
  • NEC 3 Year Parts & Labor Limited Warranty

NEC LCD8205-P Features

  • Industrial-strength, premium-grade panel with additional thermal protection, internal temperature sensors with self-diagnostics and fan-based technology
  • TileMatrix allows you to create video walls up to 4 x 4
  • Comprehensive input panel connects you to the latest peripherals, including HDMI, DVI-I, Composite RCA (2), S-Video, Component BNC, Audio (4)
  • Full 1080p high-definition resolution provides stunning detail
  • Protective-glass and touch-panel-ready design provides opportunities for module protection and interactivity
  • Multiple picture modes adjust the picture appearance for an optimal viewing experience
  • Landscape and portrait capability allows for distortion-free display of content in various orientations

NEC LCD8205-P Specifications

Panel Technology SPVA (P-DID)
Viewable Image Size 82"
Native Resolution 1920 x 1080
Pixel Pitch 0.94mm
Backlight Type CCFL
Pixels Per Inch 26@ native resolution
Brightness (typical) 600cd/m2
Contrast Ratio (typical) 2000:1
Viewing Angle 178deg. Vert., 178deg. Hor. (89U/89D/89L/89R) @ CR>10
Response Time(Gray to Gray) 8ms
Refresh Rate 60Hz
Aspect Ratio 16:9
Active Screen Area 71.1 x 40 in. / 1805.8 x 1015.7mm
Orientation Landscape/Portrait
Displayable Colors More than 16.7 million
Synchronization Range: Horizontal 20-82 kHz (Analog/Digital)
Synchronization Range: Vertical 50-85 Hz
Input Signal: Video Analog RGB 0.7 Vp-p/75 Ohms
Input Signal: Sync Separate sync: TTL Level (Positive/Negative)
Composite sync: TTL Level (Positive/Negative)
Composite sync on green: (0.3Vp-p negative 0.7Vp-p positive)
PC Signal Compatibility Yes
Macintosh Compatibility Yes
Input Terminals Digital: HDMI, DVI-I
Analog: RCA Composite (2), RCA (Y, Cb/Pb, Cr/Pr) Component, S-Video
Audio: RCA Audio (2), Stereo Mini-Jack, HDMI Audio
External Control: RS-232C, IR Remote, DDC/CI
Output Terminals Audio: External Speaker Jack (2), Optical Digital Audio Out
Power Consumption (typical) On: 740W
ECO Mode Standby: <15W
VESA Hole Configuration 1200 x 800mm (8-hole)
Operating Temperature 41-104deg.F / 5-40deg.C
Operating Humidity 20-80%
Operating Altitude 9843 ft. / 3000m
Storage Temperature -4-140deg.F / -20-60deg.C
Storage Humidity 10-90%
Storage Altitude 40,000 ft. / 12,192m
Bezel Width (Left/Right, Top/Bottom) 2.3 in./2.3 in., 2.3 in./2.3 in.; 58mm/58mm, 58mm/58mm
Dimensions (WxHxD) Without Stand: 75.8 x 44.8 x 6.3 in. / 1925 x 1137 x 160mm
Weight Without Stand: 345.4 lbs. / 157 kg
