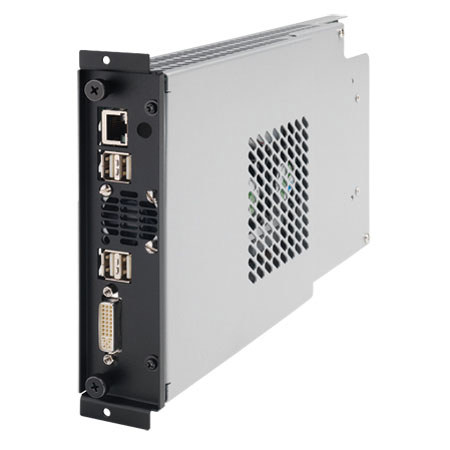

NEC NET-SBC-04 Windows 7 Embedded 1.6GHz Dual Core Atom Single-Board Computer, 2GB RAM, 160GB SATA HDD - for Digital Signage Displays
Your card will only be charged once item ships.
Ways to Save
The NEC NET-SBC-04 Windows 7 Embedded 1.6GHz Dual Core Atom Single-Board Computer with a 1.6GHz CPU offers the robust flexibility and performance required to process digital signage content. Used with select NEC displays' expansion slots, this solution eliminates the need for an external PC, cabling, mounting and power supply. It provides for clean, hidden integration, while reducing the bill of materials needed for installation and eliminating the hassle of hiding hardware equipment.
In addition, the ability to drive discrete images on two different displays from one SBC via a DVI-I output allows for greater functionality while further reducing cost. These benefits make NEC's single board computer ideal for markets such as transportation, public information, corporate, retail and rental staging.
|Operating System||Microsoft Windows 7 Embedded|
|CPU||1.6 GHz Dual Core Atom|
|Hard Drive||160GB SATA|
|Video Output||Internal DVI (up to 1080p 60Hz), External DVI|
|Audio Output||Internal Stereo|
|Network Connections||External LAN (10/100/1000BASE-T)|
|Control I/O||External USB 2.0 x 4, Internal RS-232|
|Video Format Support||MPEG2, MPEG4 part 2, MPEG4 part 10 (H.264), WM9/VC-1|
|Graphics Format Support||JPEG|
|Audio Format Support||MP3, PCM, AAC|
|Network Protocol Support||Internet (IP, TCP, UDP, ICMP, ARP, DHCP, HTTP, FTP, IGMP, RTP, RTSP, SNMP)|
|Power||Internal Power Supply, Power Dissipation (30W)|
|Operating Temperature||32deg. - 104deg.F / 0deg. - 40deg.C|
|Operating Humidity||80% maximum relative humidity, non-condensing|
|Certifications||FCC, Section 15|
|Compatibility||EC P Series, V422, V462, V551, V651, X431BT, X462UN, X461UNV, X461HB, X462UN, X551UN|
|Dimensions (WxHxD)||6.5x1.5x11" / 16.51x3.81x27.94cm|
|Weight||2lbs / 0.90kg|
