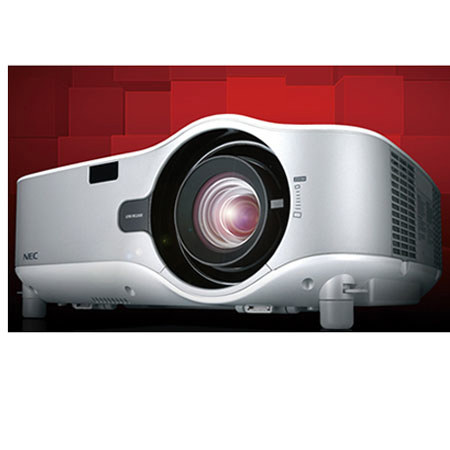

NEC NP3150 5000 ANSI Lumens 0.8" UXGA LCD Projector, 600:1 Contrast Ratio, 4:3 Aspect Ratio, 1600x1200 UXGA Max Resolution, 38dB Quietness

Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

Free Expedited Shipping
Add to Wishlist

About the NEC NP3150

The NEC NP3150 5000 ANSI Lumens 0.8" UXGA LCD Projector supports "Windows Network Projector" function, which is one of the brand-new features introduced with Windows Vista. You can make presentations from your PC via the network without connecting RGB cable, if your PC is running Windows Vista. You don't need to install any proprietary software application on your PC. Like using a networked printer, you can simply select which projector to use from the list presented on your PC screen. Furthermore, it is possible to remotely operate a PC installed some distance away from the projector via the network by using "Windows Remote Desktop" function.

HD-like, vivid and crisp DVD images can be projected with the Reon VX video processor using HQV technology from Silicon Optix. HQV represents an enormous leap in video processing, with true flagship performance in noise reduction, de-interlacing and scaling.

By connecting a LAN cable to the LAN port (RJ-45) on the projector or installing the wireless LAN unit on the projector, it is possible to transfer screen images from the PC to the projector more quickly (2 to 3 times faster than conventional models from NEC) for on-screen presentation using Image Express Utility 2.0 software (Windows XP/2000 are available). This projector can change presenters with a single operation. The person who wants to speak can send images from his/her PC to the projector just by clicking the "Become a Presenter" button. Furthermore, for a presentation in a large conference room, participants can confirm details of the projected images, such as small characters, etc., with their own PCs. A presenter can distribute files or documents used in the presentation through the network. And it is possible to turn the power of the projector on and off and switch input signals from a PC via the network.

NEC NP3150 Includes

  • NEC NP3150 5000 ANSI Lumens 0.8" UXGA LCD Projector
  • Remote Control
  • Remote Control Cable
  • Batteries
  • Power Cord
  • RGB Signal Cable
  • Lens Cap
  • User's Manual on CD-ROM
  • Quick Start Guide
  • Wired and Wireless Network Setup Guide
  • PC Card Lock
  • Lens Anti-theft Screw
  • NEC Warranty

NEC NP3150 Features

  • 3D Reform: Allows you to square the image by adjusting horizontally, vertically or diagonally when the projector cannot be placed parallel or perpendicular to the screen
  • Advanced AccuBlend: Ensures detailed images when nonnative resolution sources are connected to the projector
  • Direct power off: Protects the lamp by enabling the cooling fan to continue running after power is disconnected
  • Built-in wall color correction presets: Provide for adaptive color tone correction to display properly on non-white surfaces
  • AutoSense: Automatically syncs with any computer signal and features one-touch image optimization
  • Kensington lock slot: Enables security cable to be attached to the projector
  • 64-step image magnification with location control
  • Sleep timer can be set to automatically turn off the projector
  • Discreet source keys for source selection
  • Computer-free presentations via USB drive or PCMCIA card inserted directly into the projector allows you to change images using the wireless remote control provided
  • High-speed wireless IEEE802.11g and improved circuitry provide communication up to three times faster
  • Built-in HTTP page for control and monitoring over a LAN network. E-mail notification of error messages or lamp end-of-life can be sent to remote locations

NEC NP3150 Specifications

LCD Panel 0.8-inch (1024x768) p-Si TFT active-matrix with MLA (Aspect Ratio 4:3)
Manual Zoom / Focus Lens Throw ratio 1.5-2.0:1, F1.7-2.2, f=24.4-32.5mm (Standard Lens)
Manual Shift Lens Horizontal: max±0.1H / Vertical: max+0.5V
Projection Distance 0.89m to 20.8m (Standard Lens)
Projection Angle 0 to 14.4deg (Wide) / 0 to 10.8deg (Tele)
Lamp (Eco Mode) 330W (264W) AC
Lamp Life (Eco Mode) 2000H (3000H)
Light Output Normal Mode: 5000 ANSI lumens
Eco Mode: Approx. 80% of Normal
Contrast Ratio (White / Black) 600:1
Quietness(Eco Mode) 38dB (31dB)
Image Size (Diagonal) 30inch to 500inch (0.76m to 12.7m) (Standard Lens)
Maximum Resolution UXGA 1600 x 1200 (1400 x 1050 @ 60Hz on DVI-D)
Synchronization Range Horizontal: 15kHz to 108kHz (RGB: 24kHz or over)
Vertical: 48Hz to 120Hz
Video Bandwidth RGB: 165MHz (Maximum sampling rate)
Color Reproduction Full Color, 16.7Million Colors Simultaneously
Input Terminals: 3 Computer Input VGA, SVGA, XGA, SXGA, SXGA+, UXGA
0.7Vp-p/75 Ohms
4.0Vp-p/TTL Level
1.0Vp-p/75 Ohms(with Sync) Negative Polarity
0.5Vrms/22k Ohms or over
T.M.D.S. Specification, with H.D.C.P., Max Resolution: SXGA+/60Hz
0.5Vrms/22k Ohms or over
Input Terminals: 3 Component Input 1.0Vp-p/75 Ohms(with Sync)
0.7Vp-p/75 Ohms
480i, 480p, 720p, 1080i/60Hz576i, 576p, 1080i/50Hz
DVD Progressive (50/60Hz)
0.5Vrms/22k Ohms or over
Input Terminals: Video Input NTSC/NTSC4.43/PAL/PAL-N/PAL-M/PAL-60/SECAM
1.0Vp-p/75 Ohms
0.5Vrms/22k Ohms or over
Input Terminals: S-Video Input Y: 1.0Vp-p/75 Ohms
C: 0.286Vp-p/75 Ohms
Output Terminals: Monitor Output 1 D-Sub Mini 15pin: Selected Computer 1/2 or Component Signal
Output Terminals: Audio Output Stereo L / R: Selected Computer1/2/3, Component, Video or S-Video Signal
Control Terminals USB2.0 High Speed
IEEE 802.11b/g (NP01LM1 / NP01LM5)
Wired Remote Control
Built-In Speaker 5W+5W Stereo
Keystone Correction Horizontal: Manual Approx.± Max 40 degrees (Standard Lens)
Vertical: Manual Approx.± Max 30 degrees (Standard Lens)
Operational Temperatures 5deg. C to 40deg. C(Eco Mode selected automatically at 35deg. C to 40deg. C), 20% to 80% Humidity(Non-Condensing)
Storage Temperatures -10deg. C to 50deg. C, 20% to 80% Humidity (Non-Condensing)
Power Requirement 100 to 240V AC, 50Hz/60Hz
Input Current 5.9-2.3A
Power Consumption Normal Mode: 490W
Eco Mode: 410W
Standby Mode: 26W
Regulations UL Approved (UL 60950-1), NOM-001-SCFI-1993, Meets FCC Class B Requirements
Dimensions (W x H x D) 399mm x 150.5mm x 358mm / 15.70 x 5.92 x 14.09"
Net Weight 7.3kg / 16.09 lbs
