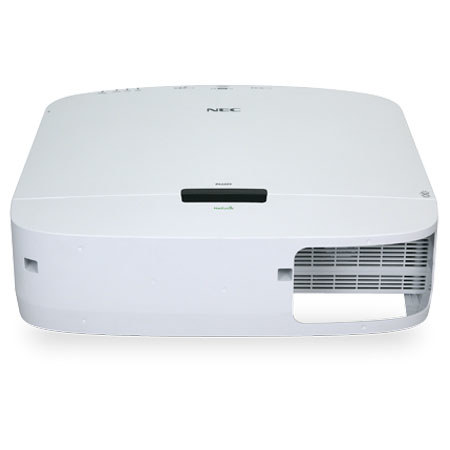

NEC NP-PA500U Professional Installation Projector, 5000 Lumens, 1920x1200 WUXGA Resolution, 2000:1 Contrast Ratio, 4000 Hours Eco Lamp Life

See all NEC items
SKU: NCNPPA500U MFR: NP-PA500U
NEC NP-PA500U: Picture 1 thumbnail NEC NP-PA500U: Picture 2 thumbnail NEC NP-PA500U: Picture 3 thumbnail NEC NP-PA500U: Picture 4 thumbnail NEC NP-PA500U: Picture 5 thumbnail NEC NP-PA500U: Picture 6 thumbnail NEC NP-PA500U: Picture 7 thumbnail
Free Shipping

See all shipping options

Temporarily On Backorder - Although this item is temporarily on Backorder, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped. learn more / Notify when in stock

Our Price

$3,737.21
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

NEC NP-PA500U: Picture 1 regular $3,737.21

About NEC NP-PA500U

The NEC NP-PA500U 5000 Lumens Professional Installation Projector is designed for advanced professional installations and appeases corporate and higher education users. With integrated RJ45, optional high-speed wireless (LAN IEEE 80.11b/g/n) and a multitude of simple-to-use asset management technologies, the PA500U helps users present seamlessly without worrying about their technology.

The industry's first built-in stacking correction capabilities (up to four projectors) allows the projectors to boost an image's brightness up to 20,000 lumens, which is ideal for larger-sized screens and environments with heavy ambient light. This feature also prevents the complete loss of an image, which can happen when using only one projector.

NEC NP-PA500U Features

  • ECO Mode technology helps extend lamp life and lowers power consumption
  • 5000-lumen brightness enhances images for most applications
  • HQV technology delivers superior home theater video processing
  • Windows Network Projector function simplifies your ability to present from any computer, whether local or remote
  • Geometric Correction Tool allows you to easily project square images on non-flat screen surfaces without distortion
  • AutoSense automatically syncs with any computer signal and features one-touch image optimization
  • Complete line of (5) bayonet-style lenses allows for quick and easy lens exchange (Lens does not ship with product)
  • Stacking correction capabilities (up to four projectors) allows the projectors to boost an image's brightness up to 20,000 lumens

NEC NP-PA500U Specifications

Display Technology
0.76" LCD w/ MLA
Light Output(Lumens)
5000 normal / Eco = approx. 80% of normal mode
Resolution
Native: WUXGA 1920 x 1200
Maximum: WUXGA 1920 x 1200
Contrast Ratio (up to)
2000:1
Lamp Type
330W AC / 264W eco
Lamp Life (up to)
3000 hours normal / 4000 hours eco
Screen Size (diagonal)
25 to 500 in. / 0.64 to 12.7m
Throw Ratio
Variable
Projection Distance
2.5 to 68.5 ft. / 0.74 to 20.9m
Projector Angle
10.3 to 10.8deg. tele / 13.7 to 14.5deg. wide
Lens: Zoom
1 to 1.33
Lens: Focus
Manual
Lens: F number, fnumber
F=1.7 to 2.2, f=24.4 to 32.5mm
Lens: Shift
Mechanical -0.1 to +0.5 vertical, +/-0.3 horizontal
Keystone Correction
+/- 40deg. horizontal, +/- 30deg. vertical
Scan Rate: Horizontal
15-108 kHz
Scan Rate: Vertical
48-120 Hz
Supported Video Standards
NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM
SD/HD Video Signal Compatibility
480i, 480p, 576i, 576p, 720p, 1080i, 1080p
PC Signal Compatibility
VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA
Macintosh Compatibility
Yes
Input/Output Terminals
RGB1(analog): VGA 15-pin D-sub
RGB2(analog): VGA 15-pin D-sub
RGB3(analog): 5-BNC
RGB4(digital): HDMI w/ HDCP
RGB5(digital): DisplayPort
Video 1: RCA
Video 2: S-Video
Audio 1: Mini stereo
Monitor out: VGA 15-pin D-sub
Audio out: Yes
Audio
10W mono
External Control
RS-232, IR, Wired LAN, DDC/CI, USB, Wireless LAN (optional)
Sync Compatibility
Separate Sync / Composite Sync / Sync on G
Networking
RJ-45 Monitoring
Power Requirements
100-240V AC, 50/60 Hz
Input Current
5.1A
Power Consumption (Normal/ECO Mode)
464W / 372W
Power Consumption (Standby/Power Saving)
16W / 0.2W
Optional Lenses
NP11FL, NP12ZL, NP13ZL, NP14ZL, NP15ZL
Installation Orientation
Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear
Fan Noise
38 dB normal / 32 dB eco
Regulations
USA UL 1950 FCC Class B, Canada CSA 950 (C-UL), NOM
Operating Temperature
41-104deg.F / 5-40deg.C
Humidity
20-80% non-condensing
Storage
-14-122deg.F / -10-50deg.C
Dimensions (WxDxH)
19.7x14.4x6.5" / 500.38x366x165.1mm
Weight
17.2 lbs. / 7.8 kg
Mfr #
NP-PA500U
SKU
NCNPPA500U
