NEC

NEC OPS-PCAF-H Open Pluggable Specification PC, AMD Dual Core Fusion T56N 1.6GHz, 160GB HDD, Integrated HD 6310 GPU, No OS

SKU: NCOPSPCAFH MFR: OPS-PCAF-H
Ships in 1-2 business days
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$800.00
Free Shipping
Qty:

Add to Wishlist In Stock

About this item

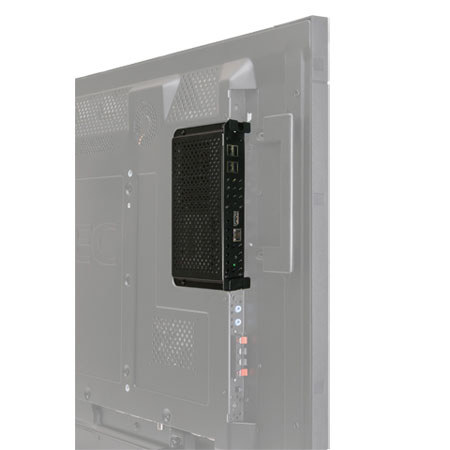

Enjoy seamless integration within your NEC display. The NEC OPS-PCAF-H Open Pluggable Specification (OPS) is the industry's first standardized input, which increases flexibility for users of any digital signage application. This OPS single board computers feature a 1.6 GHz AMD Dual Core Fusion CPU and were designed with display integration in mind. Used with select NEC displays' expansion slots, this solution eliminates the need for an external PC, cabling, mounting and power supply. Featuring dual video outputs with DVI for internal display support and DisplayPort for external display support, the units also include integrated Display Control via an internal RS-232 connection. This module has been optimized for reliable 1080p video playback and, with support for Windows OS, has the flexibility to run most third-party software and custom applications. These benefits make NEC's OPS single board computer ideal for markets such as digital signage, quick-service restaurants, education, medical, retail and rental staging.

Key Features

  • No external connections required. PC signal, audio and control signals all passed internally from display to OPS device
  • Seamless design provides for clean, hidden integration that eliminates the need for external components
  • Service can be performed while the display is still mounted, simplifying installation and reducing maintenance
  • 1.6 GHz AMD Dual Core Fusion CPU with integrated HD 6310 GPU offers flexibility for robust performance to process digital signage content, rendering beautiful imagery
  • True 1080P video with hardware assisted support for formats such as MPEG2, H.264 and WM9
  • Small but powerful with an all-metal chassis make this an ideal solution for commercial applications requiring an integrated PC

Technical Specs

Operating System No
CPU 1.6 GHz AMD Dual Core Fusion (T56N)
GPU Integrated HD 6310
RAM 2GB DDR3
Hard Drive 160GB
Video Output External DisplayPort
Audio Output External DisplayPort
Network Connections Gigabit Ethernet
Control I/O USB 2.0 x 4
Video Format Support 1080p, MPEG/2, H.264, WM9
Graphics Format Support JPEG, BMP, TIFF, GIFF
Browser Support HTML, Flash, Javascript
Audio Format Support MP3, PCM, AAC
Network Protocol Support Internet (IP, TCP, UDP, ICMP, ARP, DHCP, HTTP, FTP, IGMP, RTP, RTSP, SNMP)
Power 16VDC Input Voltage, Power Dissipation (35W)
Operating Temperature 32deg. - 104deg.F / 0deg. - 40deg.C
Operating Humidity 80% maximum relative humidity, non-condensing
Certifications CE, FCC Section 15
Compatible with NEC X461S, X551S
SB-02AM: NEC V422, V462, V551, V651, P402, P462, P552, P702, X551UN
Dimensions (WxHxD) 7.1x1.2x4.6" / 18.03x3.04x11.68 cm
Weight 2.5 lbs / 1.13 kg
