NEC

NEC OPS-PCAFQ-WS Open Pluggable Specification PC, AMD Quad Core Fusion A8-3500M 1.5 GHz, 2GB RAM, 32GB SSD, Windows 7 Embedded

SKU: NCOPSPCAFQWS MFR: OPS-PCAFQ-WS
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$1,200.00
Free Shipping
Qty:
Add to Wishlist

About this item

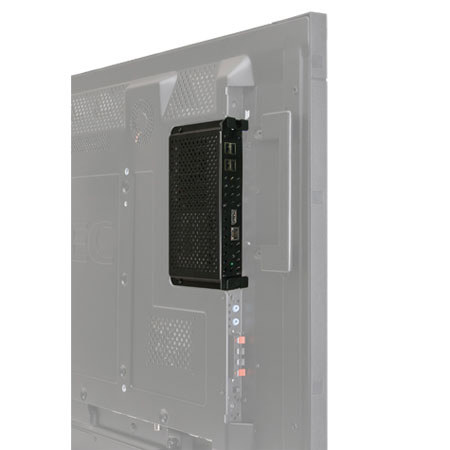

Enjoy seamless integration with NEC OPS-PCAFQ-WS internal AMD Fusion-based PCs that adhere to the Open Pluggable Specification (OPS) and increase the operational flexibility of a compatible NEC display for any digital signage application.

Key Features

  • No external connections required. DVI video, stereo audio, RS232 control and power are all passed internally from display to OPS device, allowing for seamless, hidden integration and simplified installation
  • Powerful 1.5 GHz Quad Core AMD Fusion APU provides enough horsepower to process high-end digital signage content
  • Durable and protected with an all-stainless steel chassis and integrated redundant cooling fans to protect the unit during installation, operation and service
  • Flexible internal configuration with choices of solid state or disk drives coupled with or without the Windows 7 Embedded operating system
  • Full 1080p playback ensures reliable crisp and clear content
  • DisplayPort output allows for multi-display support through ATI graphics
  • Four USB ports allow you to connect compatible devices
  • Full networking capabilities through the integrated Ethernet connection

Technical Specs

Compatible Displays With SB-02AM Adaptor: NEC P Series, V422, V462, V551, V651, X463UN, X551UN
Without SB-02AM Adaptor: X461S, X551S
Operating System Windows 7 Embedded
Processor 1.5 GHz AMD Quad Core Fusion (A8-3500M)
GPU Integrated HD 6620G
RAM 2GB DDR3
Hard Drive 32GB SSD
Video Output Internal DVI, External DisplayPort
Audio Output Internal Stereo, External DisplayPort
Network Connections Gigabit Ethernet
Control I/O USB 2.0 (4)
Video Format Support 1080p video playback, MPEG/2, H.264, WM9
Power 16VDC Input Voltage, Power Dissipation (60W)
Operating Temperature 32deg. - 104deg.F / 0deg. - 40deg.C
Operating Humidity 80% maximum relative humidity, non-condensing
Certifications CE, FCC Section 15
Dimensions (WxHxD) 7.1x1.2x4.6" / 18.03x3.04x11.68 cm
Weight 2.5 lbs / 1.13 kg
