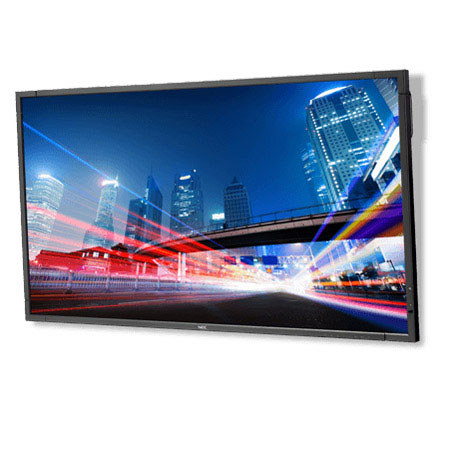

NEC P403 40" 1080p LED Backlit Professional-Grade Large Screen Display, 4000:1 Contrast Ratio, 550cd/m2 Brightness, 8ms Response Time, HDMI/DVI-D/VGA

See all NEC items
SKU: NCP403 MFR: P403
NEC P403: Picture 1 thumbnail NEC P403: Picture 2 thumbnail NEC P403: Picture 3 thumbnail NEC P403: Picture 4 thumbnail

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About NEC P403

The NEC 40" P403 sets the standard for rugged 24/7 use in the harshest installation environments. LED edge lighting delivers environmental, economic and aesthetic impact. With a thinner and lighter cabinet and customizable connectivity options, the P403 display delivers stunning solutions. This new generation of display received a full chassis upgrade with the addition of a second expansion slot, faster processing times, evolved daisy chain performance and near field communication capabilities.

NEC P403 Features

  • 700cd/m2 max brightness combined with full HD resolution will capture the attention of the audience
  • Input Switching Speed minimizes downtime between source transitions
  • Human Sensor Accessory ensures digital signage is directed at a targeted audience
  • Dual expansion slots provide customizable connectivity
  • New, improved chassis provides faster response times
  • Near field communication capabilities for setup and service
  • Expanded daisy chain options with DP1.2
  • Advanced thermal capabilities
  • Ethernet Control and Communication
  • RS-232 Control and Communication
  • Landscape/portrait capable
  • Carbon footprint meter
  • Plug and Play (DDC/CI, DDC2B)
  • Scheduler (with real-time clock)
  • Screen saver function
  • Ambient light sensor (AmbiBright)
  • Optional human sensor
  • Intelligent Wireless Data (Near Field Communications)
  • Second expansion slot
  • Expanded daisy chain (DP 1.2)
  • 6-axis color adjustment
  • Metal rear cabinet

NEC P403 Specifications

Panel Technology
Viewable Image Size
Native Resolution
1920 x 1080
Pixel Pitch
Backlight Type
LED Edge-lit
Pixels Per Inch
47 at native resolution
Brightness (typical)
Brightness (maximum)
Contrast Ratio (typical)
Viewing Angle
178deg. Vert., 178deg. Hor. (89U/89D/89L/89R) at CR>10
Response Time(Gray to Gray)
Refresh Rate
Aspect Ratio
Active Screen Area
35.1 x 19.9" / 891.54 x 505.46mm
Displayable Colors
More than 16.7 million
Horizontal (Analog/Digital)
31.5-91.1 kHz
50-85 Hz
Input Signal: Video
Analog RGB 0.7 Vp-p/75 Ohms
Input Signal: Sync
Separate sync: TTL Level (Positive/Negative)
Composite sync: TTL Level (Positive/Negative)
Composite sync on green: (0.3Vp-p negative 0.7Vp-p positive)
PC Signal Compatibility
Macintosh Compatibility
Input Terminals: Digital
DisplayPort, HDMI, DVI-D
Input Terminals: Analog
VGA 15-pin D-sub
Input Terminals: Audio
Audio Mini-Jack, DisplayPort Audio, HDMI Audio
Input Terminals: External Control
Output Terminals: Audio
Audio Mini-Jack, External Speaker Jack (2)
Output Terminals: Digital
Output Terminals: External Control
Power Consumption: On
Power Consumption: ECO Mode Standby
Operating Temperature
32-122deg.F / 0-50deg.C
Operating Humidity
Operating Altitude
9843 ft. / 3000m
Storage Temperature
-4-149deg.F / -20-65deg.C
Storage Humidity
Storage Altitude
40000' / 12192m
VESA Hole Configuration
300 x 300mm (4-hole)
Bezel Width
Left/Right: 0.6/0.6" (15.5/15.5mm)
Top/Bottom: 0.6/0.6" (15.5/15.5mm)
Dimensions (W x H x D)
With stand: 36.2 x 22.5 x 9.4" / 91.95 x 57.15 x 23.88cm
Without stand: 36.2 x 21 x 2.6" / 91.95 x 53.34 x 6.60cm
With stand: 44.1lbs / 20.0kg
Without stand: 39.7lbs / 18.0kg
