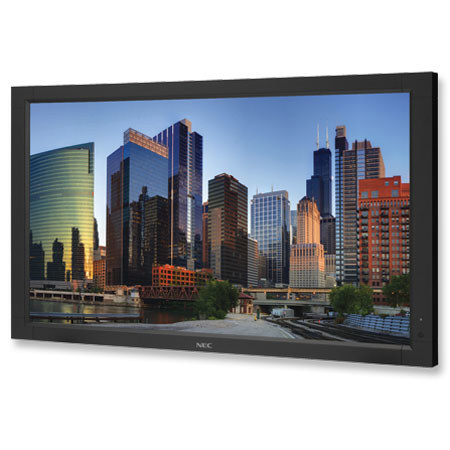

NEC 70" Professional-Grade Large-Screen Display, 1920x1080 Resolution, 0.81mm Pixel Pitch, 8 ms Response Time, 2000:1 Contrast Ratio

SKU: NCP702 MFR: P702
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable.
We Charge you when you place your order. Approximate arrival at Adorama 1 - 2 Weeks from date of order.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

About the NEC P702

The NEC 70" Professional-Grade Large-Screen Display offers industrial-strength, 24x7 operation for the most demanding digital signage installations. Along with its sturdy mechanical design, this display offers full high-definition resolution for smooth video and crisp imagery. Its advanced connectivity with integrated digital loop-through and Open Pluggable Specification (OPS) via the built-in expansion slot enables you to easily connect components to run your digital signage. With TileMatrix technology, you can build a video wall up to 100 displays to maximize impact with your audience, while monitoring your network from a remote location with the most advanced control and communication options available. The P702 is ideal in quick-service restaurants, airports, public information environments, healthcare facilities and retail stores.

NEC P702 Includes

  • NEC 70" Professional-Grade Large-Screen Display
  • Power Cord
  • VGA Cable (Mini 15-Pin D-Sub)
  • Wireless Remote Control
  • Batteries
  • Cable Cover
  • CD-ROM (User Manual)
  • Clamp
  • Screws
  • NEC 3 Years Parts and Labor Limited Warranty

NEC P702 Features

  • Industrial-strength, premium-grade panel with additional thermal protection, internal temperature sensors with self-diagnostics and fan-based technology, allows for 24/7 operation
  • Open Pluggable Specification is the industry's first standardized option slot that simplifies digital signage installations
  • Built-in expansion slot allows for seamless integration of NEC/third-party components, as well as future OPS-based products
  • Expanded connectivity with digital loop-through
  • Full 1080p high-definition resolution provides stunning detail
  • Comprehensive input panel connects you to the latest peripherals, including DisplayPort, HDMI, DVI, VGA, composite and component
  • TileMatrix allows you to create video walls up to 10 x 10

NEC P702 Specifications

Panel Technology SPVA (P-DID)
Viewable Image Size 70"
Native Resolution 1920 x 1080
Pixel Pitch 0.81mm
Pixels Per Inch 31@ native resolution
Brightness (typical) 420cd/m2
Brightness (maximum) 600cd/m2
Contrast Ratio (typical) 2000:1
Viewing Angle 178deg. Vert., 178deg. Hor. (89U/89D/89L/89R) @ CR>10
Response Time(Gray to Gray) 8ms
Refresh Rate 60Hz
Aspect Ratio 16:9
Active Screen Area 61" x 34.3" / 1549.4 x 871.6 mm
Orientation Landscape/Portrait
Displayable Colors More than 16.7 million
Synchronization Range Horizontal (Analog/Digital): 31.5-91.1 kHz
Vertical: 50-85 Hz
Input Signal Video: Analog RGB 0.7 Vp-p/75 Ohms
Sync: Separate sync: TTL Level (Positive/Negative)
Composite sync: TTL Level (Positive/Negative)
Composite sync on green: (0.3Vp-p negative 0.7Vp-p positive)
PC Signal Compatibility Yes
Macintosh Compatibility Yes
Input Terminals Digital: DisplayPort, HDMI, DVI-D
Analog: VGA 15-pin D-sub, 5 BNC (RGBHV, DVD/HD or Video), RCA Composite, BNC Composite, RCA (Y, Cb/Pb, Cr/Pr) Component, S-Video
Audio: RCA Audio (2), Stereo Mini-Jack, DisplayPort Audio, HDMI Audio
External Control: RS-232C, Ethernet (RJ45), IR Remote, DDC/CI
Output Terminals Analog: BNC Composite
Audio: Stereo Mini-Jack, External Speaker Jack (2)
Digital: DisplayPort, DVI-D
External Control: RS-232C, IR Remote
Power Consumption (typical) On: 545W
ECO Mode Standby: <0.5W
VESA Hole Configuration 400 x 400mm (4-hole)
Operating Temperature 41-104deg.F / 5-40deg.C
Operating Humidity 20-80%
Operating Altitude 9843 ft. / 3000m
Storage Temperature -4-140deg.F / -20-60deg.C
Storage Humidity 10-90%
Storage Altitude 40,000 ft. / 12,192m
Bezel Width (Left/Right, Top/Bottom) 2.5 in./2.5 in., 2.5 in./2.5 in.; 62.4mm/62.4mm, 63.4mm/63.4mm
Dimensions (W x H x D) With Stand: 66.1" x 41.8" x 19.7" / 1678.94 x 1061.72 x 500.38 mm
Without stand: 66.1" x 39.5" x 7.8" / 1678.94 x 1003.3 x 198.12 mm
Weight With stand: 217.1 lbs / 98.48 kgs
Without stand: 208.3 lbs / 94.48 kgs
