NEC V423-AVT 42" LED-Backlit Commercial-Grade Display with AV Inputs & Digital Tuner, 16:9 Aspect Ratio, 320cd/m2 Brightness, 1300:1, HDMI/DVI-D/VGA

See all NEC items
SKU: NCV423AVT MFR: V423-AVT
NEC V423-AVT: Picture 1 thumbnail NEC V423-AVT: Picture 2 thumbnail NEC V423-AVT: Picture 3 thumbnail NEC V423-AVT: Picture 4 thumbnail NEC V423-AVT: Picture 5 thumbnail

Original Price: $1,099.00 Special Price Available

See all shipping options

In Stock Online Usually ships in 1-2 Days learn more

About NEC V423-AVT

The NEC 42" V423-AVT high-performance large-screen display utilizes LED backlighting to deliver both environmental and functional benefits for digital signage. This display includes AV inputs and a built-in ATSC digital tuner (SB-03TM). Its commercial-grade panel is capable of displaying brilliant imagery and capturing the audience's attention.

The NEC V423-AVT features built-in 10W speakers and an Open Pluggable Specification (OPS)-compliant expansion slot, which future-proofs the display and allows for the seamless integration of a computer or other NEC/third-party component. Because video, RS-232 control and power are passed internally from the display to the computer, additional cabling is not required, thereby simplifying installations. With integrated temperature sensors and fans, this display is ideal in applications that require extended use, including retail stores, restaurants, indoor venues, training facilities and corporate boardrooms.

NEC V423-AVT Features

  • Built-in ATSC digital tuner allows for high-definition broadcast capabilities
  • LED backlighting technology reduces power consumption and allows for a slimmer cabinet depth
  • Built-in expansion slot supports the Open Pluggable Specification (OPS), which is the industry's first standardization option slot that simplifies digital signage installations
  • Full 1080p high-definition resolution provides stunning detail
  • Commercial-grade LCD panel and components enable extended run time
  • Expanded connectivity with digital loop-through
  • Built-in, low-profile 10W speakers enhance the experience with superior sound

NEC V423-AVT Specifications

Panel Technology
S-IPS
Viewable Image Size
42"
Native Resolution
1920x1080
Pixel Pitch
0.49mm
Backlight Type
LED Edge-lit
Pixels Per Inch
52 at native resolution
Brightness (typical)
320cd/m2
Brightness (maximum)
450cd/m2
Contrast Ratio (typical)
1300:1
Viewing Angle
178deg. Vert., 178deg. Hor. (89U/89D/89L/89R) at CR>10
Response Time(Gray to Gray)
8ms
Refresh Rate
60Hz
Aspect Ratio
16:9
Active Screen Area
36.60x20.60" (929.64x523.24mm)
Orientation
Landscape/Portrait
Displayable Colors
More than 16.7 million
Synchronization Range
Horizontal (Analog/Digital): 31.5-91.1 kHz
Vertical: 50-85 Hz
Input Signal: Video
Analog RGB 0.7 Vp-p/75 Ohms
Input Signal: Sync
Separate sync: TTL Level (Positive/Negative)
Composite sync: TTL Level (Positive/Negative)
Composite sync on green: (0.3Vp-p negative 0.7Vp-p positive)
PC Signal Compatibility
Yes
Macintosh Compatibility
Yes
Input Terminals: Digital
DisplayPort, HDMI, DVI-D
Input Terminals: Analog
VGA 15-pin D-sub (shared S-Video, Video, Component), BNC Composite
Input Terminals: Audio
Stereo Mini-Jack, HDMI Audio, DisplayPort Audio
Input Terminals: External Control
RS-232C, Ethernet (RJ45), IR Remote, DDC/CI
Output Terminals: Audio

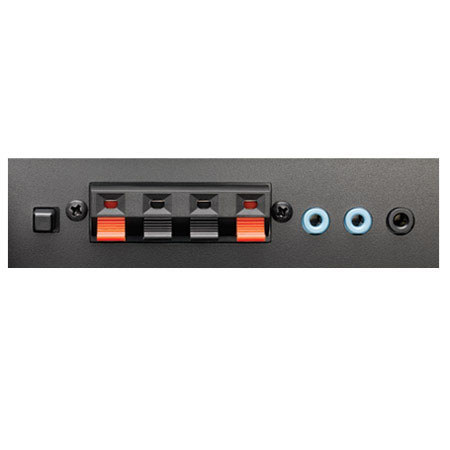

Stereo Mini-Jack, External Speaker Jack (2)
Output Terminals: Digital
DVI-D
Output Terminals: External Control
RS-232C
Power Consumption
On: 8W
ECO Mode Standby: <0.5W
VESA Hole Configuration
300x300mm (4-hole)
Operating Temperature
41-104deg.F / 5-40deg.C
Operating Humidity
20-80%
Operating Altitude
9843' (3000m)
Storage Temperature
-4-140deg.F / -20-60deg.C
Storage Humidity
10-90%
Storage Altitude
40,000' (12,192m)
Bezel Width
Left/Right: 0.7"/0.7" (17.78mm/17.78mm)
Top/Bottom: 0.7"/0.7" (17.78mm/17.78mm)
Dimensions (WxHxD)
With Stand: 38.30x23.70x9.40" (972.82x601.98x238.76mm)
Without Stand: 38.30x22.30x2.70" (972.82x566.42x68.58mm)
Weight
With Stand: 39.90lbs (18.10kg)
Without Stand: 37.00lbs (16.78kg)
