NEC

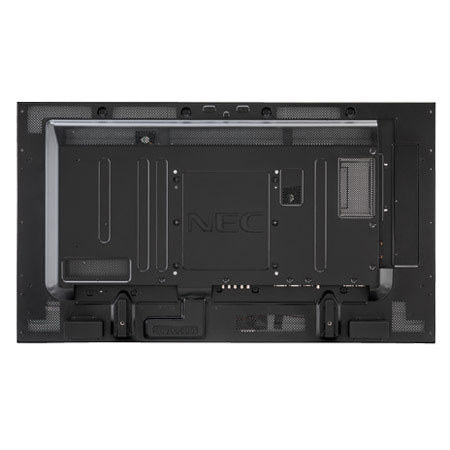

NEC V463 46" High-Performance LED-Backlit Commercial-Grade Display, 1920x1080, 16:9, 350cd/m2 Brightness, 4000:1, HDMI/DVI-D/VGA

SKU: NCV463 MFR: V463
Ships in 1-2 business days
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$1,199.00 Special Price Available
Free Shipping
Qty:

Add to Wishlist In Stock

About the NEC V463

The NEC 46" V463 high-performance large-screen display utilizes LED backlighting to deliver both environmental and functional benefits for digital signage. The V463's commercial-grade panel is capable of displaying brilliant imagery and capturing the audience's attention.

The NEC V463 46" Display features built-in 10W speakers and an Open Pluggable Specification (OPS)-compliant expansion slot, which future-proofs the display and allows for the seamless integration of a computer or other NEC/third-party component. Because video, RS-232 control and power are passed internally from the display to the computer, additional cabling is not required, thereby simplifying installations. With integrated temperature sensors and fans, this display is ideal in applications that require extended use, including retail stores, restaurants, indoor venues, training facilities and corporate boardrooms.

NEC V463 Includes

  • NEC V463 46" High-Performance LED-Backlit Commercial-Grade Display
  • Power Cord
  • 1.8m DVI-D Cable
  • Wireless Remote Control
  • Batteries
  • Main Switch Cover
  • CD-ROM (User Manual)
  • Clamp
  • Screws
  • NEC 3 Year Parts and Labor Limited Warranty

NEC V463 Features

  • LED backlighting technology reduces power consumption and allows for a slimmer cabinet depth
  • Built-in expansion slot supports the Open Pluggable Specification (OPS), which is the industry's first standardization option slot that simplifies digital signage installations
  • Full 1080p high-definition resolution provides stunning detail
  • Commercial-grade LCD panel and components enable extended run time
  • Expanded connectivity with digital loop-through
  • TileMatrix allows you to create video walls up to 10x10

NEC V463 Specifications

Panel Technology A-MVA
Viewable Image Size 46"
Native Resolution 1920x1080
Pixel Pitch 0.53mm
Backlight Type LED Edge-lit
Pixels Per Inch 47 at native resolution
Brightness (typical) 350cd/m2
Brightness (maximum) 500cd/m2
Contrast Ratio (typical) 4000:1
Viewing Angle 178deg. Vert., 178deg. Hor. (89U/89D/89L/89R) at CR>10
Refresh Rate 60Hz
Aspect Ratio 16:09
Active Screen Area 40.10x22.50" (1018.10x572.70mm)
Orientation Landscape/Portrait
Displayable Colors More than 16.7 million
Synchronization Range Horizontal (Analog/Digital): 31.5-91.1 kHz
Vertical: 50-85 Hz
Input Signal: Video Analog RGB 0.7 Vp-p/75 Ohms
Input Signal: Sync Separate sync: TTL Level (Positive/Negative)
Composite sync: TTL Level (Positive/Negative)
Composite sync on green: (0.3Vp-p negative 0.7Vp-p positive)
PC Signal Compatibility Yes
Macintosh Compatibility Yes
Input Terminals: Digital DisplayPort, HDMI, DVI-D
Input Terminals: Analog VGA 15-pin D-sub, 5 BNC (RGBHV, DVD/HD or Video), BNC Composite, S-Video
Input Terminals: Audio Stereo Mini-Jack, HDMI Audio, DisplayPort Audio
Input Terminals: External Control RS-232C, Ethernet (RJ45), IR Remote, DDC/CI
Output Terminals: Audio Stereo Mini-Jack, External Speaker Jack (2)
Output Terminals: Digital DVI-D
Output Terminals: External Control RS-232C
Power Consumption On: 76W
ECO Mode Standby: <2W
VESA Hole Configuration 300x300mm (4-hole)
Operating Temperature 41-104deg.F / 5-40deg.C
Operating Humidity 20-80%
Operating Altitude 9843' (3000m)
Storage Temperature -4-140deg.F / -20-60deg.C
Storage Humidity 10-90%
Storage Altitude 40,000' (12,192m)
Bezel Width Left/Right: 0.7"/0.7" (17.78mm/17.78mm)
Top/Bottom: 0.7"/0.7" (17.78mm/17.78mm)
Dimensions (WxHxD) With Stand: 41.70x25.60x9.40" (1059.18x650.24x238.76)
Without Stand: 41.70x24.10x2.60" (1059.18x612.14x66.04mm)
Weight With Stand: 44.50lbs (20.20kg)
Without Stand: 41.70lbs (18.90kg)
