NEC V463-PC 46" Digital Signage Solution with V463 & Single Board Computer, 1920 x 1080, 16:9, 350cd/m2 Brightness, 4000:1, HDMI/DVI-D/VGA

See all NEC items
SKU: NCV463PC MFR: V463-PC
NEC V463-PC: Picture 1 thumbnail NEC V463-PC: Picture 2 thumbnail NEC V463-PC: Picture 3 thumbnail
Free Shipping

See all shipping options

Temporarily On Backorder - Although this item is temporarily on Backorder, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped. learn more / Notify when in stock

Our Price

$1,799.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

NEC V463-PC: Picture 1 regular $1,799.00

About NEC V463-PC

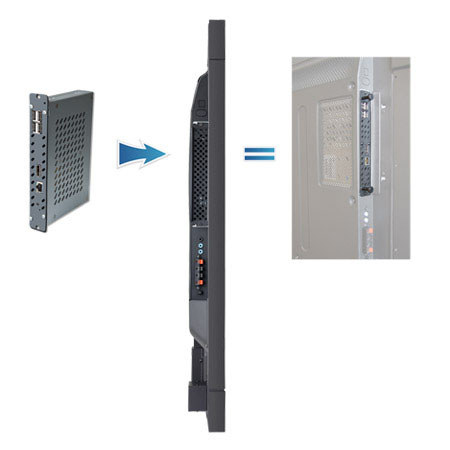

The NEC V463-PC 46" Digital Signage Solution with V463 & Single Board Computer provides a complete bundled product for customers that need a commercial-grade display and computer to source basic content. The V463-PC bundle includes a 46" V463 display and OPS-PCAF-WS single board computer seamlessly integrated utilizing the expansion slot of the display. This built-in functionality allows for a clean, hidden integration while reducing the bill of materials needed for installation.

The NEC V463 LCD display utilizes LED backlighting to deliver both environmental and functional benefits for digital signage, while its full high-definition panel is capable of displaying brilliant imagery and capturing the audience's attention. This bundle allows you to incorporate audio into your content by using the V463's integrated 10W speakers. The integrated OPS-compliant computer boasts a 1.6 GHz Dual Core Atom CPU with 32GB solid state drive and Windows 7 Embedded.

NEC V463-PC Features

  • Bundled solution includes 46" V463 display and OPS-PCAF-WS single board computer for simple digital signage
  • LED backlighting technology reduces power consumption and allows for a slimmer cabinet depth
  • Full 1080p high-definition resolution provides stunning detail
  • Commercial-grade LCD panel and components enable extended run time
  • Expanded connectivity with digital loop-through
  • Built-in, low-profile 10W speakers enhance the experience with superior sound
  • NEC's Content Management Software (CMS), a SaaS web-based digital signage software, is available at no charge

NEC V463-PC Specifications

Panel Technology
A-MVA
Viewable Image Size
46"
Native Resolution
1920x1080
Pixel Pitch
0.53mm
Backlight Type
LED Edge-lit
Pixels Per Inch
47 at native resolution
Brightness (typical)
350cd/m2
Brightness (maximum)
500cd/m2
Contrast Ratio (typical)
4000:1
Viewing Angle
178deg. Vert., 178deg. Hor. (89U/89D/89L/89R) at CR>10
Refresh Rate
60Hz
Aspect Ratio
16:9
Active Screen Area
40.10x22.50" (1018.10x572.70mm)
Orientation
Landscape/Portrait
Displayable Colors
More than 16.7 million
Synchronization Range
Horizontal (Analog/Digital): 31.5-91.1 kHz
Vertical: 50-85 Hz
Input Signal: Video
Analog RGB 0.7 Vp-p/75 Ohms
Input Signal: Sync
Separate sync: TTL Level (Positive/Negative)
Composite sync: TTL Level (Positive/Negative)
Composite sync on green: (0.3Vp-p negative 0.7Vp-p positive)
PC Signal Compatibility
Yes
Macintosh Compatibility
Yes
Input Terminals: Digital
DisplayPort, HDMI, DVI-D
Input Terminals: Analog
VGA 15-pin D-sub, 5 BNC (RGBHV, DVD/HD or Video), BNC Composite, S-Video
Input Terminals: Audio
Stereo Mini-Jack, HDMI Audio, DisplayPort Audio
Input Terminals: External Control
RS-232C, Ethernet (RJ45), IR Remote, DDC/CI
Output Terminals: Audio
Stereo Mini-Jack, External Speaker Jack (2)
Output Terminals: Digital
DVI-D
Output Terminals: External Control
RS-232C
Power Consumption
On: 76W
ECO Mode Standby: <2W
VESA Hole Configuration
300x300mm (4-hole)
Operating Temperature
41-104deg.F / 5-40deg.C
Operating Humidity
20-80%
Operating Altitude
9843' (3000m)
Storage Temperature
-4-140deg.F / -20-60deg.C
Storage Humidity
10-90%
Storage Altitude
40,000' (12,192m)
Bezel Width
Left/Right: 0.7"/0.7" (17.78mm/17.78mm)
Top/Bottom: 0.7"/0.7" (17.78mm/17.78mm)
Dimensions (WxHxD)
With Stand: 41.70x25.60x9.40" (1059.18x650.24x238.76)
Without Stand: 41.70x24.10x2.60" (1059.18x612.14x66.04mm)
Weight
With Stand: 44.50lbs (20.18kg)
Without Stand: 41.70lbs (18.90kg)
Mfr #
V463-PC
SKU
NCV463PC
