NEC Digital Signage Solution with 65" V652 Display Monitor & Single Board Computer, 1920x1080, 16:9 Aspect Ratio, 320cd/m2 Brightness, 4000:01 Contrast Ratio

See all NEC items
NEC V652-PC: Picture 1 thumbnail NEC V652-PC: Picture 2 thumbnail NEC V652-PC: Picture 3 thumbnail NEC V652-PC: Picture 4 thumbnail NEC V652-PC: Picture 5 thumbnail

About NEC V652-PC

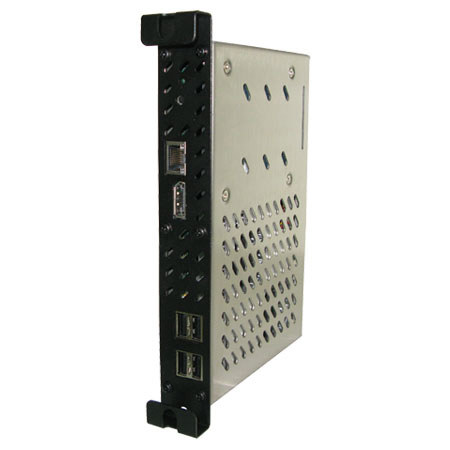

The NEC Digital Signage Solutions provide a complete bundled product for customers that need a commercial-grade display and computer to source basic content. The V652-PC bundle includes a 65" V652 display and OPS-PCAF-WS single board computer seamlessly integrated utilizing the expansion slot of the display. This built-in functionality allows for a clean, hidden integration while reducing the bill of materials needed for installation.

NEC's V652 LCD display utilizes LED backlighting to reduce the product's depth and power consumption when compared to its predecessor. The V652 offers a full high-definition panel capable of displaying brilliant imagery and capturing the audience's attention. This bundle allows you to incorporate audio into your content by using the V652's integrated 10W speakers. The integrated OPS-compliant computer boasts a 1.6 GHz Dual Core Atom CPU with 32GB solid state drive and Windows 7 Embedded.

NEC V652-PC Features

  • LED backlighting technology reduces power consumption and allows for a slimmer cabinet depth
  • Full 1080p high-definition resolution provides good detail
  • Commercial-grade LCD panel and components
  • Expanded connectivity with digital loop-through
  • Advanced Cooling System: Prevents the likeliness of image retention and improves color uniformity
  • LED Edge-Lit Display: Enables a mere 1.7" (43.18mm) unit depth, creating installation opportunities
  • Open Pluggable Specification (OPS): Built-in expansion slot supports the OPS, which is the standardization option slot that simplifies digital signage installations
  • Picture-in-Picture (PIP) allows for a second frame within the screen area
  • Picture-on-Picture (POP) surrounds the standard frame with multiple frames
  • Side-by-Side places 2 sources adjacent to one another
  • Round-the-Clock Scheduler: Allows for scheduling of monitor powering up / down, increasing panel lifetime, reducing power consumption and saving the time and expense of finding and purchasing a third-party scheduling solution
  • Text Ticker: Creates a dedicated portion of the screen for applications such as news updates and emergency warnings
  • TileMatrix allows you to create video walls up 10 x 10 and customize configuration using advanced on-screen display controls
  • TileComp: Automatically eliminates geometrical distortions between displays by adjusting for the width of the monitor bezels, working in tandem with TileMatrix on displays 1
  • EdgeComp: Provides for more brightness distribution from center to edge during video wall configurations
  • Advanced thermal capabilities and cooling system
  • Separate group / monitor ID function
  • Ethernet & RS-232 control and communication
  • Carbon footprint meter
  • Plug and play (DDC/CI, DDC2B)
  • Touch and protective screen-ready
  • Variable picture modes
  • Advanced video settings (Noise reduction, adaptive contrast)

NEC V652-PC Specifications

Viewable Image Size
65"
Native Resolution
1920x1080
Pixel Pitch
0.74mm
Backlight Type
LED Edge-lit
Pixels Per Inch
33 at native resolution
Brightness (typical)
320cd/m2
Brightness (maximum)
450cd/m2
Contrast Ratio (typical)
4000:1
Viewing Angle
178deg. Vert., 178deg. Hor. (89U/89D/89L/89R) at CR>10
Response Time(Gray to Gray)
8ms
Refresh Rate
60Hz
Aspect Ratio
16:9
Active Screen Area
56.20x31.6" (1428.50x 803.50mm)
Orientation
Landscape/Portrait
Displayable Colors
More than 16.7 million
Horizontal (Analog/Digital)
31.5-91.1 kHz
Vertical
50-85 Hz
Video
Analog RGB 0.7 Vp-p/75 Ohms
Sync
Separate sync: TTL Level (Positive/Negative)
Composite sync: TTL Level (Positive/Negative)
Composite sync on green: (0.3Vp-p negative 0.7Vp-p positive)
PC Signal Compatibility
Yes
Macintosh Compatibility
Yes
Input Terminals: Digital
DisplayPort, HDMI, DVI-D
Input Terminals: Analog
GA 15-pin D-sub, 5 BNC (RGBHV, DVD/HD, S-Video or Video), BNC Composite
Input Terminals: Audio
Stereo Mini-Jack, HDMI Audio, DisplayPort Audio
Input Terminals: External Control
RS-232C, Ethernet (RJ45), IR Remote, DDC/CI
Output Terminals: Analog
N/A
Output Terminals: Audio
Stereo Mini-Jack, External Speaker Jack (2)
Output Terminals: Digital
DVI-D
Output Terminals: External Control
RS-232C
Power Consumption
On: 100W
ECO Mode Standby: <2W
VESA Hole Configuration
400x400mm (4-hole)
Operating Temperature
41-104deg.F / 5-40deg.C
Operating Humidity
20-80%
Operating Altitude
9843' (3000m)
Storage Temperature
-4-140deg.F / -20-60deg.C
Storage Humidity
10-90%
Storage Altitude
40,000' (12,192m)
Bezel Width
Left/Right: 2.1"/2.1" (53.5mm/53.5mm)
Top/Bottom: 2.1"/2.1" (53.5mm/53.5mm)
Dimensions
With Stand: 60.60x37.20x20.20" (1539.24x944.88x513.08mm)
Without Stand: 60.60x35.80x3.50" (1539.24x909.32x88.90mm)
Weight
With Stand: 125.90lbs (57.10kg)
Without Stand: 114.40lbs (52.00kg)
