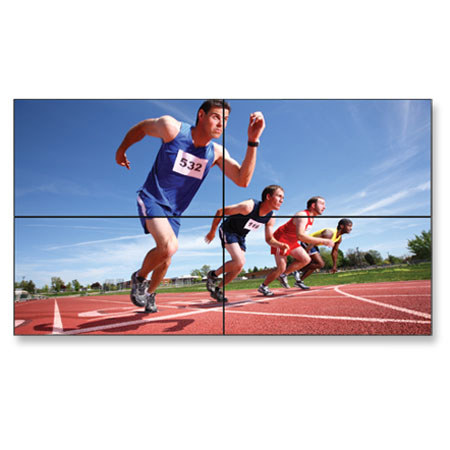

NEC X461UNV-TMX4D 46" Low-Bright Ultra-Narrow 2x2 TileMatrix Digital Video Wall Solution, 1366x768 Resolution, 390 cd/m2 Brightness

See all NEC items

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart


The NEC X461UNV-TMX4D 46" Low-Bright Ultra-Narrow Digital Video Wall Solution delivers an All-in-One, easy-to-configure and cost-effective solution that is ideal for dynamic digital signage, information display and command & control applications. Exclusive TileMatrix and TileComp technologies, combined with the ultra-narrow bezel design of the NEC X461UNV, provide for a near seamless video wall without the need for additional third-party equipment. The DVI daisy chain board is added to each display to allow the loop-through of a digital video signal insuring for the best quality picture.

NEC X461UNV-TMX4D Features

  • Ultra-thin bezel design (7.3 mm screen-to-screen width) achieves a "barely there" effect
  • Overframe Bezel Kit completes your solution with a "finished and framed" look (two kits included)
  • TileMatrix technology is integrated into each NEC display within the bundle, allowing for easy manipulation of a single picture to 2 x 2 format
  • Copy function allows you to apply the settings from one display to all others
  • Chief 2 x 2 Video Wall Mounting System
  • Null modem cables used for daisy-chaining control signals included
  • Tripp Lite Isobar-6 surge suppressor features six outlets and prevents crashes, reboots and performance problems

NEC X461UNV-TMX4D Specifications

Panel Technology
Viewable Image Size
Native Resolution
1366 x 768
Pixel Pitch
Pixels Per Inch
33@ native resolution
Brightness (typical)
Contrast Ratio (typical)
Viewing Angle
178deg. Vert., 178deg. Hor. (89U/89D/89L/89R) @ CR>10
Response Time(Gray to Gray)
Refresh Rate
Aspect Ratio
Active Screen Area
40.1" x 22.5" / 1018.54 x 571.5 mm
Displayable Colors
More than 16.7 million
Synchronization Range
Horizontal (Analog/Digital): 31.5-91.1 kHz
Vertical: 50-85 Hz
Input Signal
Video: Analog RGB 0.7 Vp-p/75 Ohms
Sync: Separate sync: TTL Level (Positive/Negative)
Composite sync: TTL Level (Positive/Negative)
Composite sync on green: (0.3Vp-p negative 0.7Vp-p positive)
PC Signal Compatibility
Macintosh Compatibility
Input Terminals
Digital: DisplayPort, HDMI, DVI-D
Analog: VGA 15-pin D-sub, 5 BNC (RGBHV, DVD/HD or Video), RCA Composite, BNC Composite, RCA (Y, Cb/Pb, Cr/Pr) Component, S-Video
Audio: RCA Audio (2), Stereo Mini-Jack, HDMI Audio
External Control: RS-232C, Ethernet (RJ45), IR Remote, DDC/CI
Output Terminals
Analog: 5 BNC (RGBHV), BNC Composite
Audio: RCA Audio, External Speaker Jack (2)
Digital: DVI-D
External Control: RS-232C, IR Remote
Power Consumption (typical)
On: 125W
ECO Mode Standby: <2W
VESA Hole Configuration
300 x 300mm (4-hole)
Operating Temperature
41-104deg.F / 5-40deg.C
Operating Humidity
Operating Altitude
9843 ft. / 3000m
Storage Temperature
-4-140deg.F / -20-60deg.C
Storage Humidity
Storage Altitude
40,000 ft. / 12,192m
Bezel Width
Left x Right: 0.2" x 0.1" / 5.08 x 2.54 mm & Top x Bottom: 0.2" x 0.1" / 5.08 x 2.54 mm
Dimensions (W x H x D)
With stand: 40.4" x 24.6" x 13.8" / 1026.16 x 624.84 x 350.52 mm
Without stand: 40.4" x 22.8" x 5" / 1026.16 x 579.12 x 127 mm
With stand: 68.8 lbs / 31.21 kg
Without stand: 59.1 lbs / 26.81 kg
