NEC

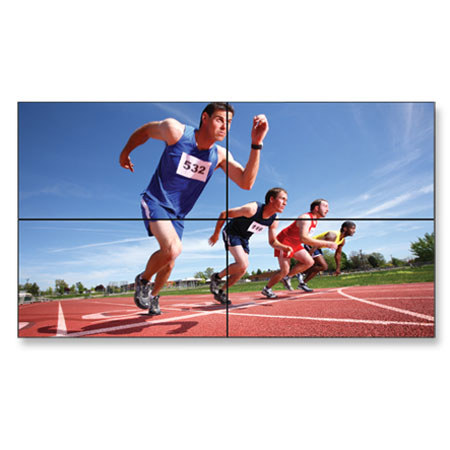

NEC MultiSync X461UN-TMX 46" 2x2 Tile Video Wall Display, 500 cd/ms Brightness, 3000:1 Contrast Ratio, 1366x768 Resolution

SKU: NCX461UNTMX MFR: X461UN-TMX
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$19,855.14
Free Shipping
Qty:
Add to Wishlist

About the NEC X461UN-TMX

The NEC MultiSync X461UN-TMX 46" 2 x 2 TileMatrix Wall Display integrates 4 professional-grade X461UN monitors to produce a virtually seamless video wall. Premium-grade panels and an ultra-thin bezel design combine with more than 30 advanced features to provide a dynamic, cost-effective solution to digital signage, command & control and information display.

Along with its bright HD images, the X461UN-TMX offers an exceptionally large number of inputs - including component, composite, HDMI, DVI and VGA-allowing you a virtually unlimited range of video sources. With its exclusive TileMatrix and TileComp technologies, these monitors provide an All-in-One alternative that's easy to configure and even easier on the eyes.

NEC X461UN-TMX Features

  • TileMatrix: Allows you to build video walls up to 100 displays using only one video source. This helps avoid the hassle and extra costs of using splitters or connecting monitors to multiple sources
  • TileComp: Works in tandem with TileMatrix to compensate for the bezel width and create a more seamless video wall
  • Copy Function: Lets you apply the settings from one display to all others in the RS-232 daisy chain, reducing setup time and saving money
  • Built-in Expansion Slot: Future-proofs your display investment, allowing for seamless integration of NEC and third-party components, including an HD-SDI card, single-board computer and DVI daisy chain capability
  • Ultra-Thin Bezel Design: An ultra-narrow bezel allows for a screen-to-screen distance between two neighboring displays of only 7.3 mm, a more than 1200% improvement over the standard bezel width from NEC's 90 mm 15 Series
  • XtraView Wide-angle Viewing Technology: Delivers flexible horizontal and vertical viewing angles (89L/89R/89T/89B) with less glare, reflection and distortion
  • Rapid Response Technology: Delivers virtually uninterrupted, undistorted viewing of high-speed, full-motion video
  • 6-axis Color Control Engine: Allows for precise and simplified color, color temperature (2600 - 10,000K) and saturation adjustment
  • Thermal Protection: Starts with an extra thermal layer on the professional-grade display panel to diffuse heat followed by fan-based technology specially designed to work in both landscape and portrait modes and be controlled locally or remotely
  • Industry's Most Extensive Display Control: Includes RS-232, Ethernet connectivity, NaViSet software and DDC/CI standard
  • Real-time Clock: Allows for content scheduling and monitor sleep/wake management, improving energy savings and extending display life
  • NaViSet Software: Utilizes the monitor's advanced control and diagnostics capabilities to provide AV and IT professionals with remote access to monitor settings over their existing network. This can be used in combination with daisy chain-enabled RS-232C to control individually addressable displays
  • Mounting System: Compact and slim, the Digital Factory PerfectAlign mounting system allows the displays to be mounted as close to the wall as possible
  • Overframe Bezel Kit: Completes your solution by offering a "finished & framed" look
  • Extron Cables: These premium quality cables offer uncompromising high resolution signal distribution and multipurpose interconnectivity solutions for a wide range of professional, commercial, residential, themed entertainment and live event AV environments

NEC X461UN-TMX Specifications

Signal System ATSC, NTSC
Monitor Type LCD
Screen Size 46"
Resolution 1366 x 768
Viewing Angle 89
Brightness 500cd/m
Contrast Ratio 3000:1
Connections Composite: RCA or BNC (x1 Input), BNC (x1 Output), RCA (x3 Output)
Component: BNC (x5 Input, x5 Output)
S-Video: 4-pin (x1 Input)
HDMI: x1 Input
DVI: DVI-D (x1 Input)
PC: 15-pin Dsub (x1 Input)
Audio L/R: RCA (x2 Input, x1 Output)
Audio In: 3.5mm Stereo Mini
Speaker L/R: x1 Output
Ethernet: RJ-45
Remote: 3.5mm Mini (x1 Input, x1 Output)
RS-232 (x1 Input, x1 Output)
Remote Control No
Power Requirements 100-120VAC / 220-240VAC @50/60Hz
Power Consumption 200W
Dimensions (W x H x D) Without stand: 80.7 x 46 x 7.4" (205 x 116.8 x 18.8 cm)
Weight Without stand: 400 lbs (181.4 kg)
