NEC

NEC X461UNV 46" Low-Bright Ultra-Narrow Professional-Grade Large-Screen Display, 1366x768 Resolution, 3000:1 Contrast Ratio, 60 Hz Refresh Rate

SKU: NCX461UNV MFR: X461UNV
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

3,999.00
Free Shipping
Qty:
Add to Wishlist

About the NEC X461UNV

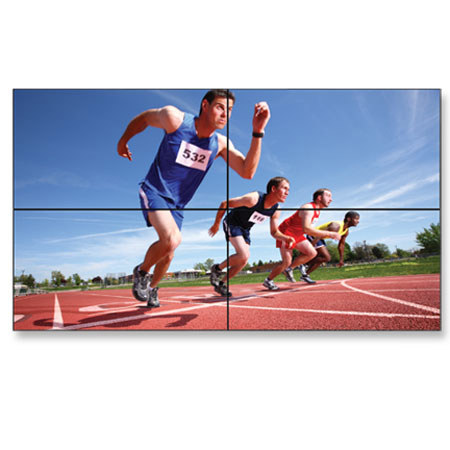

The NEC X461UNV 46" Low-Bright Ultra-Narrow Professional-Grade Large-Screen Display takes your LCD video walls to new levels of impact. Its ultra-narrow bezel allows for a screen-to-screen distance between two neighboring displays of only 7.3 mm, a near 450% improvement from NEC's previously revolutionary 33 mm P Series displays. The display, with it's 450 cd/m2 max brightness, is ideal for digital signage and broadcast applications in low ambient light conditions and can be deployed in video wall matrices of up to 10 x 10 (100 displays), creating a total surface area of approximately 645 sq ft. The barely discernable transition gap between displays allows for near-flawless video wall setups.

NEC X461UNV Includes

  • NEC X461UNV 46" Low-Bright Ultra-Narrow Professional-Grade Large-Screen Display
  • Power Cord
  • VGA Cable (Mini 15-Pin D-Sub)
  • CD-ROM (User Manual)
  • Clamp
  • Cable Cover
  • Screws
  • NEC 3 Year Parts & Labor Limited Warranty

NEC X461UNV Features

  • Professional-grade LCD panel and components
  • 1366 x 768 WXGA native resolution in true 16:9 aspect ratio, maximum brightness of 450 cd/m2 and typical contrast ratio of 3000:1
  • Ground-breaking ultra-narrow bezel of 7.3 millimeters (screen-to-screen)
  • TileMatrix allows you to create video walls up to 10 x 10
  • Built-in expansion slot allows for seamless integration of NEC/third-party components
  • Optional Display Wall Calibrator ensures color uniformity and fidelity across individual and multiple screens, creating a perfectly matched image in tiled environments
  • Ethernet and RS-232 Control and Communication allows for ease in remote monitoring

NEC X461UNV Specifications

Panel Technology SPVA (P-DID)
Viewable Image Size 46"
Native Resolution 1366 x 768
Pixel Pitch 0.75mm
Backlight Type CCFL
Pixels Per Inch 33@ native resolution
Brightness (typical) 390cd/m2
Brightness (maximum) 450cd/m2
Contrast Ratio (typical) 3000:1
Viewing Angle 178deg. Vert., 178deg. Hor. (89U/89D/89L/89R) @ CR>10
Response Time(Gray to Gray) 8ms
Refresh Rate 60Hz
Aspect Ratio 16:9
Active Screen Area 40.1 x 22.5 in. / 1018.4 x 572.5mm
Orientation Landscape/Portrait
Displayable Colors More than 16.7 million
Synchronization Horizontal 31.5-91.1 kHz (Analog/Digital)
Synchronization Vertical 50-85 Hz
Input Signal Video Analog RGB 0.7 Vp-p/75 Ohms
Input Signal Sync Separate sync: TTL Level (Positive/Negative)
Composite sync: TTL Level (Positive/Negative)
Composite sync on green: (0.3Vp-p negative 0.7Vp-p positive)
PC Signal Compatibility Yes
Macintosh Compatibility Yes
Input Terminals Digital: DisplayPort, HDMI, DVI-D
Analog: VGA 15-pin D-sub, 5 BNC (RGBHV, DVD/HD or Video), RCA Composite, BNC Composite, RCA (Y, Cb/Pb, Cr/Pr) Component, S-Video
Audio: RCA Audio (2), Stereo Mini-Jack, HDMI Audio, DisplayPort Audio
External Control: RS-232C, LAN, IR Remote, DDC/CI
Output Terminals Analog: 5 BNC (RGBHV, DVD/HD or Video), BNC Composite
Audio: RCA Audio
External Control: RS-232C, IR Remote
Power Consumption (typical) On: 125W
ECO Mode Standby: <2W
VESA Hole Configuration 300 x 300mm (4-hole)
Operating Temperature 41-104deg.F / 5-40deg.C
Operating Humidity 20-80%
Operating Altitude 9843 ft. / 3000m
Storage Temperature -4-140deg.F / -20-60deg.C
Storage Humidity 10-90%
Storage Altitude 40,000 ft. / 12,192m
Bezel Width (Left/Right, Top/Bottom) 0.2 in./0.1 in., 0.2 in./0.1 in.; 5mm/3mm, 5mm/3mm
Dimensions (W x H x D) With Stand: 40.4 x 24.6 x 13.8 in. / 1026.16 x 624.84 x 350.52mm
Without Stand: 40.4 x 22.8 x 5 in. / 1026.16 x 579.12 x 127mm
Weight With Stand: 68.8 lbs. / 31.2 kg
Without Stand: 59.1 lbs. / 26.8 kg
