NEC X462HB 46" High-Bright Professional-Grade Large-Screen Display, 1920x1080 Resolution, 3500:1 Contrast Ratio, 60 Hz Refresh Rate, Ethernet Port

See all NEC items
NEC X462HB: Picture 1 thumbnail NEC X462HB: Picture 2 thumbnail NEC X462HB: Picture 3 thumbnail

About NEC X462HB

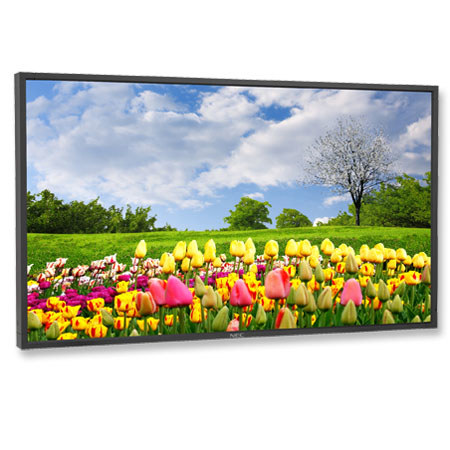

The NEC X462HB 46" Professional Grade Large Screen Display is a professional grade, ultra-narrow LCD monitor. Designed for use in multi-screen video walls, the display's bezel is only 0.7" (16.5 mm) wide. The display offers high brightness at 1200 cd/m2, full HD resolution and quarter-lambda polarizing film, which enables outdoor viewing with polarized sunglasses in both landscape and portrait display orientations.

Along with its bright, full HD images, the X462HB offers an exceptionally large number of inputs - including component, composite, HDMI, DVI, VGA and DisplayPort - allowing you a virtually unlimited range of video sources. With its exclusive TileMatrix and TileComp technologies, these monitors provide an All-in-One alternative that's easy to configure and even easier on the eyes.

NEC X462HB Features

  • Quarter-lambda polarizing film allows viewing of content regardless of display orientation or the use of polarized sunglasses
  • Industrial-strength, premium-grade panel with additional thermal protection, internal temperature sensors with self diagnostics and fan-based technology
  • Full 1080p high-definition resolution provides stunning detail
  • Built-in expansion slot allows for seamless integration of NEC/third-party components
  • Ethernet and RS-232 Control and Communication allows for ease in remote monitoring
  • Built-in ambient light sensor automatically adjusts the display's brightness based on existing lighting conditions, reducing energy consumption
  • TileMatrix allows you to create video walls up to 10 x 10

NEC X462HB Specifications

Panel Technology
Viewable Image Size
Native Resolution
1920 x 1080
Pixel Pitch
Backlight Type
Pixels Per Inch
47@ native resolution
Brightness (typical)
Brightness (maximum)
Contrast Ratio (typical)
Viewing Angle
178deg. Vert., 178deg. Hor. (89U/89D/89L/89R) @ CR>10
Response Time(Gray to Gray)
Refresh Rate
Aspect Ratio
Active Screen Area
40.1 x 22.5 in. / 1018.4 x 572.5mm
Displayable Colors
More than 16.7 million
Synchronization Horizontal
31.5-91.1 kHz (Analog/Digital)
Synchronization Vertical
50-85 Hz
Input Signal Video
Analog RGB 0.7 Vp-p/75 Ohms
Input Signal Sync
Separate sync: TTL Level (Positive/Negative)
Composite sync: TTL Level (Positive/Negative)
Composite sync on green: (0.3Vp-p negative 0.7Vp-p positive)
PC Signal Compatibility
Macintosh Compatibility
Input Terminals
Digital: DisplayPort, HDMI, DVI-D
Analog: VGA 15-pin D-sub, 5 BNC (RGBHV, DVD/HD or Video), RCA Composite, BNC Composite, RCA (Y, Cb/Pb, Cr/Pr) Component, S-Video
Audio: RCA Audio (2), Stereo Mini-Jack, HDMI Audio, DisplayPort Audio
External Control: RS-232C, Ethernet (RJ45), IR Remote, DDC/CI
Output Terminals
Analog: 5 BNC (RGBHV), BNC Composite
Audio: RCA Audio, External Speaker Jack (2)
External Control: RS-232C, IR Remote
Power Consumption (typical)
On: 320W
ECO Mode Standby: <0.5W
VESA Hole Configuration
300 x 300mm (4-hole)
Operating Temperature
41-95deg.F / 5-35deg.C
Operating Humidity
Operating Altitude
9843 ft. / 3000m
Storage Temperature
-4-140deg.F / -20-60deg.C
Storage Humidity
Storage Altitude
40,000 ft. / 12,192m
Bezel Width (Left/Right, Top/Bottom)
0.65in./0.65in., 0.65in./0.65in.; 16.5mm/16.5mm, 16.5mm/16.5mm
Dimensions (W x H x D)
With Stand: 41.6 x 25.4 x 13.8 in. / 1056 x 645.16 x 351mm
Without Stand: 41.6 x 24 x 5.5 in. / 1056 x 609.6 x 140mm
With Stand: 72.5 lbs. / 32.9 kg
Without Stand: 68.3 lbs / 31.0 kg
