NEC X462S-PC 46" Digital Signage Solution with X462S & Single Board Computer, 16:9 Aspect Ratio, 3000:1 Contrast Ratio, 1920x1080, HDMI/DVI-D/VGA

See all NEC items
SKU: NCX462SPC MFR: X462S-PC
NEC X462S-PC: Picture 1 thumbnail NEC X462S-PC: Picture 2 thumbnail NEC X462S-PC: Picture 3 thumbnail

Original Price: $2,949.00 Special Price Available

Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About NEC X462S-PC

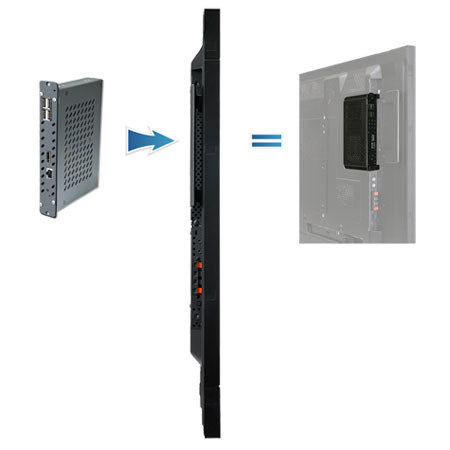

The NEC Digital Signage Solutions provide a complete bundled product for customers that need a professional-grade display and computer to source basic content. The X462S-PC bundle includes a 46" X462S display and an OPS-PCAF-WS single board computer seamlessly integrated utilizing the expansion slot of the display. This built-in functionality allows for a clean, hidden integration while reducing the bill of materials needed for installation.

The LED X462S offers customers a super-slim depth of 1.7" and a brighter screen than its predecessor. This industrial-strength, full HD LCD display delivers high-quality imagery with advanced connectivity, including DisplayPort, HDMI and an Open Pluggable Specification (OPS) slot. The integrated OPS-compliant computer boasts a 1.6 GHz Dual Core Atom CPU with 32GB solid state drive and Windows 7 Embedded.

NEC X462S-PC Features

  • Bundled solution includes 46" X462S display and OPS-PCAF-WS single board computer for simple digital signage
  • LED backlighting technology improves power consumption and allows for a slimmer cabinet depth
  • 700cd/m2 max brightness combined with full HD resolution will capture the attention of the audience
  • Industrial-strength, premium-grade panel with additional thermal protection, internal temperature sensors with self-diagnostics and fan-based technology, allows for 24/7 operation
  • TileMatrix allows you to create video walls up to 10x10
  • NEC's Content Management Software (CMS), a SaaS web-based digital signage software, is available at no charge

NEC X462S-PC Specifications

Panel Technology
SPVA (P-DID)
Viewable Image Size
46"
Native Resolution
1920 x 1080
Pixel Pitch
0.53mm
Backlight Type
LED Edge-lit
Pixels Per Inch
47 at native resolution
Brightness (typical)
500cd/m2
Brightness (maximum)
700cd/m2
Contrast Ratio (typical)
3000:1
Viewing Angle
178deg. Vert., 178deg. Hor. (89U/89D/89L/89R) at CR>10
Refresh Rate
60Hz
Aspect Ratio
16:9
Active Screen Area
40.1x22.5" / 1018.5x571.5mm
Orientation
Landscape/Portrait
Displayable Colors
More than 16.7 million
Synch Range: Horizontal (Analog/Digital)
31.5-91.1 kHz
Synch Range: Vertical
50-85 Hz
Input Signal: Video
Analog RGB 0.7 Vp-p/75 Ohms
Input Signal: Sync
Separate sync: TTL Level (Positive/Negative)
Composite sync: TTL Level (Positive/Negative)
Composite sync on green: (0.3Vp-p negative 0.7Vp-p positive)
PC Signal Compatibility
Yes
Macintosh Compatibility
Yes
Input Terminals: Digital
DisplayPort, HDMI, DVI-D
Input Terminals: Analog
VGA 15-pin D-sub, BNC Composite
Input Terminals: Audio
Audio Mini-Jack, DisplayPort Audio, HDMI Audio
Input Terminals: External Control
RS-232C, LAN, DDC/CI
Output Terminals: Audio
Audio Mini-Jack, External Speaker Jack (2)
Output Terminals: Digital
DVI-D
Output Terminals: External Control
RS-232C
Power Consumption: On
210W
Power Consumption: ECO Mode Standby
<1W
Operating Temperature
41-104deg.F / 5-40deg.C
Operating Humidity
20-80%
Operating Altitude
9843' / 3000m
Storage Temperature
-4-140deg.F / -20-60deg.C
Storage Humidity
10-90%
Storage Altitude
40,000' / 1219.2m
VESA Hole Configuration
300x300mm (4-hole)
Bezel Width
Left/Right: 0.7"/0.7" (17.78mm/17.78mm)
Top/Bottom: 0.7"/0.7" (17.78mm/17.78mm)
Dimensions (WxHxD)
With stand: 41.6x24.1x13" / 1056.6x612.1x330.2mm
Without stand: 41.6x24.1x1.8" / 1056.6x612.14x45.72mm
Weight
With stand: 50.6lbs / 22.95kg
Without stand: 48lbs / 21.77kg
