NEC X462S-PC-CRE 46" Digital Signage Solution with X462S & Single Board Computer, 16:9 Aspect Ratio, 3000:1 Contrast Ratio, 1920 x 1080, HDMI/DVI-D/VGA

See all NEC items
SKU: NCX462SPCCRE MFR: X462S-PC-CRE
NEC X462S-PC-CRE: Picture 1 thumbnail NEC X462S-PC-CRE: Picture 2 thumbnail NEC X462S-PC-CRE: Picture 3 thumbnail

Original Price: $3,499.00 Special Price Available

Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About NEC X462S-PC-CRE

The NEC Digital Signage/Content Creation Solutions provide all of the necessary components for those in need of professional-grade digital signage in a comprehensive bundle. The NEC X462S-PC-CRE includes an LED 46" NEC X462S display, a single board computer to source digital signage content, a thin-depth wall mount kit, Ultrablok surge suppressor, complimentary content management software (CMS) and a voucher good for two hours toward NEC Content Creation Services.

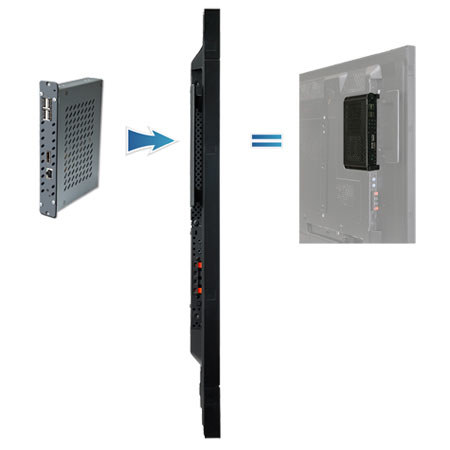

The LED backlighting technology in the 46" X461S full-HD display allows for a super-slim depth of 1.7" and low power consumption. The premium industrial-grade panel with internal temperature sensors and integrated cooling fans allow it to be used in robust 24/7 environments. It can be ADA compliant and the Open Pluggable Specification (OPS) computer is seamlessly incorporated utilizing the expansion slot of the display, allowing for clean, hidden integration, while reducing the bill of materials needed for installation. The OPS-PCAF-WS device boasts a 1.6 GHz Dual Core Fusion processor and 32GB solid state drive. NEC Content Creation Services can help you break through the everyday clutter of messaging your audience encounters with high-quality, custom motion graphics that translate your business objectives into compelling calls-to-action that deliver results. You'll work with the digital content development team and receive a custom video file, completing your digital signage solution.

NEC X462S-PC-CRE Features

  • Bundled solution includes 46" X462S display and OPS-PCAF-WS single board computer for simple digital signage
  • LED backlighting technology improves power consumption and allows for a slimmer cabinet depth
  • 700cd/m2 max brightness combined with full HD resolution will capture the attention of the audience
  • Industrial-strength, premium-grade panel with additional thermal protection, internal temperature sensors with self-diagnostics and fan-based technology, allows for 24/7 operation
  • TileMatrix allows you to create video walls up to 10x10
  • NEC's Content Management Software (CMS), a SaaS web-based digital signage software, is available at no charge

NEC X462S-PC-CRE Specifications

Panel Technology
SPVA (P-DID)
Viewable Image Size
46"
Native Resolution
1920 x 1080
Pixel Pitch
0.53mm
Backlight Type
LED Edge-lit
Pixels Per Inch
47 at native resolution
Brightness (typical)
500cd/m2
Brightness (maximum)
700cd/m2
Contrast Ratio (typical)
3000:1
Viewing Angle
178deg. Vert., 178deg. Hor. (89U/89D/89L/89R) at CR>10
Refresh Rate
60Hz
Aspect Ratio
16:9
Active Screen Area
40.1x22.5" / 1018.5x571.5mm
Orientation
Landscape/Portrait
Displayable Colors
More than 16.7 million
Synch Range: Horizontal (Analog/Digital)
31.5-91.1 kHz
Synch Range: Vertical
50-85 Hz
Input Signal: Video
Analog RGB 0.7 Vp-p/75 Ohms
Input Signal: Sync
Separate sync: TTL Level (Positive/Negative)
Composite sync: TTL Level (Positive/Negative)
Composite sync on green: (0.3Vp-p negative 0.7Vp-p positive)
PC Signal Compatibility
Yes
Macintosh Compatibility
Yes
Input Terminals: Digital
DisplayPort, HDMI, DVI-D
Input Terminals: Analog
VGA 15-pin D-sub, BNC Composite
Input Terminals: Audio
Audio Mini-Jack, DisplayPort Audio, HDMI Audio
Input Terminals: External Control
RS-232C, LAN, DDC/CI
Output Terminals: Audio
Audio Mini-Jack, External Speaker Jack (2)
Output Terminals: Digital
DVI-D
Output Terminals: External Control
RS-232C
Power Consumption: On
210W
Power Consumption: ECO Mode Standby
<1W
Operating Temperature
41-104deg.F / 5-40deg.C
Operating Humidity
20-80%
Operating Altitude
9843' / 3000m
Storage Temperature
-4-140deg.F / -20-60deg.C
Storage Humidity
10-90%
Storage Altitude
40,000' / 1219.2m
VESA Hole Configuration
300x300mm (4-hole)
Bezel Width
Left/Right: 0.7"/0.7" (17.78mm/17.78mm)
Top/Bottom: 0.7"/0.7" (17.78mm/17.78mm)
Dimensions (WxHxD)
With stand: 41.6x24.1x13" / 1056.6x612.1x330.2mm
Without stand: 41.6x24.1x1.8" / 1056.6x612.14x45.72mm
Weight
With stand: 50.6lbs / 22.95kg
Without stand: 48lbs / 21.77kg
