NEC MultiSync X462UN-TMX4D 46" Ultra-Narrow 2x2 TileMatrix Video Wall Solution, 500 cd/m2 Brightness, 1366x768 Resolution, 3000:1 Contrast Ratio

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

Availability: Temporarily On Backorder Temporarily On Backorder - Although this item is temporarily on Backorder, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped. Notify me when in stock

See all shipping options

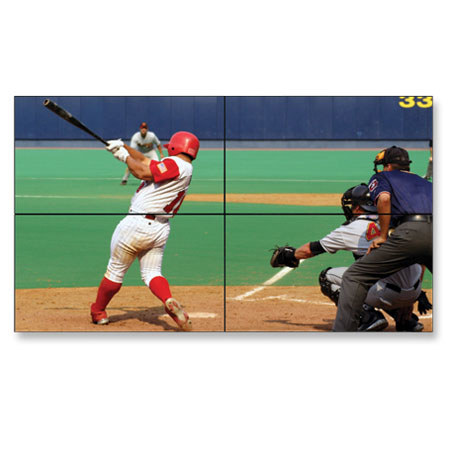

NEC X462UN-TMX4D: Picture 1 regular

About NEC X462UN-TMX4D

The NEC MultiSync X462UN-TMX4D 46" 2 x 2 TileMatrix Video Wall Solution integrates 4 professional-grade X462UN monitors to produce a virtually seamless video wall. Premium-grade panels and an ultra narrow bezel design combine with more than 30 advanced features to provide a dynamic, cost-effective solution to digital signage, command & control and information display.

Along with its bright, full HD images, the X462UN-TMX4D offers an exceptionally large number of inputs - including component, composite, HDMI, DVI, VGA and DisplayPort - allowing you a virtually unlimited range of video sources. With its exclusive TileMatrix and TileComp technologies, these monitors provide an All-in-One alternative that's easy to configure and even easier on the eyes.

NEC X462UN-TMX4D Features

  • Ultra-thin bezel design (7.3 mm screen-to-screen width) achieves a "barely there" effect
  • Overframe Bezel Kit completes the solution with a "finished and framed" look (two kits included)
  • EdgeComp technology provides for more even brightness distribution from center to edge during video wall configurations
  • TileMatrix technology is integrated into each NEC display within the bundle, allowing for easy manipulation of a single picture to 2 x 2 format
  • Copy function allows you to apply the settings from one display to all others
  • Chief 2 x 2 Video Wall Mounting Solution
  • Null modem cables used for daisy-chaining control signals included
  • Tripp Lite Isobar-6 surge suppressor features six outlets and prevents crashes, reboots and performance problems

NEC X462UN-TMX4D Specifications

Panel Technology
Viewable Image Size
Native Resolution
1366 x 768
Pixel Pitch
Pixels Per Inch
33@ native resolution
Brightness (typical)
Contrast Ratio (typical)
Viewing Angle
178deg. Vert., 178deg. Hor. (89U/89D/89L/89R) @ CR>10
Response Time(Gray to Gray)
Refresh Rate
Aspect Ratio
Active Screen Area
40.1 x 22.5 in. / 1018.4 x 572.5mm
Displayable Colors
More than 16.7 million
Synchronization Range
Horizontal (Analog/Digital): 31.5-91.1 kHz
Vertical: 50-85 Hz
Input Signal
Video: Analog RGB 0.7 Vp-p/75 Ohms
Sync: Separate sync: TTL Level (Positive/Negative)
Composite sync: TTL Level (Positive/Negative)
Composite sync on green: (0.3Vp-p negative 0.7Vp-p positive)
PC Signal Compatibility
Macintosh Compatibility
Input Terminals
Digital: DisplayPort, HDMI, DVI-D
Analog: VGA 15-pin D-sub, 5 BNC (RGBHV, DVD/HD or Video), RCA Composite, BNC Composite, RCA (Y, Cb/Pb, Cr/Pr) Component, S-Video
Audio: RCA Audio (2), Stereo Mini-Jack, HDMI Audio
External Control: RS-232C, Ethernet (RJ45), IR Remote, DDC/CI
Output Terminals
Analog: 5 BNC (RGBHV), BNC Composite
Audio: RCA Audio, External Speaker Jack (2)
External Control: RS-232C, IR Remote
Power Consumption On
ECO Mode Standby
VESA Hole Configuration
300 x 300mm (4-hole)
Operating Temperature
41-104deg.F / 5-40deg.C
Operating Humidity
Operating Altitude
9843 ft. / 3000m
Storage Temperature
-4-140deg.F / -20-60deg.C
Storage Humidity
Storage Altitude
40,000 ft. / 12,192m
Bezel Width (Left/Right, Top/Bottom)
0.2 in./0.1 in., 0.2 in./0.1 in.; 4.6mm/2.7mm, 4.6mm/2.7mm
Dimensions (W x H x D)
With stand: 40.4 x 24.6 x 13.8 in. / 1026.1 x 624.8 x 350.5mm
Without stand: 40.4 x 22.8 x 5 in. / 1026.1 x 579.1 x 127mm
With stand: 68.8 lbs. / 31.2 kg
Without stand: 64.6 lbs. / 29.3 kg
