NEC

NEC X552S-PC-CRE 55" LED Digital Signage with Content Creation Bundle, 16:9 Aspect Ratio, 500cd/m2, 3000:1 Contrast Ratio, 1920x1080, HDMI/DVI-D/VGA

SKU: NCX552SPCCRE MFR: X552S-PC-CRE
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$4,499.00 Special Price Available
Free Shipping
Qty:
Add to Wishlist

About the NEC X552S-PC-CRE

The NEC Digital Signage/Content Creation Solutions provide all of the necessary components for those in need of professional-grade digital signage in a comprehensive bundle. The NEC X552S-PC-CRE includes an LED 55" NEC X552S display, a single board computer to source digital signage content, a thin-depth wall mount kit, Ultrablok surge suppressor, complimentary content management software (CMS) and a voucher good for two hours toward NEC Content Creation Services.

The LED backlighting technology in the 55" X552S full-HD display allows for a super-slim depth of 1.7" and low power consumption. The premium industrial-grade panel with internal temperature sensors and integrated cooling fans allow it to be used in robust 24/7 environments. It can be ADA compliant and the Open Pluggable Specification (OPS) computer is seamlessly incorporated utilizing the expansion slot of the display, allowing for clean, hidden integration, while reducing the bill of materials needed for installation. The OPS-PCAF-WS device boasts a 1.6 GHz Dual Core Fusion processor and 32GB solid state drive. NEC's Content Creation Services can help you break through the everyday clutter of messaging your audience encounters with high-quality, custom motion graphics that translate your business objectives into compelling calls-to-action that deliver results. You'll work with the digital content development team and receive a custom video file, completing your digital signage solution.

NEC X552S-PC-CRE Includes

  • NEC X552S-PC-CRE 55" LED Digital Signage
  • X552S Display

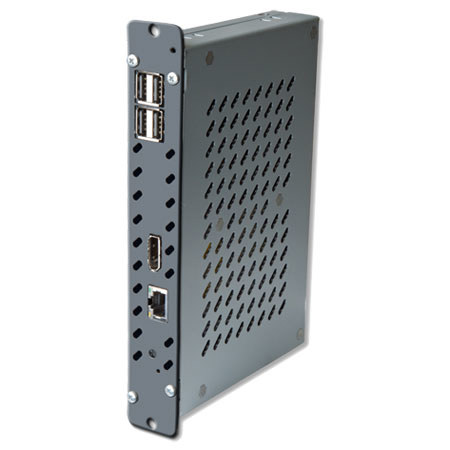

  • OPS single board computer (OPS-PCAF-WS)
  • Wall Mount Kit (WMK-4655S)
  • Ultrablok Surge Suppressor
  • (2) Hours NEC Content Creation Services (voucher)
  • NEC Content Management Software (CMS)
  • Power Cord
  • DVI-D Cable (1.8m)
  • Wireless Remote Control
  • Batteries
  • Main Switch Cover
  • CD-ROM (User Manual)
  • Clamp
  • Screws
  • NEC 3 Year Parts & Labor Limited Warranty

NEC X552S-PC-CRE Features

  • 55" LED LCD Display bundled with OPS-PCAF-WS single board computer, wall mount, surge suppressor, Content Management Software and NEC Content Creation Services
  • LED backlighting technology reduces power consumption and allows for a slimmer cabinet depth
  • Professional-grade LCD panel and components with additional thermal protection, internal temperature sensors with self-diagnostics and fan-based technology, allows for 24/7 operation
  • Full 1080P High-definition resolution provides stunning detail
  • Ethernet and RS-232 Control and Communication allows for ease in remote monitoring
  • NEC's Content Management Software (CMS), a SaaS web-based digital signage software, is available at no charge
  • Ultrablok direct plug-in ISOBAR surge suppressor features two outlets, an all-metal housing and 1410 joule rating
  • Advanced thermal capabilities
  • Sealed panel design
  • Thin bezel
  • TileMatrix (10x10)
  • TileComp
  • Separate group/Monitor ID function
  • Ethernet Control and Communication
  • RS-232 Control and Communication
  • Landscape/portrait capable
  • Carbon footprint meter
  • Plug and Play (DDC/CI, DDC2B)
  • Scheduler (w/ real-time clock)
  • Sharpness/softness adjustment
  • Screen saver function
  • Ambient light sensor
  • 6-axis color adjustment
  • Metal rear cabinet
  • POP

NEC X552S-PC-CRE Specifications

Panel Technology SPVA (P-DID)
Viewable Image Size 55"
Native Resolution 1920 x 1080
Pixel Pitch 0.63mm
Backlight Type LED Edge-lit
Pixels Per Inch 47 at native resolution
Brightness (typical) 500cd/m2
Brightness (maximum) 700cd/m2
Contrast Ratio (typical) 3000:1
Viewing Angle 178deg. Vert., 178deg. Hor. (89U/89D/89L/89R) at CR>10
Refresh Rate 60Hz
Aspect Ratio 16:9
Active Screen Area 47.6x26.8" / 1209.04x680.7mm
Orientation Landscape/Portrait
Displayable Colors More than 16.7 million
Synch Range: Horizontal (Analog/Digital) 31.5-91.1 kHz
Synch Range: Vertical 50-85 Hz
Input Signal: Video Analog RGB 0.7 Vp-p/75 Ohms
Input Signal: Sync Separate sync: TTL Level (Positive/Negative)
Composite sync: TTL Level (Positive/Negative)
Composite sync on green: (0.3Vp-p negative 0.7Vp-p positive)
PC Signal Compatibility Yes
Macintosh Compatibility Yes
Input Terminals: Digital DisplayPort, HDMI, DVI-D
Input Terminals: Analog VGA 15-pin D-sub, BNC Composite
Input Terminals: Audio Audio Mini-Jack, DisplayPort Audio, HDMI Audio
Input Terminals: External Control RS-232C, LAN, DDC/CI
Output Terminals: Audio Audio Mini-Jack, External Speaker Jack (2)
Output Terminals: Digital DVI-D
Output Terminals: External Control RS-232C
Power Consumption: On 235W
Power Consumption: ECO Mode Standby <1W
Operating Temperature 41-104deg.F / 5-40deg.C
Operating Humidity 20-80%
Operating Altitude 9843' / 3000m
Storage Temperature -4-140deg.F / -20-60deg.C
Storage Humidity 10-90%
Storage Altitude 40,000' / 1219.2m
VESA Hole Configuration 300x300mm
Bezel Width Left/Right: 0.7"/0.7" (17.78mm/17.78mm)
Top/Bottom: 0.7"/0.7" (17.78mm/17.78mm)
Dimensions (WxHxD) With stand: 49.2x28.5x15.7" / 1249.68x723.9x398.7mm
Without stand: 49.2x28.5x1.8" / 1249.7x723.9x45.72mm
Weight With stand: 57.3lbs / 26kg
Without stand: 55.1lbs / 25kg
