Newcon Optik NVS 14 Night Vision Gen 3 Monocular, 1.0x Magnification, Manual Gain Control

Newcon Optik
SKU: NENVS143XT MFR: NVS 14-3XT

About Newcon Optik

The Newcon Optik NVS 14-3XT night vision monocular have been proven in deployments in conflict zones and by peacekeepers around the world. Both models contain advanced Gen 3 image intensifier tubes, with minimum, exportable FOM >1600. New for 2013, this model is available in auto-gated configurations and both still feature manual gain control.

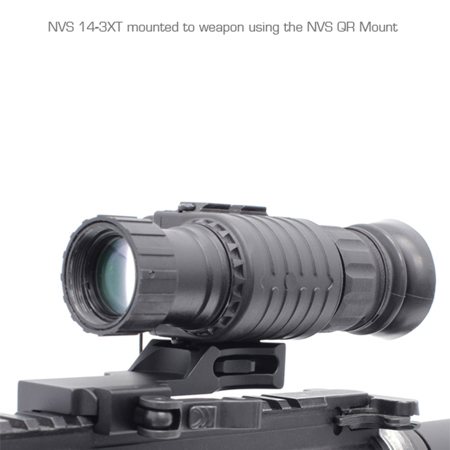

The NVS 14 series monoculars are among the smallest and lightest products of their kind. Each model can be handheld, mounted on a weapon, head or helmet. Optional lens attachments turn either model into a 3x or 5x night vision sight.

Capable of operating for extended periods on either a single AA or CR123 battery and delivered with a built-in auto off function, the NVS 14-3XTis packed with industry-leading features.

Newcon Optik Features

  • Integral IR illuminator for total darkness conditions
  • Waterproof construction - submersible to 1.0 m for 30 minutes
  • Third Generation XT Intensifier Tube: Resolution: 57-64 lp/mm: Third generation intensifiers last longer and deliver brighter images with greater detail and less distortion than previous generations of night vision technology
  • Export of this product outside of the United States of America is not allowed and is controlled by the US Department of State

Newcon Optik Specifications

Intensifier Tube
3rd Generation
Magnification
1.0x
Linear Field of View
2100' at 1000 yd / 697 m at 1000 m
Minimum Focus Distance
10.0" / 25.0 cm
Eye Relief
1.2" / 3.0 cm
Dioptric Correction
±5
Interpupillary Adjustment
Not applicable
Lens System
27.5mm f/1.17 Objective
Infrared Illuminator
Yes
Battery / Runtime
1 "AA": >40 hr w/o IR - >20 hr w/ IR
1 CR123A: >80 hr w/o IR - >40 hr w/ IR
Weatherproofing
Waterproof - 30 minutes at 1.0 m
Temperature Ranges
Operating: -58 to 131deg.F / -50 to 55deg.C
Dimensions
4.5x1.7x2.4" / 11.43x4.31x6.09 cm
Weight
0.66 lb / 0.29 kg
