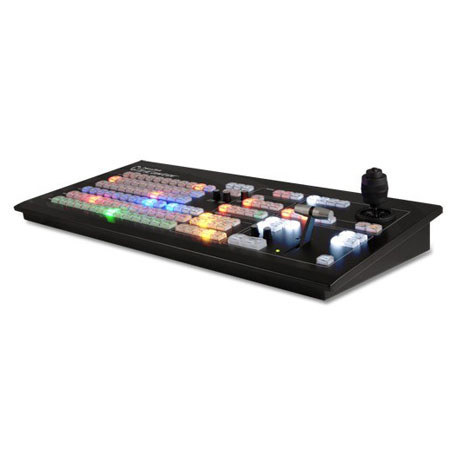

NewTek TriCaster 450CS Control Surface

SKU: NETC450CSF MFR: CS400500-0101
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

Free Shipping

Add to Wishlist In Stock

Protect your investment

About the NewTek 450CS Control Surface

NewTek TriCaster 450 CS Control Surface is customized to work perfectly with the TriCaster 450 series, matching every available function with its purpose-built layout - and operates with TriCaster 850, TriCaster 850 EXTREME and TriCaster 300 using the latest software updates. You have your live production controls and an intuitive layout at your fingertips. Keep your eyes on the action and your hands on the controls. Make decisions on the fly. Be confident.

NewTek 450CS Control Surface Features

  • Intuitive Control Layout allows the TriCaster 450 operator to have physical control of all sources. Back-lit buttons, twist knobs, a premium T-bar and three-axis joystick provide a hands-on connection to the functions and effects available from the TriCaster 450 interface
  • Virtual Input Rows deliver the ability to create complex switcher effects and assign them as switcher channels, including live virtual sets, picture-in-picture elements and more
  • Utility Row offers a simple way to assign video streams to TriCaster's auxiliary video output, downstream key elements and more
  • Utility Bus Delegate provides the ability to designate the switcher layer assigned to the Utility Row, offering added flexibility for live production
  • Live Virtual Set Controls deliver the zoom levels for camera shots within TriCaster virtual sets (using NewTek LiveSet technology) and execute animated zooms at variable speeds with the press of a button
  • Media Player Controls provide immediate access to the four digital media players. Use the illuminated buttons to select from the DDRs, graphics store and sound player, cycle through presets and manage playback options
  • Positioner Controls include a three-axis joystick and back-lit buttons that allow position, full 3D rotation, scale and crop of sources, plus manual control of the virtual zoom and the ability to jog or shuttle the selected media player
  • Transition Controls allow transition from one multi-source composition to another, manually or automatically. Cycle through transition styles and speeds and then use the T-bar or illuminated buttons to view the desired source
  • One-Button Streaming allows use of Adobe Flash or Microsoft Windows Media to deliver a live stream directly to the Web
  • One-Button Recording captures content from a live production at full resolution, with a back-lit button that shows when the Record function is live

NewTek 450CS Control Surface Specifications

Compatibility TriCaster 450 series, TriCaster 850 series and TriCaster 300
Dimensions (W x H x D) 23.5" x 5" x 11.5" (59.6 x 12.7 x 29.2 cm)
