Novatron D1000 Pro 3 Head Convertable Kit, with D1000 ws Digital Readout, with 3 Fan Cooled Heads, Stands, Umbrellas & Wheeled Case.

SKU: NT68D10003FW

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

2016-12-20T03:35:36

Rated 5 out of 5

Up grading equipment

I found the info on NOVATRON to be very helpfull in selecting a unit. Ordering,paying and shipping was quick and easy.

WAYNE S.

Novatron D1000 Specifications

  • *1000 Watt Pack*

    Specifications:

  • Power (Watt Seconds)

    1000

  • Guide Number

    333 at 1000w-s (at 10'/ISO 100)

  • Recycling Time

    under 2.5secs at all settings

  • Power Range

    F/32+.1 at full

  • Power Distribution

    Discrete 1/10'th steps over 4-1/2 f-stops total range

  • Flash Head Outlets

    4

  • Voltage

    120 VAC 12amps

  • Weight & Size

    15 lbs 3 oz / 6-3/8" x 8 1/2" x 6-3/4"

  • *2103-FC Head*

    Specifications:

  • Maximum Power (Watt/Seconds)

    1500

  • Modeling Lamp Wattage

    250 Watt Halogen Lamp

  • Fan Cooled

    3-Way Switching Fan Cooling plug-in Flash Tube

  • Reflector

    Optional 2032 (6 1/2 ") Removable
    Optional 2034 16" Removable

  • Cable length

    25 foot

  • Weight

    3.2 lbs

  • UPC Code

    053661053403

23 Accessories for Novatron D1000 Pro 3 Head Convertable Kit, with D1000 ws Digital Readout, with 3 Fan Cooled Heads, Stands, Umbrellas & Wheeled Case.

  • All Accessories (23)
  • Lamps & Bulbs (3)
  • Reflectors (2)
  • Collapsible Reflectors (1)
  • Adapters & Mounts (1)
  • Power Pack Strobe Accessories (2)
  • Bags & Cases (1)
  • Umbrellas & Accessories (3)
  • Light Booms & Arms (1)
  • Umbrellas (1)
  • Power Pack Strobes (3)
  • Carts & Trolleys (1)
  • Studio/Still Life & Copy Equip (2)
  • Props & Special Effects (1)
  • Apple Boxes (1)

About Novatron D1000

FEATURED REVIEWS

Up grading equipment

By WAYNE S.

I found the info on NOVATRON to be very helpfull in selecting a unit. Ordering,paying and shipping was quick and easy.

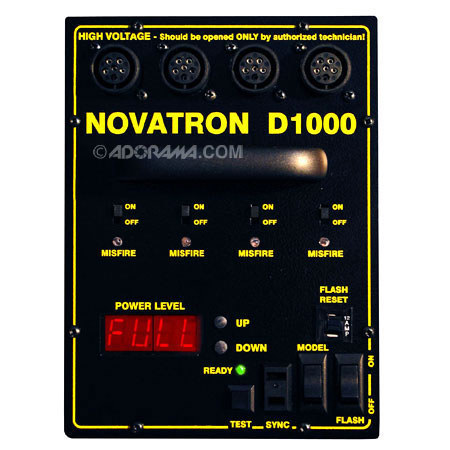

The 68-D1000-3FCW offers 1000 watt-seconds of power with Novatrons FULLY digital powerpack. The included D1000 power pack is fully microprocessor controlled and has an output which is variable in 1/10'th stop increments over a full 4 f-stop power range.

Output power is displayed on a 1/2 inch tall 4 digit LED display which is easily visible from many feet away in normal room light. The D1000 power pack also provides misfire alarm functions and supports all standard Novatron flashheads.

What sets the FC kits apart is that all three of the included flash heads are Novatrons top of the line model 2103-FC Convertible Heads. These fan-cooled heads have a built-in adapter ring that will accept either the #2034 (16 inch) or #2032 (6-1/2 inch) reflectors AND a large number of soft boxes and other light modifiers from many manufacturers.

Novatrons largest heavy duty case is included, equipped with casters and pull handle.

The D1000 is the first in a new generation of rugged and sophisticated all digital flash power packs from Novatron. The 1000 watt-seconds fan cooled pack, is fully microprocessor controlled and has an output which is variable in 1/10'th stop increments over its' entire 4 stop power range (double the range of our previous 1000 watt-sec units).

Output power is displayed on a 1/2 inch tall 4 digit LED display which is easily visible from many feet away under normal room lights. The D1000 power pack also provides misfire alarm functions and supports all standard Novatron flashheads. It is also sync voltage compatible with most current digital cameras on the market and has higher powered modeling lamp support.

These packs also have a second circuit breaker dedicated to the modeling lamps and are designated as Series II. This second breaker allows these units to handle up to 250 watt modeling lamps for fan-cooled flash heads (1000 watts total modeling lamp power per unit).

The 2103-FC is a 3-way switching convertible flashhead that contains the controls to independently ratio the flash and modeling lamp at full, -1 stop, or -2 stops. It comes equipped with an internal fan, which aids in cooling the electronics and the user replaceable F0008 plug-in flash tube.

Fan cooling extends the power handling capacity of this head to 1500 watt-seconds. It comes equipped with a glass encapsulated 250-watt quartz halogen modeling lamp, a 25-foot power cord, and a flash tube protector sleeve. This convertible flashhead accepts the optional 6-1/2" #2032 and 16" #2034 detachable reflectors and is ideal for use in softboxes.

Please note: At least one head on the pack needs to be at full power to prevent damage that is not covered under warranty. It is suggested that you always use the 2102-FC to prevent possible errors.

What's in the box:

  • 1 D1000 1000 w-s Digital Pack
  • 3 2103-FC 3-Way Convertible head
  • 2 7450W 45" Semisilver Umbrellas
  • 1 5003 3' Light Stand
  • 2 5014 10' Heavy Duty Stands
  • 1 MI-001 15' Sync Cord
  • 1 Wheeled Carry Case
  • 1 MI-003 AC Power Cord
