OConnor

OConnor Ultimate 2065 150mm Fluid Head - Bundle - with OConnor 60L Carbon Fiber Tripod, O-Box Deluxe Set, CFF-1 Cine Follow Focus One Kit

SKU: OC2065FHP15A MFR: C1236-0002 A
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$21,793.00
Free Shipping
Qty:

Add to Wishlist

About the OConnor 2065

The OConnor Ultimate 2065 Fluid Head Package (150 mm) is a fluid head package comprising of Ultimate 2065 Fluid Head (C1236-0004), a 150 mm ball base (08414) with a 150 mm tiedown (08417), a large European quick release (2575-120), a pan handle (2575-137) and a pan handle extension (2575-135).

Borrowing highly ergonomic design elements from its higher payload contemporaries, the Ultimate 2065 Package is ideally suited for cinematography. Lightweight at 22.6 lb (10.4 kg), the OConnor 150 mm Fluid Head Package sustains a heavy payload up to 71 lb (32.2 kg) with greater drag. Conveniently located controls (pan and tilt brakes) at camera operator's side (left side) of the platform enable ease of operation and rapid familiarity.

The platform also houses dual scales for counterbalance and sports 4 handle rosettes that allow left or right hand operation as well as mounting from the front or rear. An intelligently placed, soft hand-rest enhances the Ultimate 2065 Fluid Head's ergonomic design. A collapsible counterbalance crank handle on the platform coupled with a numerical display allows accurate and continual counterbalance adjustments, rendering this unit optimally suited to contemporary styles of cinematography where lighter cameras, larger lenses and requisite accessories are being constantly developed.

The Large European Quick Release (2575-120) is a single-touch Euro-style platform release lever that allows you to disengage the safety catch and open the lever effortlessly, providing high mobility to deal with location changes in the field. It is equipped with a 120 mm camera mounting plate, the lever is ideally suited for swift mounting and dismounting of large and heavy cameras.

The 150 mm Ball Base (08414) allows high mobility and is secured in place by the 150 mm tiedown (08417). Easy maneuverability is facilitated through the 12" pan handle (2575-137) that has an intelligently integrated 30-degree bend to facilitate swift and simple handling. Matching its 18 mm diameter is the 11.5" pan handle extension (2575-135) that provides increased motion flexibility.

OConnor 2065 Includes

  • OConnor C1236-0004 Ultimate 2065 Fluid Head
  • 2575-120 Euro Style Quick Release with 120mm Mounting Plate and Screws
  • 2575-137 12" Handle with 30 degree Bend
  • 2575-135 11.5" Handle Extension for 2575-137
  • 08414 150 mm Ball Base
  • 08417 150mm Tiedown for 150mm Ball Base
  • OConnor Warranty

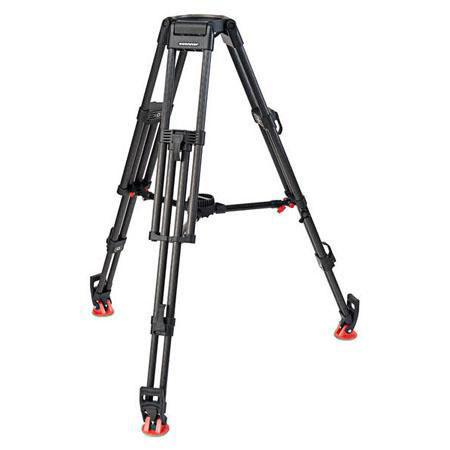

  • C1255-0011 OConnor 60L Super Lightweight Carbon Fiber Tripod System
  • C1243-0002 OConnor O-Box Deluxe Set: Includes, O-Box WM Set and Accessories
  • C1241-0001 OConnor CFF-1 Cine Follow Focus One Kit

OConnor 2065 Features

  • Ultimate 2065 Fluid Head: Highly ergonomic design based on similar heavy payload units
  • Ultimate 2065 Fluid Head: Lightweight at 22.9 lb (10.4 kg) and provides easy maneuverability
  • Ultimate 2065 Fluid Head: Sustains heavy payloads up to 71 lb (32.2 kg), thereby allowing a wide payload of cameras to be mounted
  • Ultimate 2065 Fluid Head: Convenient controls located on the operator side offer ease of use and familiarity
  • Ultimate 2065 Fluid Head: Twin platform scales allow simple and rapid counterbalance adjustments
  • Ultimate 2065 Fluid Head: Ergonomically designed comfortable hand-rest on the left side
  • Ultimate 2065 Fluid Head: Suited for current styles of cinematography involving lighter cameras, larger lenses and innovative accessories
  • European Quick Release (2575-120): Single-touch platform release lever allows easy unlatching of safety catch and unlocking the lever
  • European Quick Release (2575-120): Equipped with a 120 mm camera mounting plate
  • European Quick Release (2575-120): Ideally suited for swift mounting and dismounting of large and heavy cameras
  • 12" Pan Handle (2575-137): 4 handle rosettes on the platform enable any side operation and front/rear mounting
  • 12" Pan Handle (2575-137): Intelligently integrated 30 degree bend to facilitate swift and simple handling
  • 11.5" Pan Handle Extension (2575-135): Includes matching 18 mm diameter for use with the pan handle
  • 11.5" Pan Handle Extension (2575-135): Offers increased motion flexibility
  • 150 mm Ball Base (08414): Allows high mobility and is secured in place by the 150 mm tiedown (08417)

OConnor 2065 Specifications

Capacity At 4" 10.2cm): 89 lbs (40.4kg)At 6" (15.2cm): 71 lbs (32.2kg)At 8" (20.3cm): 58 lbs (26.3kg)
Handles 0deg. & 30deg.
Bases Mitchell, 150 mm, Sachtler/Vinten
Tilt +90deg. / -90deg.
Counterbalance Sinusoidal
Pan & Tilt Pan & Tilt Drag: Stepless
Platform Platform for 2065: OConnor Plate, 120mm Euro Plate, Panavision Dovetail Plate, Arriflex Dovetail Plate
Dimensions (H x W x D) 8.4 x 12.4 x 8.6" (21.3 x 31.5 x 21.8cm)
Weight 22.9 lbs (10.4kg)
