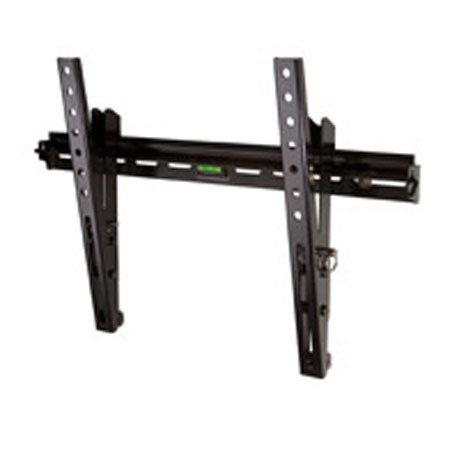

About the OmniMount OC100T

The OmniMount OC100T Tilt Mount for 23 - 52" TVs is a low-profile mounting solution for medium to thin profile TVs. The mount features a 1.7" profile that allows for easy connectivity and sufficient cooling. The mount is ideal for TVs with bottom-loading or side-loading connectors.

OmniMount OC100T Includes

  • OmniMount Wall Plate
  • 2 x Vertical Rail
  • Locking Bar
  • Bubble Level
  • 2 x Tilt Pin
  • Complete Hardware Kit
  • OmniMount 5 Years Warranty

OmniMount OC100T Features

  • Low profile offers sufficient room for cable connections and cooling while keeping TV close to the wall
  • Tilt TV forward to reduce glare or for overhead installations
  • Pinned tilt offers uniformity for panels mounted side-by-side
  • Ideal for TVs with bottom or side-loading connectors
  • Lift n' Lock feature offers easy, three step installation
  • Horizontal wall plate requires only two holes for quick installation
  • Wall plate has integrated level
  • Small footprint provides ample room for power and A/V cutouts behind TV
  • Vertical rails fit VESA and non-VESA TVs
  • Vertical rails slide on wall plate for minor left/right repositioning
  • Locking bar secures TV to mount

OmniMount OC100T Specifications

Compatible with 23 to 52" TVs
Tilt 0deg., +5deg., +10deg.
Mounting Profile 1.9" / 48.26 mm
Universal & VESA Compliant 100x100mm to 400x300mm
Mounting Double-stud or solid wall
Maximum Load Capacity 100 lbs / 45.4 kg
Dimensions (WxHxD) Normal: 20.80x13.80x1.7" (52.83x35.05x4.5cm)
Tilted: 20.80x13.80x3.3" (52.83x35.05x8.5cm)
