Orion 4 Channel Control Module for the Dew Zapper Pro

See all Orion items
Closeout

Our Price

$143.99
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Orion

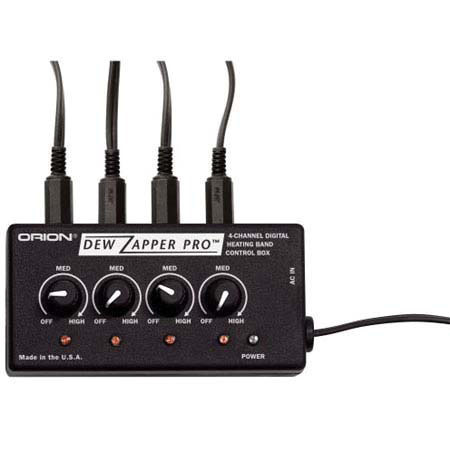

The Orion 4-Channel Control Module s part of the larger Dew Zapper Pro 4-Channel Dew Prevention System. With Dew Zapper Pro you'll never again have to quit an observing or imaging session because dew clouded up your optics. The advanced dew prevention system powers up to four individual heating bands independently. So you can keep all of your optics - main telescope, finder scope, guide scope, eyepieces, or other optical accessories - bone dry in high humidity or dew-prone weather. Five different heating band sizes are available.

The Dew Zapper Pro control module is powered by a 12-volt field battery such as the Dynamo Pro and comes with a car lighter-style DC plug on a 12' cable. The microprocessor-controlled circuitry delivers pulse-width modulation for stable, precise temperature control. Each of the four heater outputs has its own temperature control knob with a full range of adjustment from 0% to 100% and each has a red LED power indicator. Set the output of each channel to provide just the right amount of heating for the prevailing conditions.

The heating bands are highly power efficient, drawing only 0.25 amps (for #3518) to 2.5 amps (for #3522) at maximum output. A 10-amp fuse in the control module prevents any mishaps from electrical surges or reversed polarity. And unlike competing dew-prevention systems, the Dew Zapper Pro's heating bands have right-angle cable connections to reduce cable strain and provide a tighter fit. Hook-and-loop fasteners hold the bands snugly around your instrument and accessories.

Each heating band comes with a 6'-long cable that plugs into the control module via an RCA-type connector. Removable caps are included to protect any unused ports from exposure to the elements. The control module also has an auxiliary 12-volt port, which allows you to power any 12-volt accessory directly from the module.

Orion Features

  • Advanced 12-volt DC dew prevention and elimination system powers up to four heating bands
  • Microprocessor-controlled circuitry delivers pulse-width modulation for stable, precise temperature control
  • Each heater output has its own temperature control knob with adjustment from 0% to 100%
  • Heating bands are power-efficient, drawing only 0.25 amps to 2.8 amps at maximum output

Orion Specifications

Voltage
12V DC
Circuitry
Microprocessor-controlled
Temperature Control Knob Adjustment
From 0% to 100%
Power required
0.25 amps to 2.8 amps at maximum output
Warranty
Orion 1 year limited warranty
